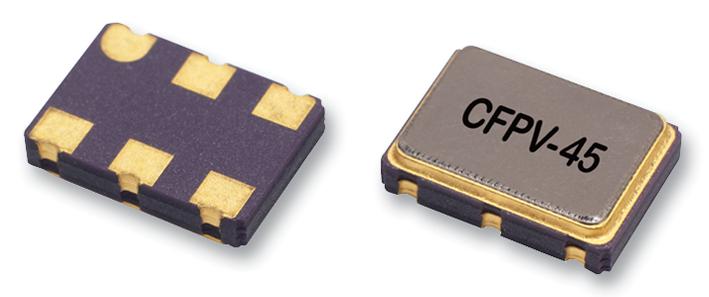

IQD-Frequency-Products LFVCXO025892 Voltage Controlled Crystal Oscillator
The LFVCXO025892 is a high-precision voltage-controlled crystal oscillator with a frequency range of 1.5MHz to 80.0MHz, optimized for stable timing applications. It features a hermetically sealed ceramic package with a seam-sealed metal lid, ensuring excellent environmental resistance. Key parameters include a frequency stability of ±100ppm, pullability of ±100ppm, and a supply voltage of 3.3V. Operating across temperatures from -40°C to 85°C, it offers low phase jitter of 20ps, making it suitable for communication, instrumentation, and RF systems requiring precise frequency control.
IQD-Frequency-Products LFVCXO025892 Voltage Controlled Crystal Oscillator Specifications:
- Frequency Range: 1.5MHz to 80.0MHz
- Frequency Stability: ±100ppm
- Pulling Range: ±100ppm min APR
- Supply Voltage: 3.3V ±0.3V
- Output Type: HCMOS, 15pF Max
- Output Compatibility: Logic '1' (>2.5V), Logic '0' (<0.5V)
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: MIL-STD-202, Method 213, Condition E
- Vibration Resistance: MIL-STD-883, Method 2007, Condition A
- Phase Jitter: Max 20ps @ 1σ
- Linearity: Positive < +10%
- Control Voltage: 1.65V ±1.65V
- Modulation Bandwidth: >10kHz @ -3dB
- Line Impedance: ≥50kΩ
- Sealed Ceramic Package with Metal Lid, Hermetically Sealed
Buy the IQD Series CFPV Voltage Controlled Crystal Oscillator: LFVCXO025892
Purchase the IQD Series CFPV Voltage Controlled Crystal Oscillator online today to ensure your projects benefit from high stability, low jitter, and reliable performance. With a frequency range of 1.5MHz to 80MHz, hermetically sealed ceramic packaging, and stable operation over -40°C to 85°C, this oscillator is ideal for communication systems, instrumentation, and RF applications requiring precise timing. Secure fast delivery and expert support—order now for dependable quality and optimal device performance.
Order your IQD Series CFPV LFVCXO025892 today and give your projects the dependable, precise timing control they deserve.
Frequently Asked Questions
Where can I buy IQD-Frequency-Products LFVCXO025892?
You can click on the BUY or RFQ button to purchase LFVCXO025892 from an authorized IQD-Frequency-Products distributor.
How do I troubleshoot issues or seek technical support for part LFVCXO025892?
You can download the LFVCXO025892 datasheet or visit the IQD-Frequency-Products website for support.
Who is the manufacturer of LFVCXO025892?
IQD-Frequency-Products
