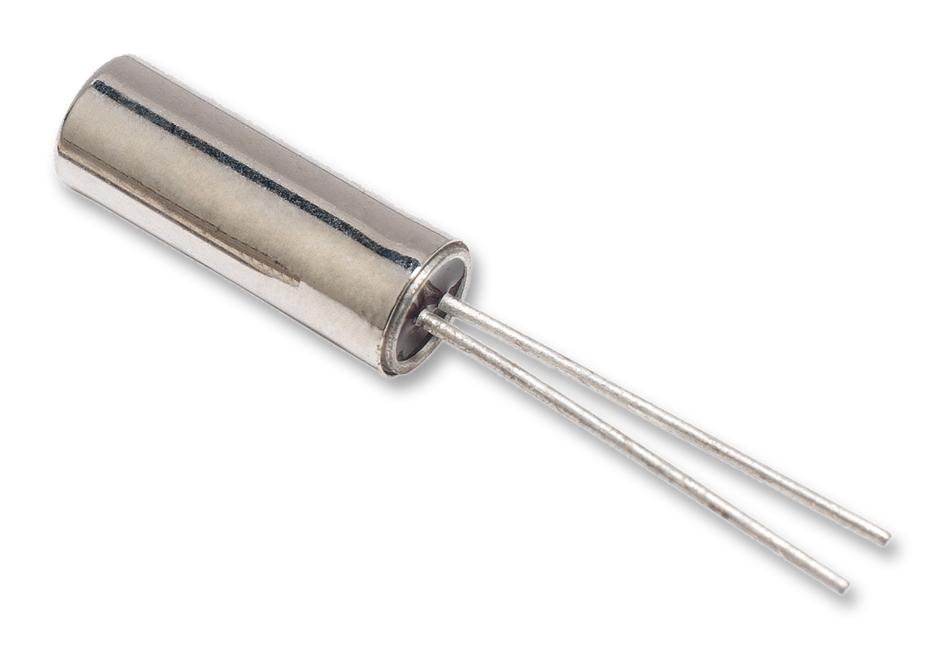

IQD FREQUENCY PRODUCTS LFXTAL002996 Real-Time Clock Crystal
This is a leaded crystal suitable for real-time clock applications, enclosed in a press-sealed metal can measuring 3 x 8mm. It operates at 32.7680kHz with a frequency tolerance of ±15ppm at 25°C. The crystal features a load capacitance of 12.50pF, shunt capacitance of 1.6pF, and a maximum drive level of 1.0μW. Designed for operational temperature range from -10°C to 60°C and storage from -40°C to 85°C, it complies with RoHS and REACH standards, making it reliable for precise timing needs in electronic devices.
IQD FREQUENCY PRODUCTS LFXTAL002996 Real-Time Clock Crystal Specifications:
- Frequency: 32.7680kHz
- Frequency Tolerance: ±15ppm at 25°C
- Temperature Range: -10°C to 60°C operating, -40°C to 85°C storage
- Package: Press sealed metal can, 3 x 8mm
- Load Capacitance: 12.50pF
- Shunt Capacitance: 1.6pF typical
- Drive Level: 1.0μW max
- Overtone Order: Fundamental
- Ageing: +5ppm max per year
- RoHS Status: Compliant
- REACH Status: Compliant
- Drop Test: 75cm onto hard wooden surface (3 times)
Buy the IQD Series WATCH-3X8 Crystal: LFXTAL002996
Purchase the IQD Series WATCH-3X8 crystal LFXTAL002996 online now to guarantee reliable, highly accurate timing for your devices. This 32.768kHz crystal, enclosed in a press-sealed metal can, meets RoHS and REACH standards, ensuring eco-friendly and safe operation. Its stable frequency tolerance of ±15ppm at 25°C, combined with a temperature range of -10°C to 60°C for operation and -40°C to 85°C for storage, makes it ideal for precision clock applications. Easy to install and suitable for various electronic projects, order today for fast delivery and quality assurance.
Order your IQD Series WATCH-3X8 crystal LFXTAL002996 today and ensure precise timekeeping for your electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL002996?
You can click on the BUY or RFQ button to purchase LFXTAL002996 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL002996?
You can download the LFXTAL002996 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL002996?
IQD FREQUENCY PRODUCTS
