IQD FREQUENCY PRODUCTS LFXTAL003044 Quartz Crystal

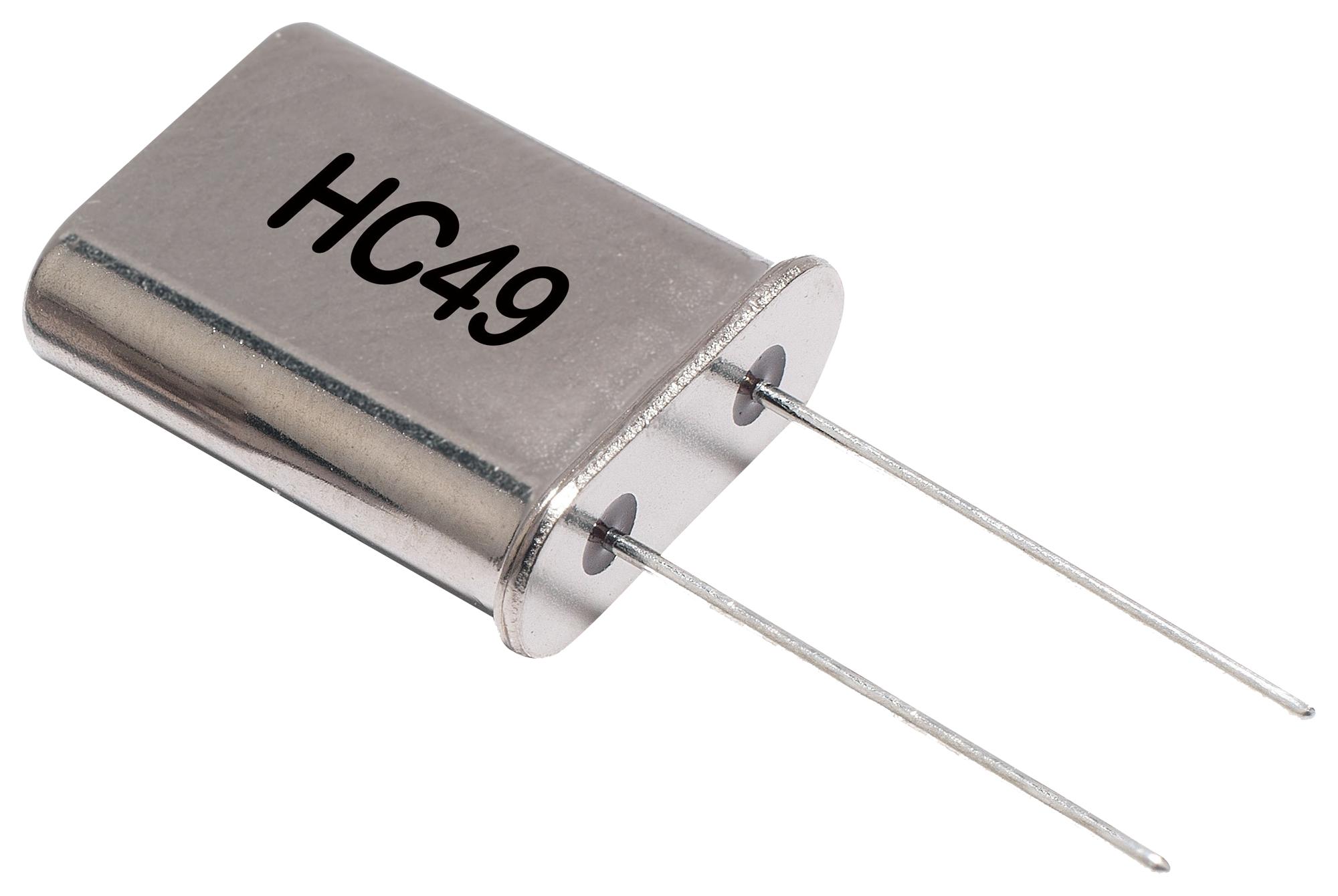

The HC49 quartz crystal is a industry-standard leaded package component, hermetically sealed and resistant welded for reliability in various electronic applications. It offers a wide frequency range from 1.8432 MHz to 270.0 MHz with options for additional grounding and height specifications. The crystal exhibits stable frequency parameters, low drive level, and operates across extended temperature ranges from -55°C to +125°C. Suitable for precision timing and oscillator circuits, it is RoHS and REACH compliant, with various packaging options including bulk and reel. Ideal for manufacturing and electronic control systems requiring high stability and durability.
IQD FREQUENCY PRODUCTS LFXTAL003044 Quartz Crystal Specifications:
- Frequency Range: 1.8432 MHz to 270.0 MHz
- Frequency Tolerance: +5.00 ppm to +100.00 ppm
- Frequency Stability: Typical ±3 ppm per year
- Operating Temperature Range: -55°C to 125°C
- Lead Package: Industry standard hermetically sealed glass to metal
- Mounting Options: 3L, TW, T (height 11.1mm), sleeve, or top wire
- Electrical Parameters: Load Capacitance 10.0 pF to 75.0 pF, Max Shunt Capacitance 7 pF, Drive Level Max mW
- Shock Resistance: 981 m/s² for 6 ms, vibration resistance 10Hz-60Hz/98.1 m/s², 60Hz-500Hz
- Storage Temperature: -55°C to 125°C, RoHS and REACH compliant.
- Outline Dimensions: 10.2 mm length, various height options, pin connections for crystal and ground.
Buy the IQD Frequency HC49 – Reliable Quartz Crystal for Industrial Applications
Purchase IQD Frequency HC49 quartz crystals online for high stability, wide frequency range, and robust hermetic sealing. Perfect for oscillators, timing circuits, and industrial automation. These crystals meet international standards like RoHS and REACH, ensuring environmental compliance. Available in various packages including bulk, reel, and tape, suitable for manufacturing and repair needs. Their extended temperature range from -55°C to 125°C and shock and vibration resistance make them ideal for demanding industrial applications. Buy now for reliable performance in your electronic projects.
Get IQD Frequency HC49 crystal today—designed for precision in oscillators and long-lasting durability in industrial environments.
