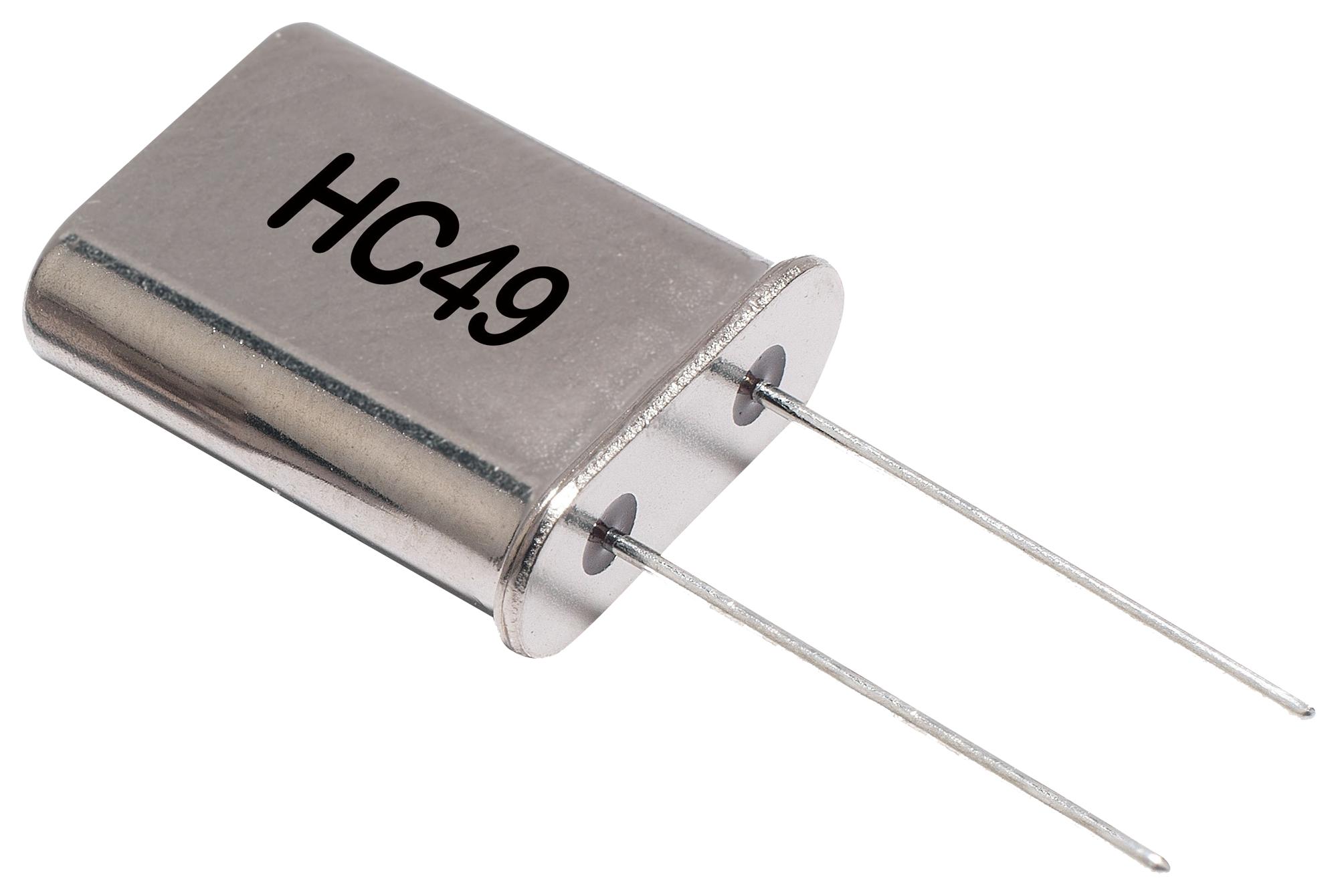

IQD FREQUENCY PRODUCTS LFXTAL003056 Quartz Crystal
The HC49 quartz crystal is an industry-standard leaded package hermetically sealed in an inert atmosphere with glass-to-metal seals. Available variants include center-mounted and top-mounted ground leads, with various height options. It supports frequencies from 1.8432MHz to 270MHz, with stability up to +200ppm. Suitable for applications requiring precise oscillation, its electrical parameters include load capacitance between 10.0pF and 75.0pF and drive levels up to a maximum of mW. Operating temperature ranges from -55°C to 125°C, making it versatile in industrial environments.
IQD FREQUENCY PRODUCTS LFXTAL003056 Quartz Crystal Specifications:
- Frequency Range: 1.8432MHz to 270.0MHz
- Frequency Tolerance: +5.00ppm to +200.00ppm
- Frequency Stability: typical ±3ppm per year
- Load Capacitance: 10.0pF to 75.0pF
- Shunt Capacitance: max 7pF
- Drive Level: mW max
- Operating Temperature Range: -55°C to 125°C
- Shock Resistance: 981m/s², 6ms, three directions
- Vibration Resistance: 10Hz-60Hz, 0.75mm, 60Hz-500Hz, 98.1m/s²
- Storage Temperature Range: -55°C to 125°C
- Outline Dimensions: Length ~10.2mm, width varies with variants
- Certifications: RoHS, REACh Compliant
- MSL Rating: Not Applicable
Buy the IQDFrequency HC49 – Reliable Quartz Crystal for Industrial Applications
Secure your IQDFrequency HC49 quartz crystal online today and benefit from industry-standard hermetically sealed package, frequency stability up to +200ppm, and wide operating temperature range. Perfect for oscillators in industrial environments, its high-quality construction guarantees durability and reliable performance. Whether you need frequencies from 1.8MHz up to 270MHz, the HC49 series offers versatile solutions. Purchase now to enhance your electronic and industrial applications with a trusted component that assures precision and longevity in demanding conditions.
Order your IQDFrequency HC49 quartz crystal today and ensure precise oscillation performance for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003056?
You can click on the BUY or RFQ button to purchase LFXTAL003056 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003056?
You can download the LFXTAL003056 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003056?
IQD FREQUENCY PRODUCTS
