IQD FREQUENCY PRODUCTS LFXTAL003058 Quartz Crystal Oscillator

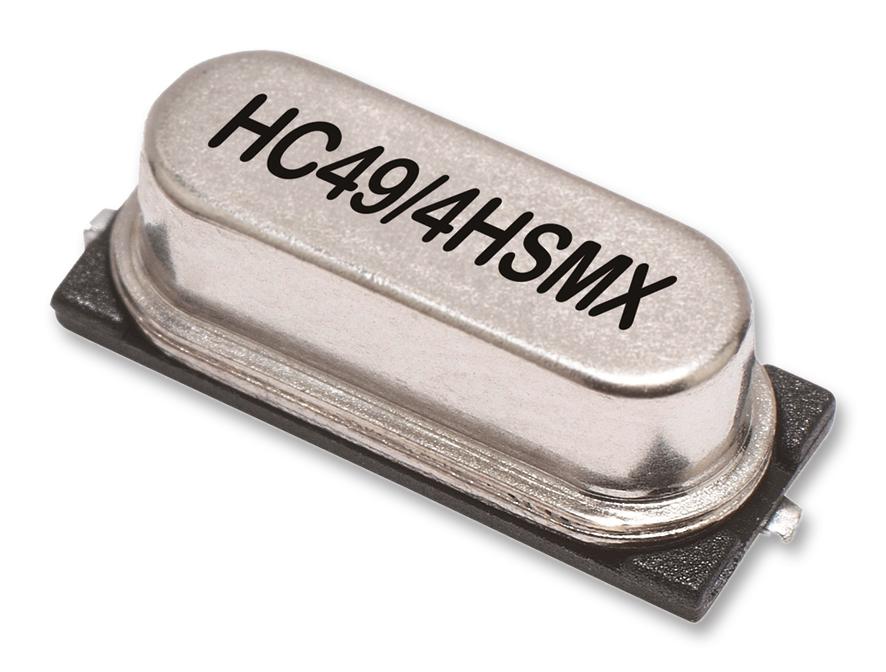

The HC49/4HSMX quartz crystal offers industry-standard SMD design, hermetically sealed in inert atmosphere with glass-to-metal seals, ensuring durability and high performance. It features a frequency of 3.579545MHz with a tolerance of ±30ppm and excellent stability over temperature ranges from -10°C to 60°C. The device is suitable for precise timing applications, with a load capacitance of 16pF, drive level of 500μW, and ESR up to 300Ω. Packaged in tape & reel, it is RoHS and REACh compliant, making it ideal for modern electronic assemblies requiring reliable oscillators.
IQD FREQUENCY PRODUCTS LFXTAL003058 Quartz Crystal Oscillator Specifications:
- Frequency: 3.579545MHz
- Frequency Tolerance: +30.00ppm @ 25°C ±2°C
- Frequency Stability: +50.00ppm over temperature
- Temperature Range: -10°C to 60°C
- Operating Temperature Range: -55°C to 125°C
- Load Capacitance: 16.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500μW max
- ESR: 300Ω max
- Package Height Options: HC4S/4HSMX 4.3mm max, HC49/3.5HSMX 3.7mm max, HC49/3HSMX 3.1mm max, HC49/2.5HSMX 2.85mm max
- Packaging: Reel, 1,000 pcs, tape & reel in accordance with IEC-481-D
- Compliance: RoHS, REACh, not applicable MSL rating
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 perpendicular planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30 mins per plane
- Storage Temperature: -55°C to 125°C
- Outline Size: 11.4±0.2mm
- Solder Pad Layout: Provided in documentation
Buy the IQD Series Quartz HC49/4HSMX: LFXTAL003058
Purchase the IQD HC49/4HSMX quartz crystal online today for your electronic projects and manufacturing. This high-quality SMD crystal offers excellent stability, hermetic sealing, and compliance with RoHS and REACh standards. Its compact size and reliable frequency of 3.579545MHz make it suitable for precise timing in various applications. Packaged in tape & reel for easy integration, this oscillator ensures long-term durability and consistent performance in demanding environments. Order now to enhance your electronic assemblies with trusted stability and quality.
Get IQD HC49/4HSMX quartz crystal today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003058?
You can click on the BUY or RFQ button to purchase LFXTAL003058 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003058?
You can download the LFXTAL003058 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003058?
IQD FREQUENCY PRODUCTS
