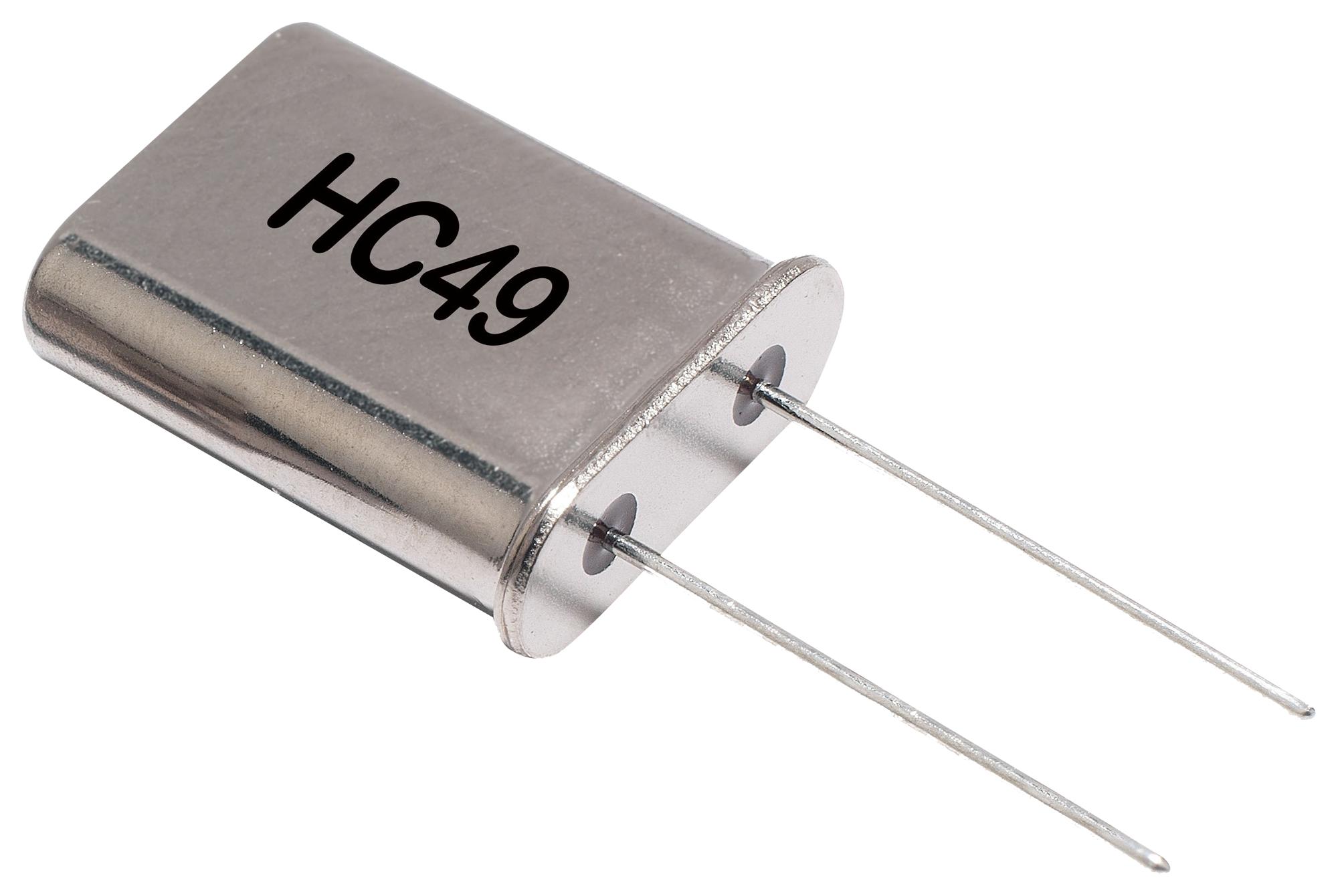

IQD FREQUENCY PRODUCTS LFXTAL003068 Quartz Crystal
This quartz crystal features an industry-standard HC49 leaded package, hermetically sealed in an inert atmosphere with a glass to metal seal. Variants include additional ground legs and truncated height options. Suitable for oscillator circuits, it offers a frequency range from 1.8432MHz to 270MHz with precise tolerance and stability over a wide temperature range. Designed for reliable performance in various electronic applications, it complies with RoHS and REACh standards. Its typical dimensions are 10.2mm in outline with different configurations for versatile usage in industrial electronics.
IQD FREQUENCY PRODUCTS LFXTAL003068 Quartz Crystal Specifications:
- Outline: 10.2mm length, standard or variant configurations including 3L, TW, T, and Sleeve options
- Frequency Range: 1.8432MHz to 270MHz, fundamental and overtone modes
- Frequency Tolerance: from +5.00ppm to +200.00ppm, typical aging ±3ppm/year
- Electrical Parameters: Load Capacitance 10.0pF to 75.0pF, Shunt Capacitance max 7pF, Drive Level maximum mW
- Operating Temperature Ranges: from -55°C to +125°C depending on model
- Environmental Resistance: Shock resistance 981m/s², vibration 98.1m/s², storage temp -55°C to 125°C
- Certifications: RoHS and REACh compliant, MSL Rating: Not applicable
- Impedance: ESR varies with frequency, typically 35 to 150 Ohms depending on model
- Package: Hermetically sealed glass-to-metal, leaded HC49 with optional variants including ground legs
- Application: Oscillator circuits, industrial electronics, communication systems, general electronic devices
Buy the Brand HC49 – Reliable Quartz Crystal for Industrial Applications
Purchase the high-precision quartz crystal easily online and enhance your electronic projects. Designed for reliability and consistent performance across temperatures, these crystals are suitable for oscillators, communication devices, and industrial electronics. With various variants available, including ground leg and truncated options, they meet strict industry standards for quality and environmental compliance. Simplify your procurement process by ordering online today and ensure your projects benefit from dependable frequency accuracy, longevity, and superior performance in all operating conditions.
Order your Brand HC49 quartz crystal today and ensure precise frequency stability for industrial and electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003068?
You can click on the BUY or RFQ button to purchase LFXTAL003068 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003068?
You can download the LFXTAL003068 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003068?
IQD FREQUENCY PRODUCTS
