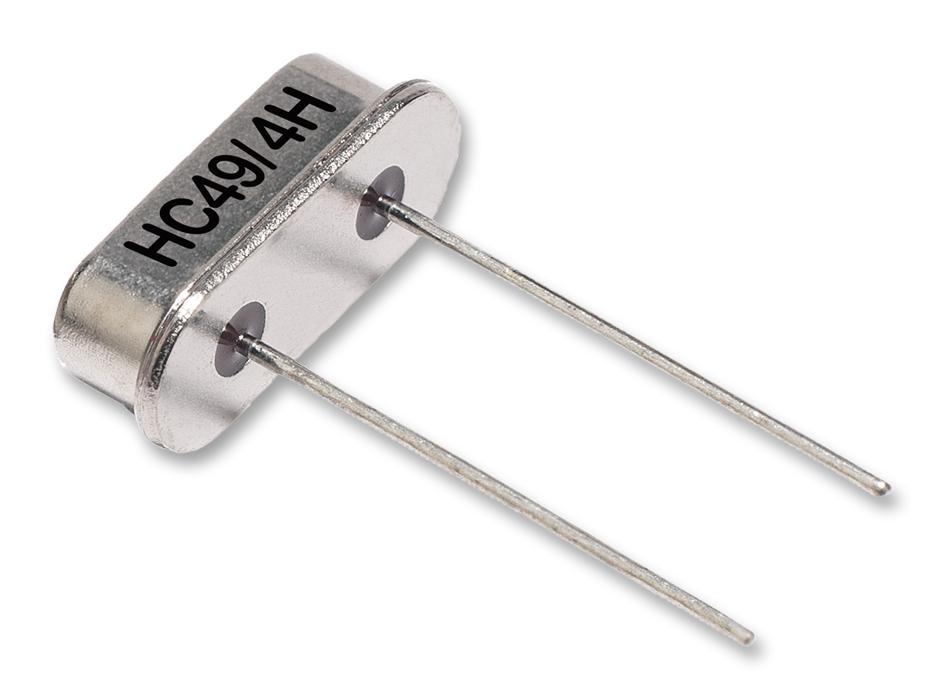

IQD FREQUENCY PRODUCTS LFXTAL003084 Crystal Oscillator
The LFXTAL003084 is a high-stability 4.0960MHz crystal oscillator with a leaded package, designed for precision timing applications. It features resistance welding and hermetic glass-to-metal seals, ensuring durability and reliability in various environmental conditions. The component operates within -10°C to 60°C, with a frequency tolerance of +30.00ppm at 25°C, and a slight aging rate of +5ppm per year. Suitable for applications demanding stable frequency performance, it offers a load capacitance of 30.00pF, shunt capacitance under 7pF, and a drive level of up to 500μW.
IQD FREQUENCY PRODUCTS LFXTAL003084 Crystal Oscillator Specifications:
- Frequency: 4.0960MHz
- Frequency Tolerance: +30.00ppm @ 25°C
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -10°C to 60°C
- Ageing: +5ppm typical per year at 25°C
- Load Capacitance: 30.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500μW max
- ESR: 1300 ohms max
- Shock Resistance: 981m/s² for 6ms, 3 times in each of 3 planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 98.1m/s² for 30 minutes in 3 planes
- Storage Temperature Range: -55°C to 125°C
- Packaging: Bulk pack of 100 units, compliant with RoHS and REACh standards
Buy the IQD Frequency Products Series Crystal Oscillator: LFXTAL003084
Enhance your electronic designs with the IQD Crystal Oscillator LFXTAL003084, offering exceptional stability, hermetic sealing, and resistance to environmental stresses. Perfect for timing circuits, communication devices, and industrial systems, this 4.0960MHz oscillator ensures reliable performance under wide temperature ranges and challenging conditions. Its design includes resistance welding and glass-to-metal sealing for durability, while its load capacitance and low ESR specifications support optimal circuit operation. Buy online today to incorporate this high-quality, precision oscillator into your projects and ensure long-term reliability and accuracy.
Get IQD frequency products series crystal oscillator LFXTAL003084 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003084?
You can click on the BUY or RFQ button to purchase LFXTAL003084 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003084?
You can download the LFXTAL003084 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003084?
IQD FREQUENCY PRODUCTS
