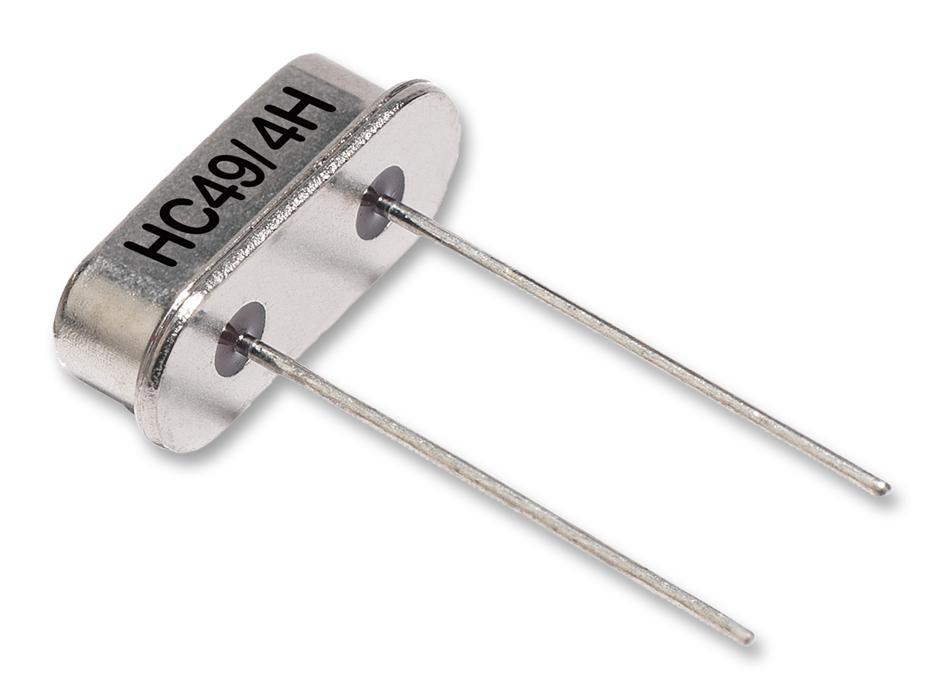

IQD FREQUENCY PRODUCTS LFXTAL003119 Quartz Crystal Oscillator
This quartz crystal unit features an industry-standard leaded package, resistant welded and hermetically sealed in an inert atmosphere with glass-to-metal seals on leads. It has a 2-leg design, operates at 5.0MHz with a frequency tolerance of +30.00ppm at 25°C, and offers high stability with a +5ppm yearly aging. Suitable for various environmental conditions, it withstands temperatures from -10°C to 60°C and is RoHS and REACH compliant. Packaged in bulk, it is ideal for electronic applications requiring precise frequency stability and reliability.
IQD FREQUENCY PRODUCTS LFXTAL003119 Quartz Crystal Oscillator Specifications:
- Frequency: 5.0MHz
- Frequency Tolerance @ 25°C: +30.00ppm
- Frequency Stability: +5ppm typical per year at 25°C
- Operating Temperature Range: -10°C to 60°C
- Ageing: +5ppm per year
- Load Capacitance: 30.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 1300 max
- Packaging: Bulk, loose in bulk pack of 100 units
- Environmental Resistance: Shock - 981m/s², 6ms, 3 times in each plane; Vibration - 10Hz-60Hz, 0.75mm amplitude, 98.1m/s² in 3 planes
- Storage Temperature Range: -55°C to 125°C
- Compliance: RoHS and REACh compliant
Buy the IQD Series Crystal Oscillator: LFXTAL003119
Purchase the IQD LFXTAL003119 quartz crystal online for high-precision frequency control in various electronic devices. This crystal features a hermetically sealed, industry-standard leaded package with a 5.0MHz frequency and excellent stability. Suitable for temperature ranges from -10°C to 60°C, it offers a +30ppm tolerance with a yearly aging of +5ppm, making it ideal for both commercial and industrial applications. Bulk packaging of 100 units ensures cost-effective procurement for assembly operations, ensuring reliability and performance in your projects.
Buy IQD LFXTAL003119 quartz crystal now and experience unmatched reliability and precise frequency stability for your electronic designs.
