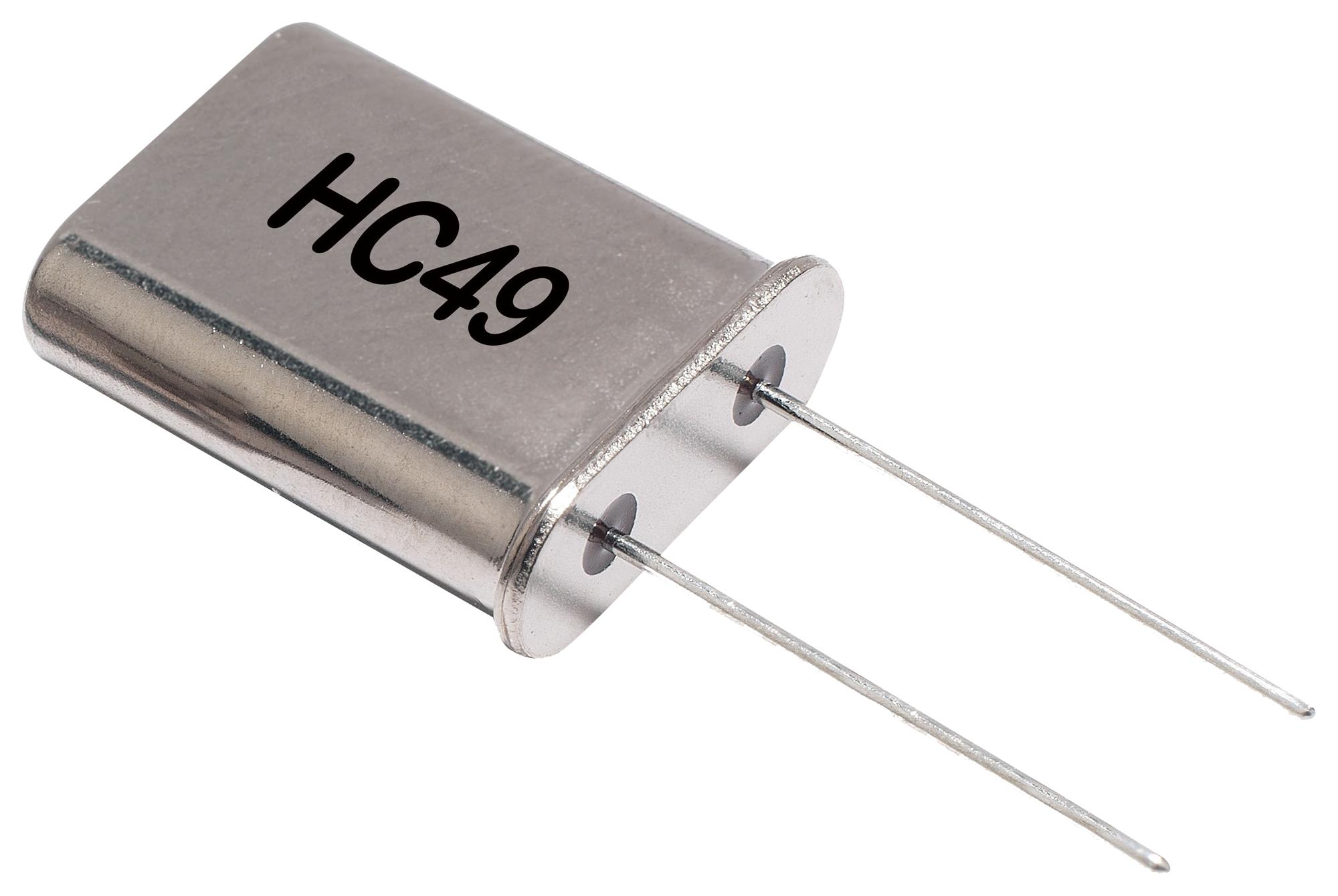

IQD FREQUENCY PRODUCTS LFXTAL003127 Quartz Crystal
The quartz crystal is an industry-standard HC49 package featuring hermetically sealed glass-to-metal seals, multiple mounting variants like 3L and TW with ground legs, and a truncated height of 11.1mm. Suitable for oscillators ranging from 1.8432MHz to 270MHz with tight tolerances and stability over diverse temperature ranges. Designed for reliable electronic timing, frequency control, and client-specific applications, it offers excellent environmental resilience, shock, vibration resistance, and RoHS compliance, making it ideal for precision electronics and industrial systems.
IQD FREQUENCY PRODUCTS LFXTAL003127 Quartz Crystal Specifications:
- Package Type: HC49 with variants including 3L, TW, T, and sleeve
- Frequency Range: 1.8432MHz to 270MHz
- Frequency Tolerance: +5.00ppm to +100.00ppm
- Frequency Stability: Typical per year: +3ppm
- Operating Temperature Range: -55°C to 105°C
- Environmental Resistance: Shock: 981m/s², Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s²
- Storage Temperature Range: -55°C to 125°C
- Electrical Parameters: Load Capacitance: 10.0pF to 75.0pF, Shunt Capacitance: 7pF max, Drive Level: mW max
- Physical Dimensions: Height: 11.1mm, Width: 10.2mm, Length: 20.45mm
- Certifications: RoHS Compliant, REACh Compliant, MSL Rating: Not Applicable
Buy the Buy Industry Standard HC49 Quartz Crystal Part Number LFXTAL003127 Online
Order the HC49 quartz crystal with part number LFXTAL003127 online today and benefit from exceptional frequency accuracy, durability, and environmental resilience. With a broad frequency range from 1.8432MHz to 270MHz and compliance with RoHS standards, this crystal is perfect for oscillator circuits, timing devices, and precision electronics. Its hermetic sealing, multiple mounting options, and resistances to shock and vibration make it ideal for industrial, communication, and consumer electronics. Get yours now for reliable and accurate performance in demanding conditions.
Buy ICQ Frequency Products HC49 quartz crystal part number LFXTAL003127 now and experience unmatched frequency stability and reliable performance for your electronic applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003127?
You can click on the BUY or RFQ button to purchase LFXTAL003127 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003127?
You can download the LFXTAL003127 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003127?
IQD FREQUENCY PRODUCTS
