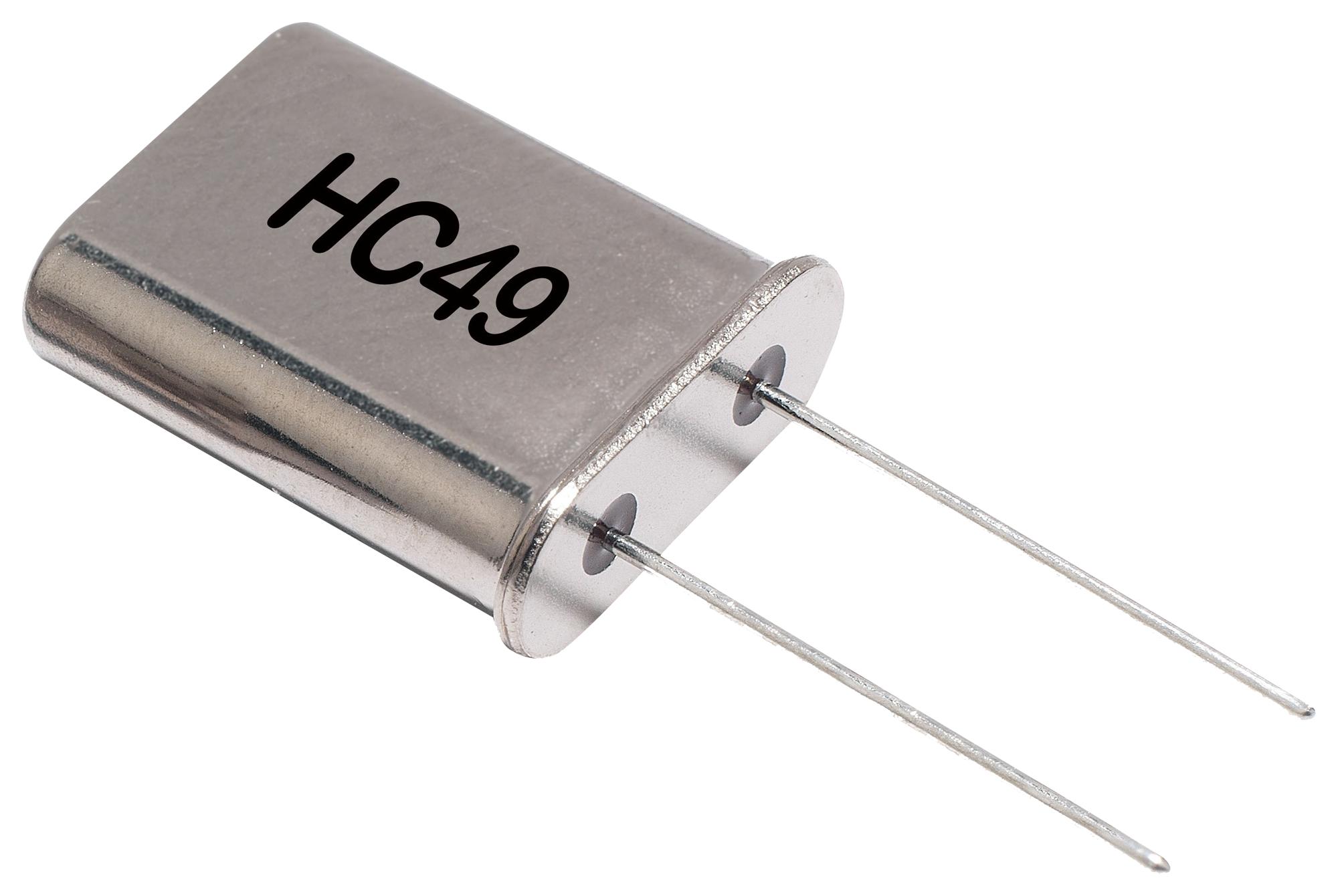

IQD FREQUENCY PRODUCTS LFXTAL003147 Quartz Crystal
The HC49 quartz crystal features industry-standard leaded packages with resistance-welded, hermetically sealed glass-to-metal seals on leads, ensuring high durability and reliability. Variants include additional grounded legs, truncated height options, and different mounting configurations such as top wire or sleeve. Suitable for frequency ranges from 1.8432MHz to 270.0MHz, with stability options up to +200ppm, and temperature ranges from -55°C to 125°C. It is RoHS and REACH compliant, with various packaging styles for bulk or reel distribution.
IQD FREQUENCY PRODUCTS LFXTAL003147 Quartz Crystal Specifications:
- Package: Industry standard leaded hermetically sealed glass-to-metal
- Variants: with grounded legs, truncated height, top wire, sleeve options
- Frequency Range: 1.8432MHz to 270.0MHz
- Frequency Tolerance: +5.00ppm to +100.00ppm
- Frequency Stability: Typical +/-3ppm per year
- Load Capacitance: 10.0pF to 75.0pF
- Shunt Capacitance: Max 7pF
- Drive Level: Max specified mW
- Operating Temperature: -55°C to 125°C
- Shock Resistance: 981m/s², 6ms, in 3 planes
- Vibration: 10Hz-60Hz with 0.75mm amplitude, 60Hz-500Hz, 98.1m/s²
- Storage Temperature Range: -55°C to 125°C
- Environmental Compliance: RoHS and REACH compliant
- MSL Rating: Not applicable
- Outline Dimensions: Approx. 10.2mm x 4.85mm x 3.46mm (varies with variant)
Buy the Quartz Crystal Series HC49: LFXTAL003147
Enhance your electronics with our high-quality HC49 quartz crystals, offering reliable frequency stability up to +200ppm across temperature ranges from -55°C to 125°C. These industry-standard components are hermetically sealed for durability, available in various mounting configurations including grounded legs, sleeve, and top wire options. Perfect for oscillators, clocks, and timing circuits, they meet stringent environmental standards with RoHS and REACH compliance. Choose from multiple packaging styles such as bulk, reel, or tape for easy integration into your production process and trust in our proven quality for your critical timing needs.
Order your Quartz Crystal Series HC49 LFXTAL003147 today and ensure precise timing in your electronic designs with our reliable, hermetically sealed components.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003147?
You can click on the BUY or RFQ button to purchase LFXTAL003147 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003147?
You can download the LFXTAL003147 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003147?
IQD FREQUENCY PRODUCTS
