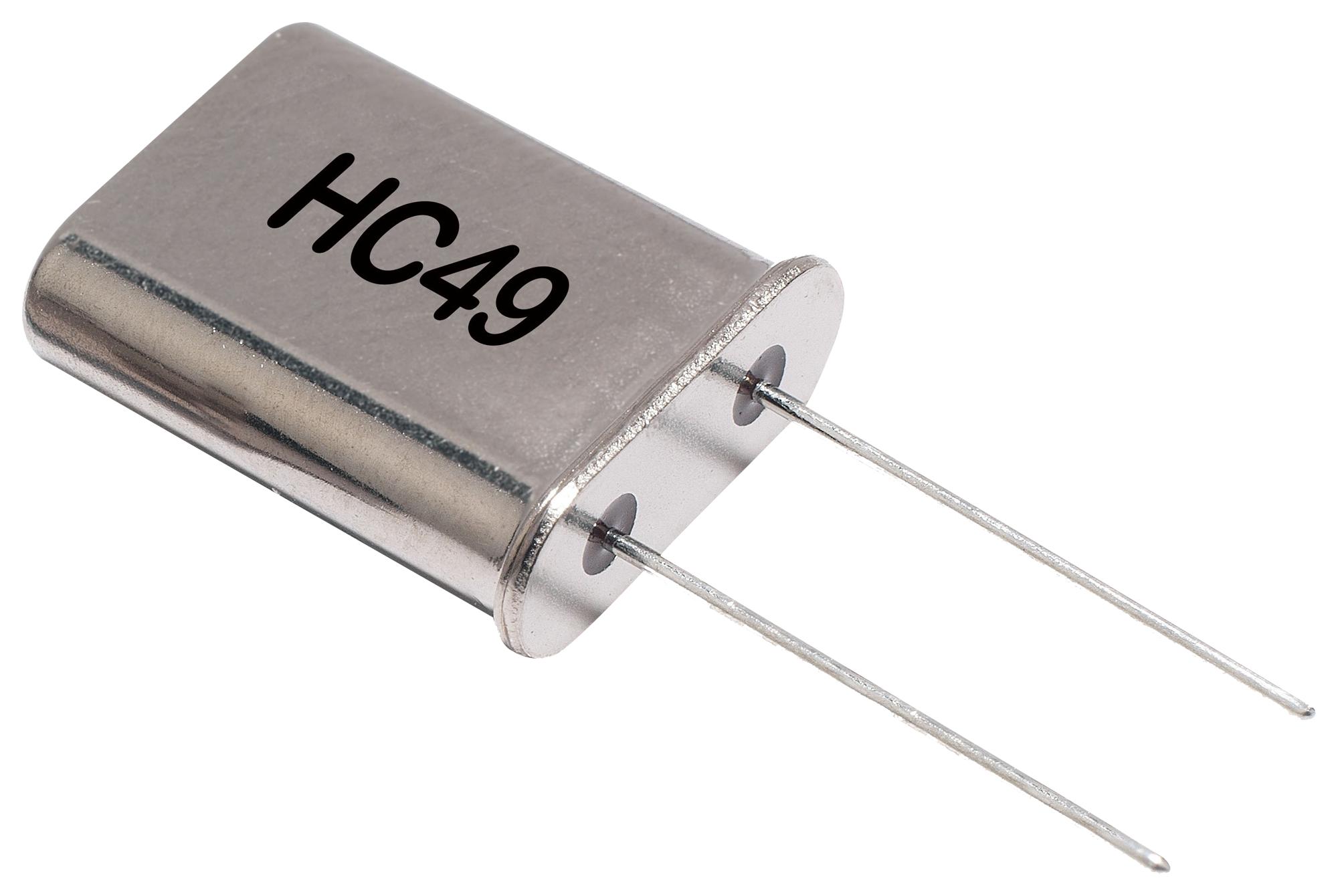

IQD FREQUENCY PRODUCTS LFXTAL003164 Quartz Crystal
The product is an industry-standard quartz crystal in a hermetically sealed HC49 package, suitable for frequency stabilization in various electronic and industrial applications. It features multiple variants such as additional ground legs (3L, TW) and truncated height options (T), with a broad frequency range from 1.8432MHz to 270MHz. Designed for reliable performance, it offers temperature stability, shock, vibration resistance, and RoHS compliance. Ideal for oscillators, timing circuits, and communication equipment, it ensures precise frequency control over wide environmental conditions.
IQD FREQUENCY PRODUCTS LFXTAL003164 Quartz Crystal Specifications:
- Frequency range: 1.8432MHz to 270.0MHz
- Frequency tolerance: +5.00ppm to +200.00ppm
- Frequency stability: typical ±3ppm per year
- Operating temperature ranges: -55°C to +125°C
- Resistance welded, hermetically sealed glass-to-metal package
- Variants include: 3L (center ground), TW (top ground), T (11.1mm height truncated)
- Load capacitance: 10.0pF to 75.0pF
- Shunt capacitance: 7pF max
- Drive level: mW max
- Shock resistance: 981m/s², 6ms, in 3 axes
- Vibration: 10Hz-60Hz (0.75mm), 60Hz-500Hz (98.1m/s², 30 mins)
- RoHS and REACh compliant
- Package dimensions: approximately 10.2mm x 4.85mm height
- Outline variations: standard, 3L, TW, SL, with different mounting options
- Ordering: model-specific, with flexible packaging options including bulk, tape & reel
- Connection: crystal leads, case ground, and optional top or center grounding
Buy the Quartz Crystal 3L – Reliable Oscillator for Industrial Applications
Enhance your electronic devices with our high-quality quartz crystals. Designed for wide temperature ranges and mechanical durability, these crystals provide accurate timing and frequency stability essential for industrial, communication, and automation systems. Available in multiple variants including ground and truncated styles, they suit a variety of applications. Order online now and benefit from fast delivery, competitive pricing, and trusted performance. Secure reliable oscillators for your projects today with our premium quartz crystals designed for demanding environments.
Order your IQD Quartz Crystal series HC49 part today and ensure precise, dependable frequency stability for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003164?
You can click on the BUY or RFQ button to purchase LFXTAL003164 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003164?
You can download the LFXTAL003164 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003164?
IQD FREQUENCY PRODUCTS
