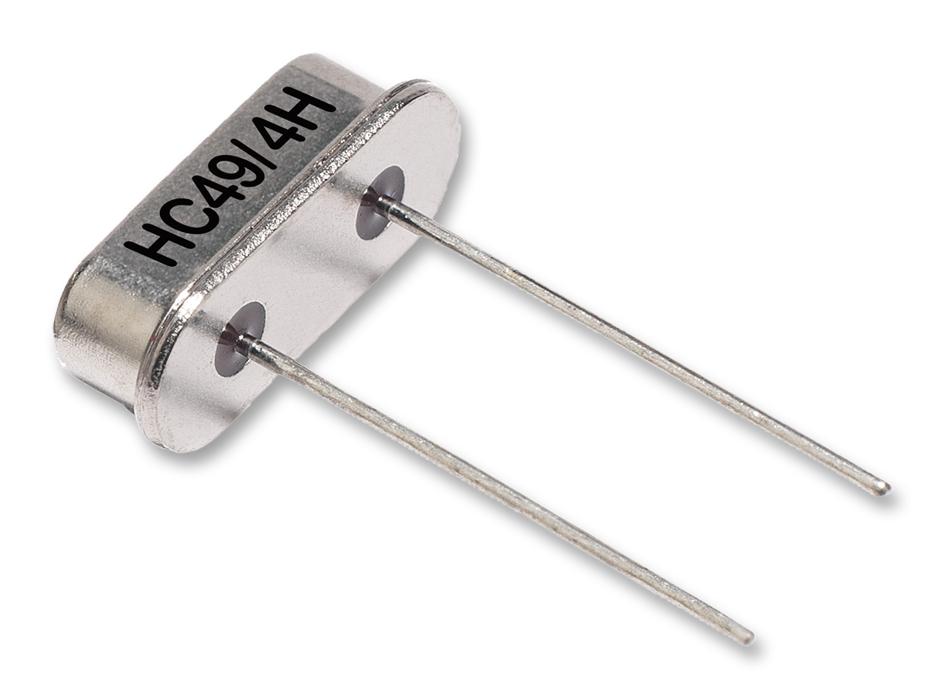

IQD FREQUENCY PRODUCTS LFXTAL003263 High-Precision Crystal Oscillator
These high-precision HC49/4H crystal oscillators are industry-standard leaded packages, hermetically sealed in an inert atmosphere with glass-to-metal seals on leads. They operate reliably within -55°C to 105°C and feature low phase noise, excellent temperature stability, and various load capacitance options from 10.0pF to 75.0pF. The oscillators cover frequency ranges from 3.2 MHz up to 100 MHz, with stable frequency tolerance and minimal aging. Suitable for communication, instrumentation, and repetitive timing applications requiring high stability and durability.
IQD FREQUENCY PRODUCTS LFXTAL003263 High-Precision Crystal Oscillator Specifications:
- Frequency Range: 3.2 to 100.0MHz
- Frequency Tolerance: 10ppm to +100ppm
- Frequency Stability: +15.00ppm or as specified
- Load Capacitance: 10.0pF to 75.0pF
- Drive Level: Max 500µW
- Aging: +5ppm typical per year at 25°C
- Shunt Capacitance: Max 7pF
- Operating Temperature Ranges: -55°C to 105°C
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 981m/s², 6ms, in three axes
- Vibration: 10Hz-60Hz, 0.75mm; 60Hz-500Hz, 98.1m/s² for 30 mins
- Packaging: Bulk loose or reel tape, 100 or 1,000 units
Buy the Buy Frequency Products HC49/4H Part Number LFXTAL003263 Online
Order the high-precision HC49/4H crystal oscillators online today to benefit from industry-leading stability, hermetic sealing, and a broad frequency range. Designed for use in communication systems, instrumentation, and reliable timing applications, these oscillators feature exceptional temperature tolerance and minimal aging. With flexible packaging options including bulk and reel, secure your supply of durable, high-performance crystal oscillators. Buy now to ensure your electronic designs perform with the highest accuracy and stability demanded by today’s advanced technology environments.
Buy Frequency Products HC49/4H LFXTAL003263 now and experience unmatched reliability and precision in frequency stability for your electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003263?
You can click on the BUY or RFQ button to purchase LFXTAL003263 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003263?
You can download the LFXTAL003263 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003263?
IQD FREQUENCY PRODUCTS
