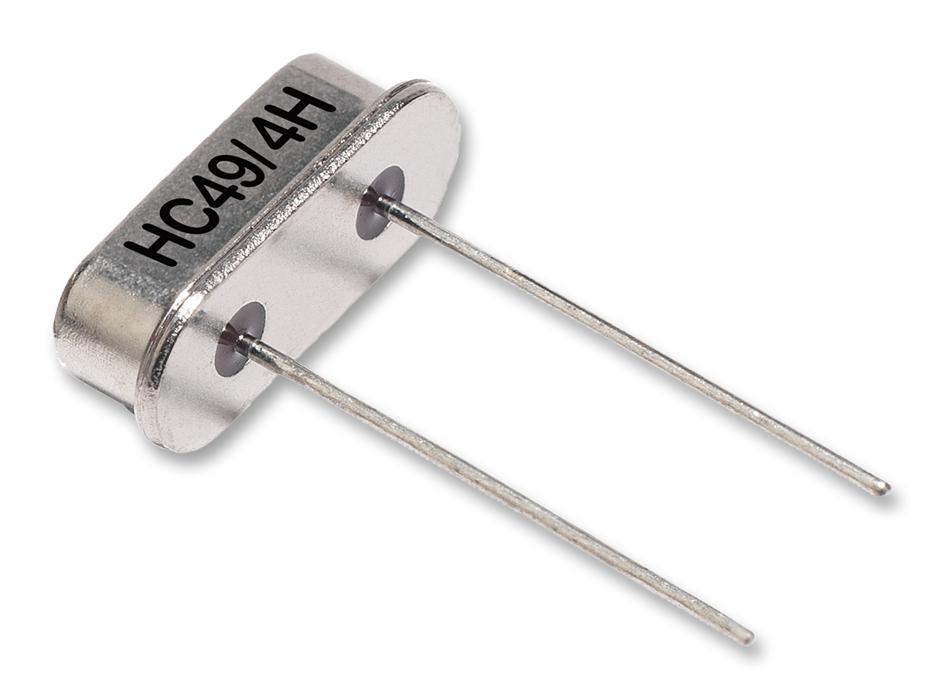

IQD FREQUENCY PRODUCTS LFXTAL003279 Crystal Oscillator
This crystal oscillator offers industry-standard leaded packaging with resistance welded, hermetically sealed glass-to-metal leads, ensuring reliability. It features a 2-leg design, model-specific issue, and operates within a temperature range of -10°C to 60°C. The frequency stability is ±30 ppm at 25°C with a typical aging of +5 ppm per year. It has a load capacitance of 30.00 pF, shunt capacitance max 7 pF, and drive level up to 500 μW, making it suitable for reliable electronic timing applications.
IQD FREQUENCY PRODUCTS LFXTAL003279 Crystal Oscillator Specifications:
- Frequency: 9.8304 MHz
- Frequency Tolerance @ 25°C: +30.00 ppm
- Frequency Stability: +50.00 ppm
- Operating Temperature Range: -10°C to 60°C
- Ageing: +5 ppm per year typical
- Load Capacitance (Ct): 30.00 pF
- Shunt Capacitance (Co): 7 pF max
- Drive Level: 500 μW max
- ESR: 400 max
- Packaging: Loose in bulk pack, 100 units
- RoHS and REACh compliant
- Dimensions: Length approximately 11.05 mm, width 4.88 mm plus tolerance, outline 0.45 mm thickness
Buy the IQD Series Crystal Oscillator: LFXTAL003279
Purchase the IQD crystal oscillator LFXTAL003279 online today to ensure your electronic projects benefit from industry-standard hermetic sealing, stable frequency output of 9.8304 MHz, and a temperature range ideal for diverse environments. This high-quality component features a leaded package with resistance welded glass-to-metal seals, ensuring durability and long-term performance. Perfect for oscillators, timers, and communication devices, this product is essential for any high-precision electronic design. Enjoy quick delivery and reliable performance by buying now!
Buy IQD LFXTAL003279 crystal oscillator now and experience unmatched reliability and precise frequency stability for your electronic timing needs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL003279?
You can click on the BUY or RFQ button to purchase LFXTAL003279 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL003279?
You can download the LFXTAL003279 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL003279?
IQD FREQUENCY PRODUCTS
