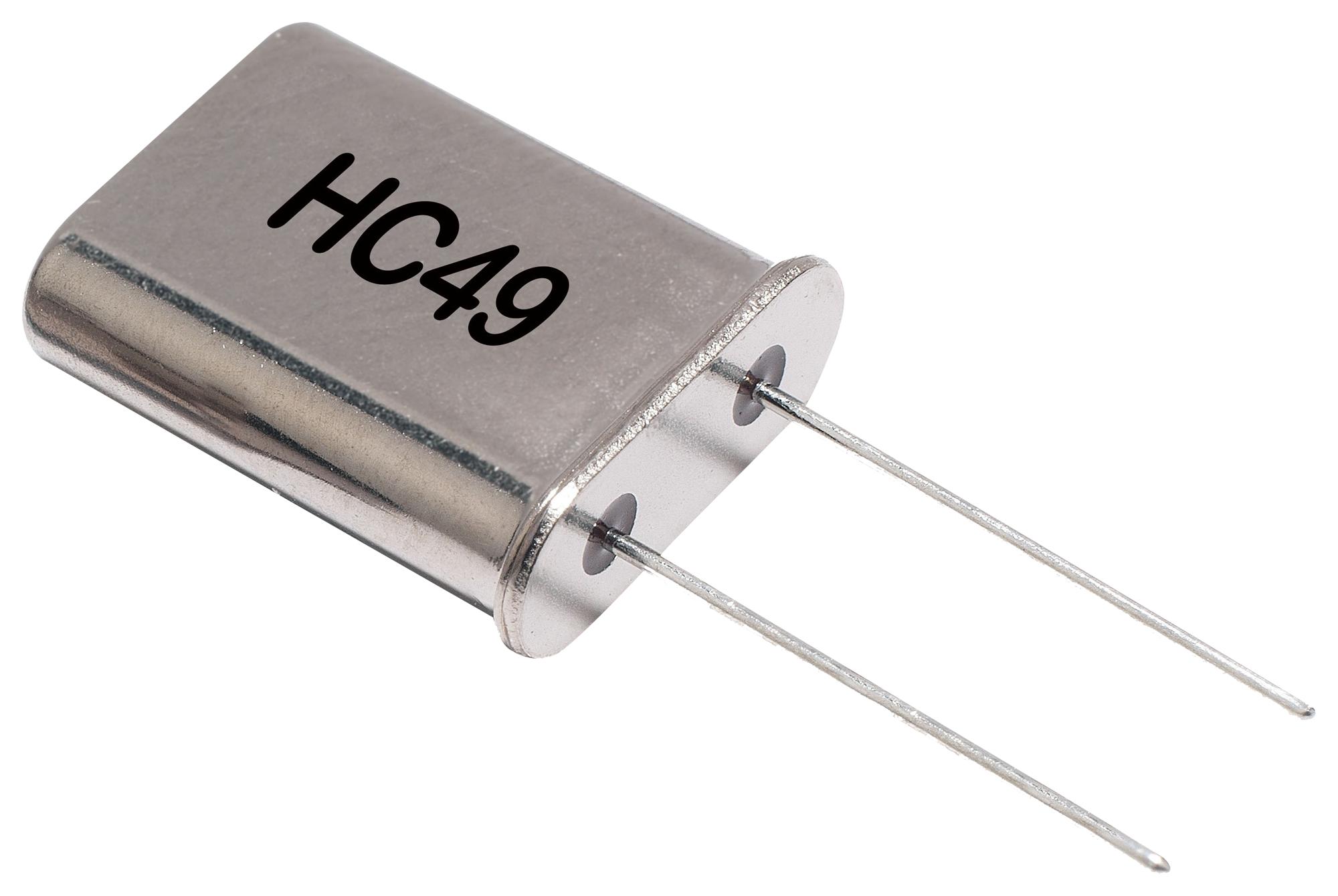

IQD FREQUENCY PRODUCTS LFXTAL003327 Quartz Crystal
The LFXTAL003327 is a high-precision quartz crystal designed in the industry-standard HC49 package, available with variants including ground and truncated height options. It operates across a frequency range of 1.8432MHz to 270.0MHz with exceptional stability and low drive levels, making it ideal for oscillators, timing circuits, and RF applications. The crystal is hermetically sealed in an inert atmosphere with glass-to-metal seals and complies with RoHS and REACH standards. Its reliable performance under various temperature ranges and environmental conditions ensures suitability for demanding industrial and electronic systems.
IQD FREQUENCY PRODUCTS LFXTAL003327 Quartz Crystal Specifications:
- Package: HC49 standard leaded with variants including ground and truncated height options
- Frequency range: 1.8432MHz to 270.0MHz
- Frequency tolerance: +5.00ppm to +200.00ppm
- Frequency stability: Typical ±3ppm per year
- Load capacitance: 10.0pF to 75.0pF
- Shunt capacitance: Max 7pF
- Drive level: Max specified per model
- Operating temperature: From -55°C to +125°C depending on variant
- Environmental resistance: Shock 981m/s², vibration 98.1m/s² at specified frequencies
- Storage temperature: -55°C to 125°C
- RoHS and REACH compliant, MSL not applicable
- Outline dimensions: 10.2mm × 4.85mm × 12.7mm
Buy the IQD Frequency Products Series HC49 Quartz Crystal Part Number LFXTAL003327
Secure the IQD LFXTAL003327 quartz crystal online today and enhance your electronic projects with high stability, precise frequency control, and durable hermetic sealing. This industrial-grade crystal ensures optimal performance across a wide temperature range and environmental conditions, making it ideal for oscillators, timing circuits, and RF systems. Available in various configurations with hermetic sealing, RoHS compliance, and easy ordering in bulk packs, it’s the reliable choice for engineers seeking precision and durability in electronic components.
Buy IQD LFXTAL003327 now and experience unmatched reliability and performance in precision timing for industrial and electronic systems.
