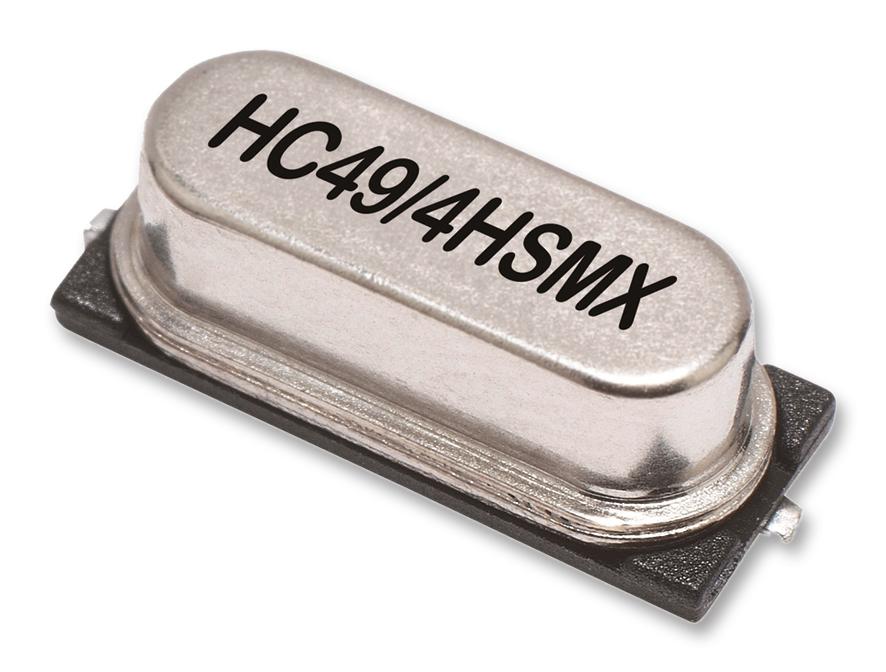

IQD FREQUENCY PRODUCTS LFXTAL003519 SMD Quartz Crystal
This high-precision industry-standard SMD quartz crystal features resistance-welded, hermetically sealed design in an inert atmosphere, with glass-to-metal seals on leads. Mounted on a plastic former for gull wing mounting, it operates at 11.0592MHz with a frequency tolerance of ±30ppm at 25°C and ±50ppm over temperature. Suitable for applications requiring stability with a temperature range of -10°C to 60°C, it offers low drive level, low ESR, and reliable shock and vibration resistance, ensuring precise timing in electronic circuits.
IQD FREQUENCY PRODUCTS LFXTAL003519 SMD Quartz Crystal Specifications:
- Frequency: 11.0592MHz
- Frequency Tolerance: ±30ppm at 25°C, ±50ppm over temperature
- Temperature Range: -10°C to 60°C
- Overtone Order: Fundamental
- Ageing: ±5ppm per year at 25°C
- Load Capacitance: 16.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500µW max
- ESR: 40.000 max
- Package Height Options: HC4S/4HSMX 4.3mm, HC49/3.5HSMX 3.7mm, HC49/3HSMX 3.1mm, HC49/2.5HSMX 2.85mm
- Outline Dimensions: 11.4 ± 0.2 mm
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes
- Vibration Resistance: 10Hz-60Hz at 0.75mm, 60Hz-500Hz at 98.1m/s² for 30 mins
- Storage Temperature: -55°C to 125°C
- Packaging: Reel, 1000pcs, tape & reel compliant to IEC-481-D
- RoHS & REACh Compliant, MSL Rating: Not Applicable
Buy the Industry standard SMD quartz crystal series LFXTAL003519: 11.0592MHz
Order the SMD quartz crystal series LFXTAL003519 online for high stability, low phase noise, and reliable performance. Perfect for oscillators, timing, and frequency control modules in consumer electronics and industrial applications. Enjoy fast delivery, secure checkout, and expert support for your electronic timing device needs. Ensure precise frequency stability with this hermetically sealed, industry-standard crystal designed to withstand shock and vibration, making it ideal for high-reliability environments, and enhancing your electronic system performance.
Buy IQD Frequency Products LFXTAL003519 now and experience unmatched reliability and performance, ideal for precision timing in high-stability circuits.
