IQD FREQUENCY PRODUCTS LFXTAL009650 Quartz Crystal

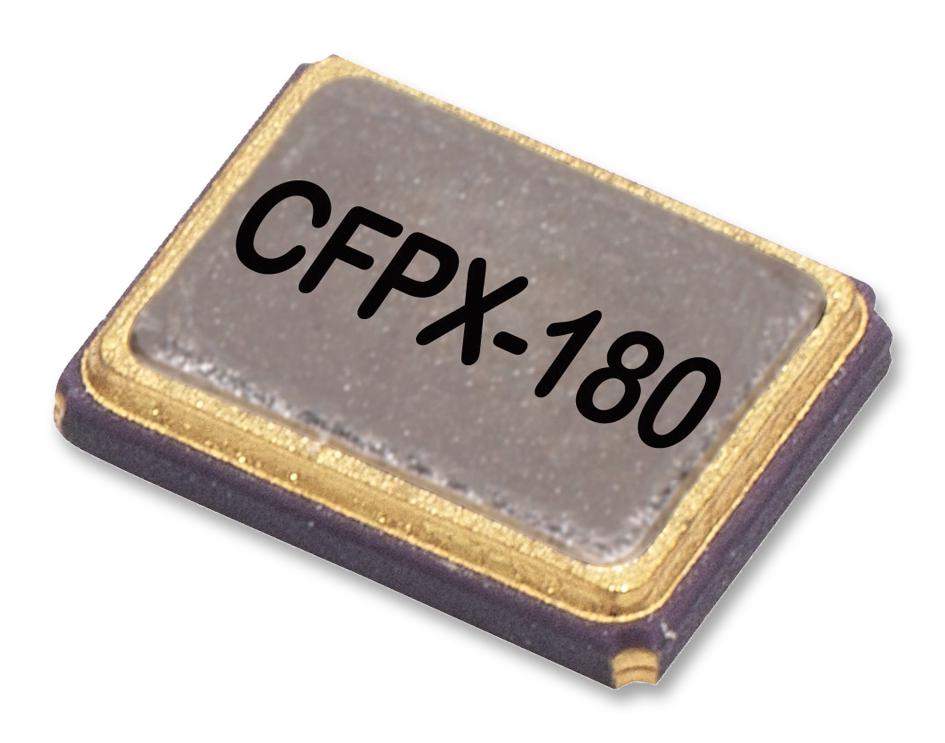

This quartz crystal features a standard 3.2 x 2.5mm SMD package with hermetic sealing in a ceramic enclosure and metal lid, offering stability and reliability for various electronic applications. Operating in the fundamental overtone mode at 16.00MHz, it maintains a frequency tolerance of ±10ppm at 25°C and exhibits a frequency stability of ±20ppm. Its temperature range spans from -40°C to 85°C, making it suitable for demanding environments. The crystal has low load capacitance of 16.0pF, and its design ensures compliance with RoHS standards, making it ideal for modern electronic assembly and manufacturing.
IQD FREQUENCY PRODUCTS LFXTAL009650 Quartz Crystal Specifications:
- Frequency: 16.00MHz
- Frequency Tolerance: ±10.00ppm @25°C
- Frequency Stability: ±20.00ppm
- Operating Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Ageing: ±5ppm max per year @25°C
- Load Capacitance: 16.0pF
- Shunt Capacitance: 7pF max
- Drive Level: 1004W max
- Equivalent Series Resistance (ESR): 70.000 max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, MIL-STD-202F, Method 213B, 0.5ms
- Vibration Resistance: 20G, MIL-STD-202F, Method 204D, Test D
- RoHS Terminations: NiAu, 260°C, 10s
- Reflow Temperature: Compliant, RoHS Reflow Temp
- Packaging: Reel, Pack Size: 1,000
- Outline Size (mm): 34 max
- Seal: Hermetically sealed ceramic package with metal lid
- Compliance: RoHS, REACh, MSL Rating: Not Applicable
Buy the Buy IQD Frequency Products Quartz Crystal Part Number LFXTAL009650 Online
Purchase the high-quality IQD Quartz Crystal model LFXTAL009650 online today to enhance your electronic designs with reliable oscillation performance. This 16.00MHz crystal, encased in a hermetically sealed ceramic package, offers precise frequency stability of ±20ppm and operates within a temperature range of -40°C to 85°C. Its low load capacitance of 16.0pF and RoHS compliance meet modern manufacturing standards. Ideal for various industrial, communication, and consumer electronic applications, order now to ensure stability and long-term durability in your projects.
Order your IQD Quartz Crystal LFXTAL009650 today and ensure high precision, stability, and reliability for your electronic projects and manufacturing needs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL009650?
You can click on the BUY or RFQ button to purchase LFXTAL009650 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL009650?
You can download the LFXTAL009650 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL009650?
IQD FREQUENCY PRODUCTS
