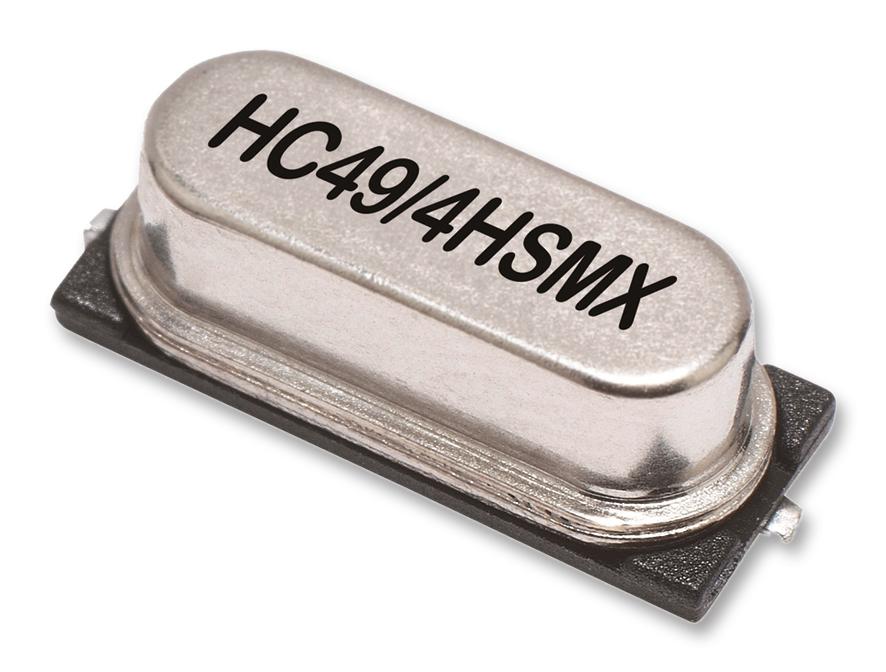

IQD FREQUENCY PRODUCTS LFXTAL010043 SMD Quartz Crystal
The industry standard SMD crystal features resistance-welded, hermetically sealed construction in an inert atmosphere with glass-to-metal seals on leads. It employs gull wing mounting with lead wires mounted onto a plastic former for robust attachment. Operating at 12.0MHz, it offers high frequency stability of ±50ppm over -10°C to 60°C, making it suitable for diverse electronic applications. With options for different package heights up to 4.3mm, this quartz crystal ensures reliable performance in vibration and shock environments, fully compliant with RoHS and REACh standards, and available in tape & reel packaging.
IQD FREQUENCY PRODUCTS LFXTAL010043 SMD Quartz Crystal Specifications:
- Frequency: 12.0MHz
- Frequency Tolerance: +30.00ppm @ 25°C ±2°C
- Frequency Stability: +50.00ppm over -10°C to 60°C
- Overtone Order: Fundamental
- Load Capacitance: 30.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 40.000 max
- Temperature Range: -55°C to 125°C (storage), -10°C to 60°C (operating)
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes
- Vibration: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1m/s², 30mins, in 3 planes
- Package Height Options: HC4S/4HSMX 4.3mm max, HC49/3.5HSMX 3.7mm max, HC49/3HSMX 3.1mm max, HC49/2.5HSMX 2.85mm max
- Packaging: Reel with tape in accordance with EIA-481-D, compliant with RoHS and REACh
Buy the IQD Series HC4S SMD Crystal: LFXTAL010043
Purchase the IQD Series HC4S 12.0MHz SMD quartz crystal online today to secure reliable, high-precision frequency control essential for your electronic projects. Designed with resistance-welded, hermetically sealed construction and available in multiple package heights, this crystal offers excellent stability and durability against shock and vibration. Fully compliant with RoHS and REACh standards, it comes in tape & reel packaging for easy handling. Ensure your devices operate at peak performance with this trusted crystal component—order now for fast delivery and superior quality.
Order your IQD Series HC4S 12.0MHz SMD crystal today and ensure precise frequency stability for your electronic designs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL010043?
You can click on the BUY or RFQ button to purchase LFXTAL010043 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL010043?
You can download the LFXTAL010043 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL010043?
IQD FREQUENCY PRODUCTS
