IQD FREQUENCY PRODUCTS LFXTAL010689 Surface Mount Crystal

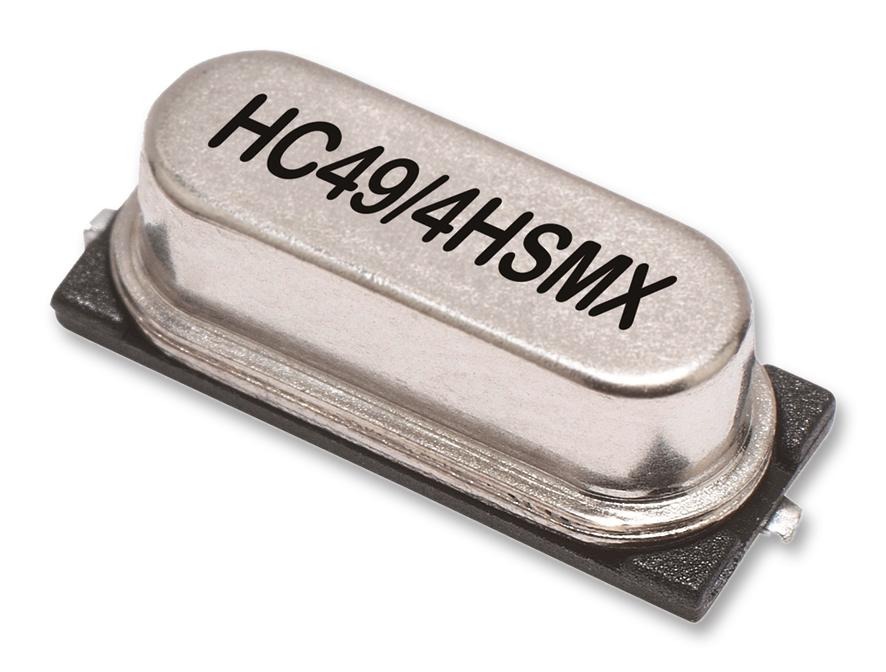

This industry standard SMD crystal is hermetically sealed in an inert atmosphere with glass-to-metal seals on leads, offering high reliability for embedded applications. The HC49/4HSMX model features resistance welding and gull wing mount leads for easy surface mounting. Operating at 7.37280MHz with a tolerance of +30 ppm at 25°C and stability of +50 ppm, it supports a temperature range from -10°C to 60°C. Its electrical parameters include 30pF load capacitance, 7pF shunt capacitance, 500µW drive level, and ESR of 600 max. Vibration, shock, and storage conditions conform to industry standards, with RoHS and REACH compliance, and it comes in an EIA-481-D reel suitable for automated assembly.
IQD FREQUENCY PRODUCTS LFXTAL010689 Surface Mount Crystal Specifications:
- Frequency: 7.37280MHz
- Tolerance: +30 ppm at 25°C
- Stability: +50 ppm
- Operating Temperature Range: -10°C to 60°C
- Equivalent Series Resistance (ESR): 600 max
- Load Capacitance: 30pF
- Shunt Capacitance: 7pF max
- Drive Level: 500µW
- Hermetically sealed in inert atmosphere
- Shock resistance: 981m/s, 6ms, 3 times in each plane
- Vibration: 10Hz-60Hz, 0.75mm amplitude, 500Hz, 98.1m/s², 30 mins in each plane
- Storage Temperature Range: -55°C to 125°C
- Pack Type: Reel (1,000 units) with EIA-481-D compliance
- RoHS and REACH compliant
- Outline Dimensions: varies by package, HC49/4HSMX max height 4.3mm
Buy the Buy IQD Frequency Products Part Number LFXTAL010689 Online
Order the IQD Frequency Products crystal with part number LFXTAL010689 online today. Designed for high reliability with hermetic sealing and industry-standard SMD packaging, it offers precise 7.37280MHz frequency, tolerance of +30 ppm, and stability of +50 ppm. Suitable for a wide temperature range from -10°C to 60°C, it features low ESR and supports automated assembly with reel packaging conforming to EIA standards. Ideal for timing and oscillator applications demanding durability and accuracy in electronic devices.
Get IQD Frequency Products LFXTAL010689 today—built for precision and long-lasting durability in high-reliability electronics.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL010689?
You can click on the BUY or RFQ button to purchase LFXTAL010689 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL010689?
You can download the LFXTAL010689 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL010689?
IQD FREQUENCY PRODUCTS
