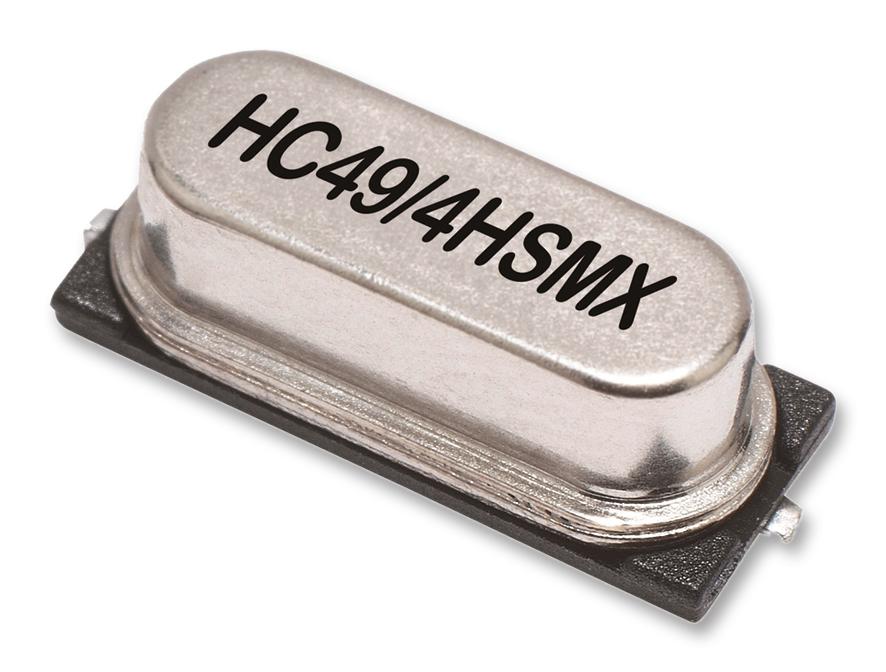

IQD FREQUENCY PRODUCTS LFXTAL012312 Surface Mount Crystal
This industry-standard SMD crystal features resistance welding and hermetic sealing in an inert atmosphere with glass-to-metal seals on leads. The HC49/4HSMX model offers a 5.0MHz frequency with a tolerance of +30.00ppm at 25°C, stability of +50.00ppm, and an operating temperature range of -10°C to 60°C. It is designed with gull-wing leads mounted onto a plastic former, making it suitable for automation. Compliant with RoHS and REACh, it comes in tape & reel packaging of 1,000 units, adhering to EIA-481-D standards, and withstands shocks and vibrations for reliable performance in industrial electronics.
IQD FREQUENCY PRODUCTS LFXTAL012312 Surface Mount Crystal Specifications:
- Frequency: 5.0MHz
- Frequency Tolerance: +30.00ppm @ 25°C
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -10°C to 60°C
- Ageing: +5ppm per year @ 25°C
- Load Capacitance: 30.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 1300 max
- Shock resistance: 981m/s², 6ms, 3 times per plane
- Vibration: 10Hz-60Hz, 0.75mm amplitude, 98.1m/s², 30 mins per plane
- Storage Temperature: -55°C to 125°C
- Package Type: Reel
- Pack Size: 1,000 units
- Outline Dimensions (mm): HC49/4HSMX: 11.44 * 4.3mm max height
- Compliance: RoHS and REACh
- MSL Rating: JDEC-STD-033, in accordance with EIA-481-D
- Packaging: Tape & reel
- Solder Pad Layout: Includes underside view with suitable pad configuration
Buy the IQD 012312 – Reliable Industrial Crystal for Electronic Applications
Purchase the IQD series LFXTAL012312 crystal online today for precision frequency stability in industrial electronics. With hermetic sealing, resistance welding, and compliance with RoHS and REACh, this 5.0MHz crystal offers excellent performance under harsh conditions. Packaged in a tape & reel format with 1,000 units, its rugged design withstands shocks, vibrations, and temperature extremes from -55°C to 125°C, making it ideal for demanding industrial and automation applications. Ensure your projects perform reliably with this high-quality component.
Order your IQD SeriesLFXTAL012312 crystal today and ensure your industrial projects benefit from proven stability and quality.
