IQD FREQUENCY PRODUCTS LFXTAL012313 Surface Mount Crystal
This is a high-precision industry standard SMD crystal designed for reliable electronic applications. It features resistance-welded, hermetically sealed glass-to-metal seals on leads, ensuring durability and stability. The crystal operates at 14.74560 MHz with a tolerance of ±30 ppm and a stability of +50 ppm. Suitable for temperatures from -10°C to 60°C, it has a fundamental overtone mode, with an aging rate of +5 ppm annually at 25°C. Its electrical parameters include 30.00 pF load capacitance, 7 pF shunt capacitance, and a drive level of 500 μW. It endures significant environmental stresses such as shock, vibration, and temperature cycling, and complies with RoHS and REACh standards. Packaged in a reel of 1,000 units, it meets EIA-481-D specifications.
IQD FREQUENCY PRODUCTS LFXTAL012313 Surface Mount Crystal Specifications:
- Frequency: 14.74560 MHz
- Tolerance: ±30 ppm
- Frequency stability: +50 ppm
- Temperature Range: -10°C to 60°C
- Overtone: Fundamental
- Aging: +5 ppm/year at 25°C
- Load Capacitance: 30.00 pF
- Shunt Capacitance: 7 pF max
- Drive Level: 500 μW max
- ESR: 400 max
- Shock resistance: 981 m/s², 6 ms, 3 times in each of 3 planes
- Vibration: 10Hz-60Hz, 0.75mm amplitude, 98.1 m/s² in 3 planes over 30 mins
- Storage Temperature Range: -55°C to 125°C
- Packaging: Reel, 1,000 units
- Compliance: RoHS, REACh, MSL Rated

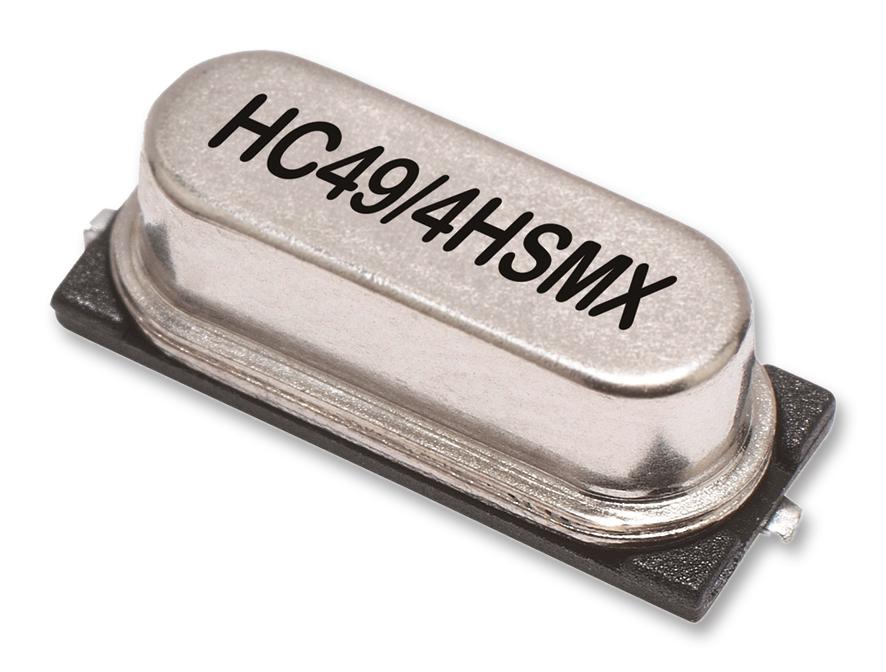

Buy the IQD Series HC49/4HSMX 14.74560MHz Crystal: LFXTAL012313
Secure your electronic projects with the high-quality Surface Mount Crystal designed by IQD. This crystal operates at 14.74560 MHz with robust sealing and resistance to shock and vibration. Its precise tolerance and stability ensure reliable timing in demanding conditions. Packaged in a reel of 1,000 units, it is ideal for mass production and OEM applications. Easy to integrate with low drive level, low ESR, and wide temperature range, making it suitable for various industrial and consumer electronics. Purchase online for quick delivery and dependable performance.
Order your IQD Series HC49/4HSMX 14.74560MHz crystal today and ensure the precise timing performance your projects require with high reliability and environmental resilience.
