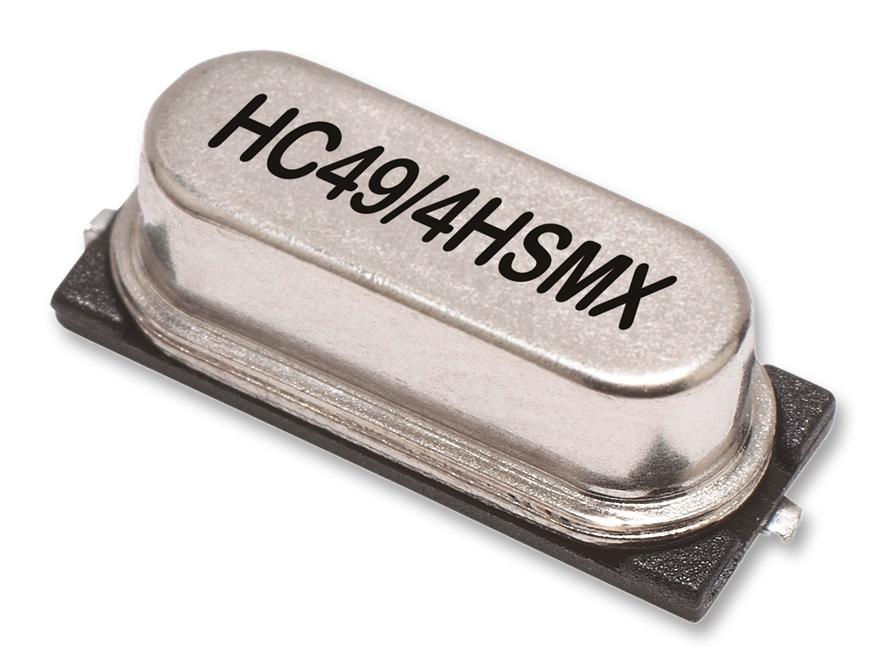

IQD FREQUENCY PRODUCTS LFXTAL012504 High-Precision SMD Crystal
This industry-standard SMD crystal features resistance welding and hermetic sealing in an inert atmosphere, ensuring durability and stability. It is mounted on a plastic former to form a gull wing mount, ideal for high-reliability applications. Operating at 24.0 MHz with a frequency tolerance of ±30 ppm and frequency stability of +50 ppm, it performs reliably across temperature ranges from -10°C to 60°C. Its electrical parameters include load capacitance of 16.00 pF, shunt capacitance up to 7 pF, and a drive level maximum of 500 µW. Certified RoHS and REACH compliant, suitable for various industrial electronics requiring precise timing components.
IQD FREQUENCY PRODUCTS LFXTAL012504 High-Precision SMD Crystal Specifications:
- Frequency: 24.0 MHz
- Frequency Tolerance @ 25°C: ±30 ppm
- Frequency Stability: +50 ppm
- Operating Temperature Range: -10°C to 60°C
- Load Capacitance: 16.00 pF
- Shunt Capacitance: 7 pF max
- Drive Level: 500 µW max
- ESR: 400 max
- Shock Resistance: 981 m/s², 6 ms, 3 times in each of 3 mutually perpendicular planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 500Hz, 98.1 m/s², 30 mins in 3 planes
- Storage Temperature Range: -55°C to 125°C
- RoHS and REACH compliant
- Packaging: Reel with 1,000 units, tape & reel according to EIA-481-D, alternative packaging available
- Outline Size: 11.4402 mm
- Package Height Options: HC49/4HSMX 4.3 mm, HC49/3.5HSMX 3.7 mm, HC49/3HSMX 3.1 mm, HC49/2.5HSMX 2.85 mm
Buy the IQD Frequency Products LFXTAL012504 – Reliable Crystal for Industrial Applications
Purchase the IQD High-Precision SMD Crystal LFXTAL012504 online today for dependable performance in industrial and electronic applications. This hermetically sealed crystal offers high stability, low aging, and precise frequency control, making it ideal for timing, communication, and automation systems. Its compact gull wing mount design ensures compatibility with surface-mount technology and ease of installation. Certified RoHS and REACH compliant, it guarantees eco-friendly manufacturing standards. Order now and benefit from fast delivery, superior quality, and technical support to keep your projects running smoothly and accurately.
Order your IQD Series LFXTAL012504 24 MHz crystal today and ensure your electronic projects achieve precise, reliable timing performance.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL012504?
You can click on the BUY or RFQ button to purchase LFXTAL012504 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL012504?
You can download the LFXTAL012504 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL012504?
IQD FREQUENCY PRODUCTS
