IQD FREQUENCY PRODUCTS LFXTAL016788 Quartz Crystal Oscillator
The LFXTAL016788 is an industry standard SMD crystal featuring resistance welding and hermetic sealing in an inert atmosphere, with glass-to-metal seals on leads. It employs gull-wing lead wires mounted onto a plastic former for easy soldering. Operating at 6.0MHz, it offers high frequency stability, low drive level, and robust environmental resistance, including shock and vibration durability. Suitable for precision timing applications in various electronic devices, it conforms to RoHS and REACH standards. Packaged in reel format, it ensures reliable performance and easy integration on manufacturing lines.
IQD FREQUENCY PRODUCTS LFXTAL016788 Quartz Crystal Oscillator Specifications:
- Frequency: 6.0MHz
- Tolerance: +30.00ppm @ 25°C ± 2°C
- Frequency Stability: +50.00ppm over temperature range
- Operating Temperature Range: -10.00 to 60.00°C
- Ageing: +5ppm per year @ 25°C
- Load Capacitance: 30.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 60.000 max
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 planes
- Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30 mins in 3 planes
- Storage Temperature Range: -55 to 125°C
- Package Style: Reel, compliant with IEC-481-D
- Packaging: Tape & reel, alternative options available
- Part Number: LFXTAL016788 with reel packaging
- Outline dimensions: 11.4mm ±0.2mm height, package height options up to 4.3mm

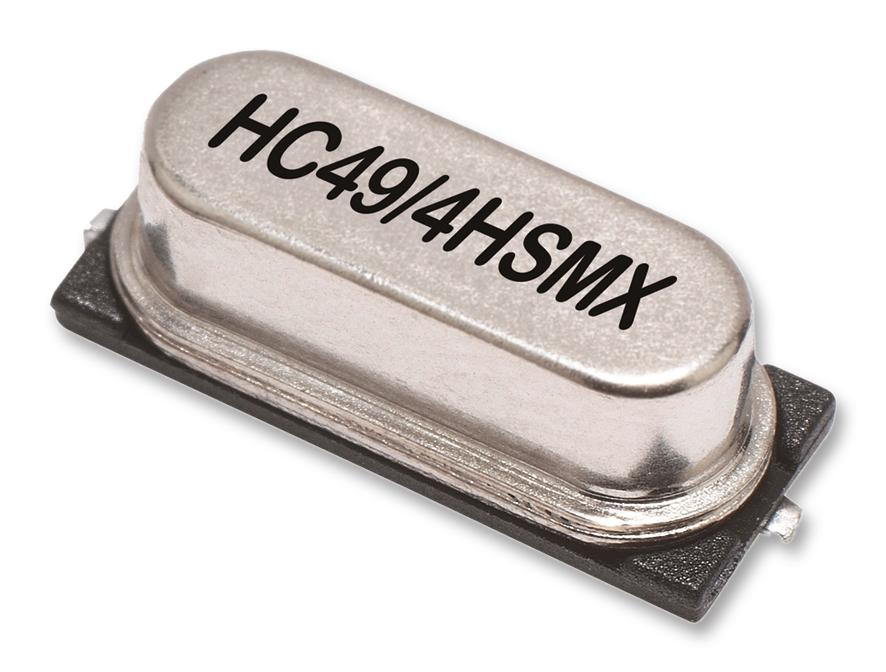

Buy the Quartz Crystal Series HC49/4HSMX: LFXTAL016788
Purchase the LFXTAL016788 quartz crystal oscillator online to ensure high stability, durable hermetic sealing, and precise 6.0MHz frequency for your electronic projects. This SMD crystal with gull-wing leads simplifies manufacturing assembly and guarantees resilience against shock, vibration, and temperature variations. Packaged in reel format, it is ideal for automated surface-mount technology. Reliable and RoHS compliant, it is suitable for consumer electronics, industrial equipment, and communication devices. Order now to enhance your device performance with consistent timing accuracy.
Buy IQD Frequency Products LFXTAL016788 now and experience unmatched reliability and precision in electronic timing applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL016788?
You can click on the BUY or RFQ button to purchase LFXTAL016788 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL016788?
You can download the LFXTAL016788 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL016788?
IQD FREQUENCY PRODUCTS
