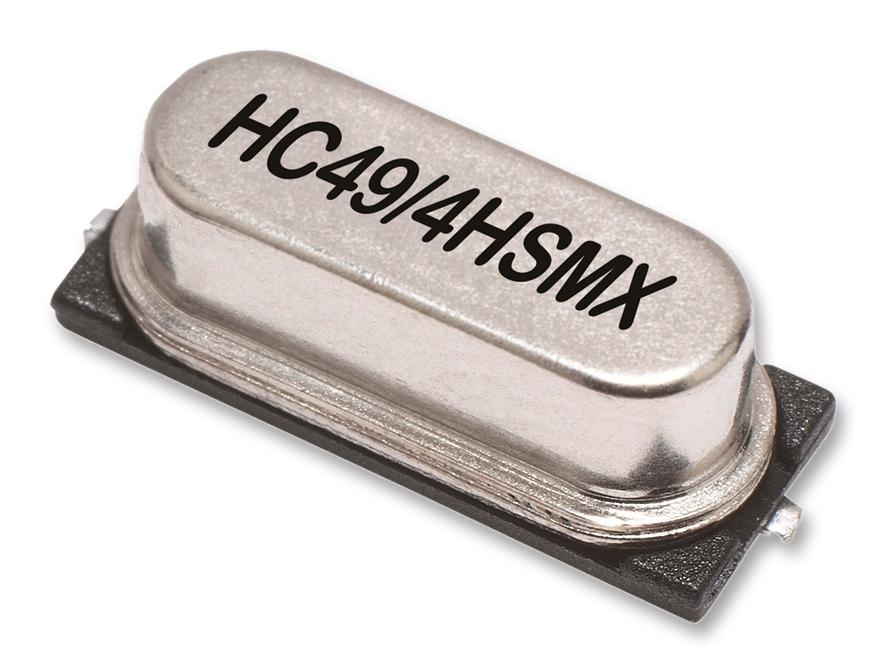

IQD FREQUENCY PRODUCTS LFXTAL017145 Surface-Mount Crystal
Our industry-standard SMD crystal offers reliable performance with a frequency of 10.0MHz, ideal for precise timing in electronic devices. Hermetically sealed and resistance welded in an inert atmosphere, it features a gull wing lead mount for easy surface-mount assembly. With a frequency tolerance of +30ppm at 25°C, stability of +50ppm, and operating temperature range from -10°C to 60°C, it suits a variety of industrial and consumer electronics. Meets RoHS and REACH compliance, packaged on a reel for efficient batch processing.
IQD FREQUENCY PRODUCTS LFXTAL017145 Surface-Mount Crystal Specifications:
- Frequency: 10.0MHz
- Frequency Tolerance: +30ppm @ 25°C
- Frequency Stability: +50ppm
- Operating Temperature Range: -10°C to 60°C
- Ageing: +5ppm per year @ 25°C
- Load Capacitance: 30pF
- Shunt Capacitance: 7pF max
- Drive Level: 500µW max
- ESR: 400 ohms max
- Shock Resistance: 981m/s², 6ms, 3 times in each plane
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 500Hz, 98.1m/s² for 30 mins in each plane
- Storage Temperature Range: -55°C to 125°C
- Compliance: RoHS and REACH compliant
- Packaging: Reel, 1000 units per reel, EIA-481-D standard
- Outline Dimensions: 11.44mm x 4.3mm max (for HC49/4HSMX model)
Buy the IQD Frequency Products LFXTAL017145 – Reliable Surface-Mount Crystal for Industrial Applications
Purchase the IQD Frequency Products LFXTAL017145 surface-mount crystal online today and enjoy reliable, precise frequency stability for your electronic projects. Designed with hermetic sealing and resistance welded leads, it provides consistent performance even in challenging environments. Its compatibility with RoHS and REACH standards ensures eco-friendly and compliant operation. Packaged on reels for efficient assembly, this crystal is your ideal choice for industrial, communication, and consumer electronics requiring high precision, stability, and durability. Order now and ensure your device's timing accuracy.
Buy IQD Frequency Products LFXTAL017145 now and experience unmatched reliability and performance in industrial timing applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL017145?
You can click on the BUY or RFQ button to purchase LFXTAL017145 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL017145?
You can download the LFXTAL017145 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL017145?
IQD FREQUENCY PRODUCTS
