IQD FREQUENCY PRODUCTS LFXTAL017146 Frequency Crystal

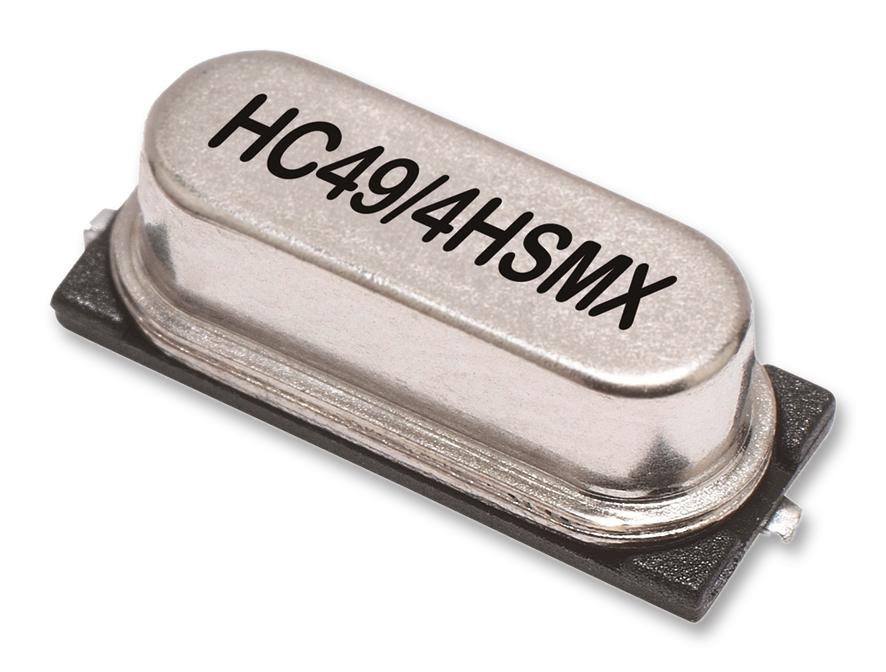

This industry-standard SMD crystal operates at 20.0MHz with high precision, featuring resistance-welded, hermetically sealed glass-to-metal construction in an inert atmosphere. The model HC49/4HSMX offers gull wing leads mounted onto a plastic former, ensuring reliable mounting. It provides +30ppm frequency tolerance at 25°C, +50ppm stability, and operates within -10°C to 60°C temperature range. With an aging rate of +5ppm per year, it supports applications requiring stability, low ESR, and RoHS compliance. Suitable for modern electronic devices, it combines durability and high performance with convenient tape and reel packaging for automated assembly.
IQD FREQUENCY PRODUCTS LFXTAL017146 Frequency Crystal Specifications:
- Frequency: 20.0MHz
- Frequency Tolerance @ 25°C: +30.00ppm
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -10°C to 60°C
- Aging: +5ppm per year @ 25°C
- Load Capacitance: 30.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 400 max
- Shock resistance: 981m/s, 6ms, 3 times in each plane
- Vibration resistance: 10Hz-60Hz, 0.75mm amplitude; 500Hz, 98.1m/s², 30 mins in each plane
- Storage Temperature Range: -55°C to 125°C
- RoHS & REACh compliant
- Packaging: Reel with 1,000 units; EIA-481-D compatible tape and reel
- Outline size: 11.44mm x 4.3mm (HC49/4HSMX), height options available
- Solder Pad Layout: Standard gull wing design
Buy the Buy IQD Frequency Products Crystal Part Number LFXTAL017146 Online
Purchase the IQD Frequency Products crystal LFXTAL017146 online for precise 20MHz operation with hermetic sealing and gull wing leads. Ideal for high-performance electronics requiring stability and durability, this crystal features +30ppm tolerance, +50ppm stability, and an operating range from -10°C to 60°C. Packaged in tape and reel for automated assembly, it is RoHS and REACh compliant, making it suitable for industrial, consumer, and communication devices demanding reliable frequency control and long-lasting performance.
Get IQD Frequency Products crystal LFXTAL017146 today—designed for high stability and reliable performance in electronic applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL017146?
You can click on the BUY or RFQ button to purchase LFXTAL017146 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL017146?
You can download the LFXTAL017146 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL017146?
IQD FREQUENCY PRODUCTS
