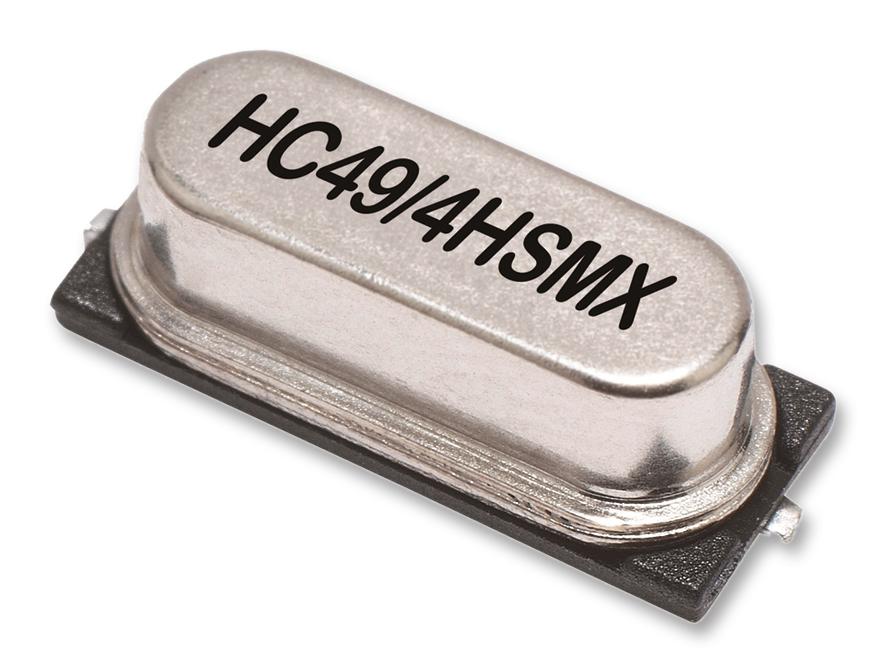

IQD FREQUENCY PRODUCTS LFXTAL018153 Quartz Crystal
This industry-standard SMD quartz crystal operates at 4.91520MHz, hermetically sealed in an inert atmosphere with glass-to-metal seals on leads. Features resistance welding for durability, lead wires mounted on a plastic former, and gull-wing mounting capability. Suitable for precise timing in electronic applications, it withstands environmental stresses with robust shock and vibration resistance, and operates over a temperature range of -10°C to 60°C. It offers low ESR, minimal aging, and complies with RoHS and REACH standards, packaged in tapes and reels for efficient assembly.
IQD FREQUENCY PRODUCTS LFXTAL018153 Quartz Crystal Specifications:
- Frequency: 4.91520MHz
- Frequency Tolerance: +30.00ppm @ 25°C ± 2°C
- Frequency Stability: ±50.00ppm over temperature
- Temperature Range: -10°C to 60°C
- Operating Temperature Range: -55°C to 125°C
- Overtone: Fundamental
- Ageing: ±5ppm per year @ 25°C
- Load Capacitance: 16.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500μW max
- ESR: 130.000 max
- Shock Resistance: 981m/s², 6ms, three axes
- Vibration: 10Hz-60Hz with 0.75mm amplitude, 60Hz-500Hz, 98.1m/s² for 30 min in three axes
- Storage Temperature: -55°C to 125°C
- Package: Reel, 1,000 units, compliant with EIA-481-D
- Package Height Options: HC49/4HSMX up to 4.3mm, HC49/3.5HSMX 3.7mm, HC49/2.5HSMX 2.85mm
- Dimensions: 11.4mm ±0.2, typical lead length 10.3mm, body length approx 13.4mm
- Solder Pad Layout: Compatible with surface-mount PCB assembly
- Certifications: RoHS, REACH compliant
Buy the IQD Series Quartz Crystal: 4.91520MHz LFXTAL018153
Purchase the IQD Series Quartz Crystal with 4.91520MHz frequency, hermetically sealed and RoHS compliant. Designed for high precision timing applications, it offers excellent temperature stability, low ESR, and reliable shock and vibration resistance. Packaged in tape and reel format, this crystal ensures easy integration into automated assembly lines. Ideal for oscillators, clocks, and communication equipment, it guarantees long-term stability, minimal aging, and environmental robustness for reliable operation in demanding electronics projects.
Get IQD Series Quartz Crystal LFXTAL018153 today—built for precision and long-lasting durability in your electronic designs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL018153?
You can click on the BUY or RFQ button to purchase LFXTAL018153 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL018153?
You can download the LFXTAL018153 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL018153?
IQD FREQUENCY PRODUCTS
