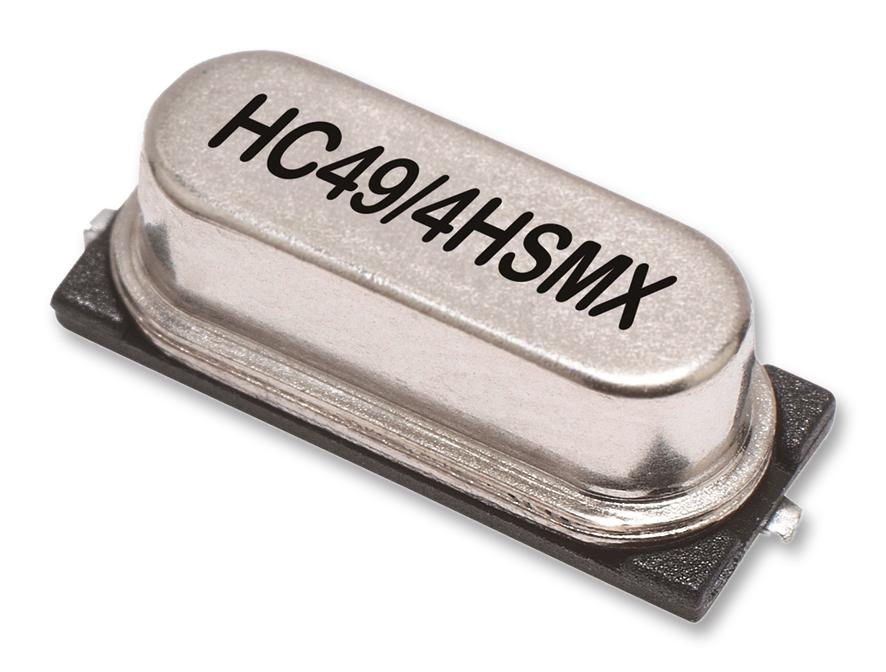

IQD FREQUENCY PRODUCTS LFXTAL020423 Surface Mount Crystal
This industry-standard SMD crystal features resistance welding, hermetic sealing in an inert atmosphere, and glass-to-metal seals on leads. It operates at 8.0MHz with a tolerance of +30.00ppm and a stability of +50.00ppm, suitable for various temperature ranges from -20°C to 70°C. Encased on a plastic former, it is designed for stability and durability in electronic circuits. Its environment resistance includes shock and vibration specifications, with compliance to RoHS and REACH standards, making it ideal for precision timing applications.
IQD FREQUENCY PRODUCTS LFXTAL020423 Surface Mount Crystal Specifications:
- Frequency: 8.0MHz
- Frequency Tolerance: +30.00ppm
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -20°C to 70°C
- Shunt Capacitance: 7pF max
- Load Capacitance: 18.00pF
- Drive Level: 500uW max
- ESR: 40.000 max
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1m/s² for 30min in 3 orthogonal planes
- Storage Temperature Range: -55°C to 125°C
- Compliance: RoHS 2011/65/EU, REACh
- Packaging: Reel, 1,000 pcs, tape & reel IEC-481-D standard
- Outline Dimensions: 11.4±0.2mm length, 3.8mm max width
Buy the IQD Series HC49/4HSMX Crystal: LFXTAL020423
Order the IQD Series HC49/4HSMX crystal online for reliable timing solutions. Engineered with hermetic sealing and resistance to shock and vibration, this 8.0MHz crystal offers excellent stability, tolerance, and environmental durability. Suitable for industrial, telecommunications, and precision electronics, it ensures consistent performance over a wide temperature range. Packaged in reels for seamless manufacturing integration, it meets RoHS and REACH standards, delivering quality and precision for demanding electronic projects and production lines.
Get IQD Series HC49/4HSMX crystal today—built for precise timing and long-lasting durability in your electronic applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL020423?
You can click on the BUY or RFQ button to purchase LFXTAL020423 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL020423?
You can download the LFXTAL020423 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL020423?
IQD FREQUENCY PRODUCTS
