IQD FREQUENCY PRODUCTS LFXTAL024940 Quartz Crystal
The HC49/4HSMX is an industry-standard SMD crystal designed for reliable frequency stabilization in electronic circuits. It features resistance-welded, hermetically sealed glass-to-metal leads, mounted onto a plastic former for gull-wing mounting, ensuring durability and high performance. Operating at 4.0MHz, this crystal maintains frequency stability with ±30ppm tolerance at 25°C and offers excellent environmental resistance, including shock, vibration, and temperature range from -20°C to 70°C. Suitable for precise timing applications, it complies with RoHS and REACH standards, packaged in reels of 1,000 for efficient assembly.
IQD FREQUENCY PRODUCTS LFXTAL024940 Quartz Crystal Specifications:
- Frequency: 4.0MHz
- Tolerance: ±30ppm @ 25°C
- Frequency Stability: +50.00ppm over temperature -20°C to 70°C
- Temperature Range: -20°C to 70°C
- Overtone Order: Fundamental
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 130.000 max
- Package Type: HC49/4HSMX with gull-wing leads
- Package Height: 4.3mm max
- Storage Temperature: -55°C to 125°C
- Shock Resistance: 981 m/s², 6ms, 3 times in each of 3 planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1m/s², 30 mins in 3 planes
- RoHS and REACH compliant, MSL rating: Not Applicable
- Pack Style: Reel, Pack Size: 1000

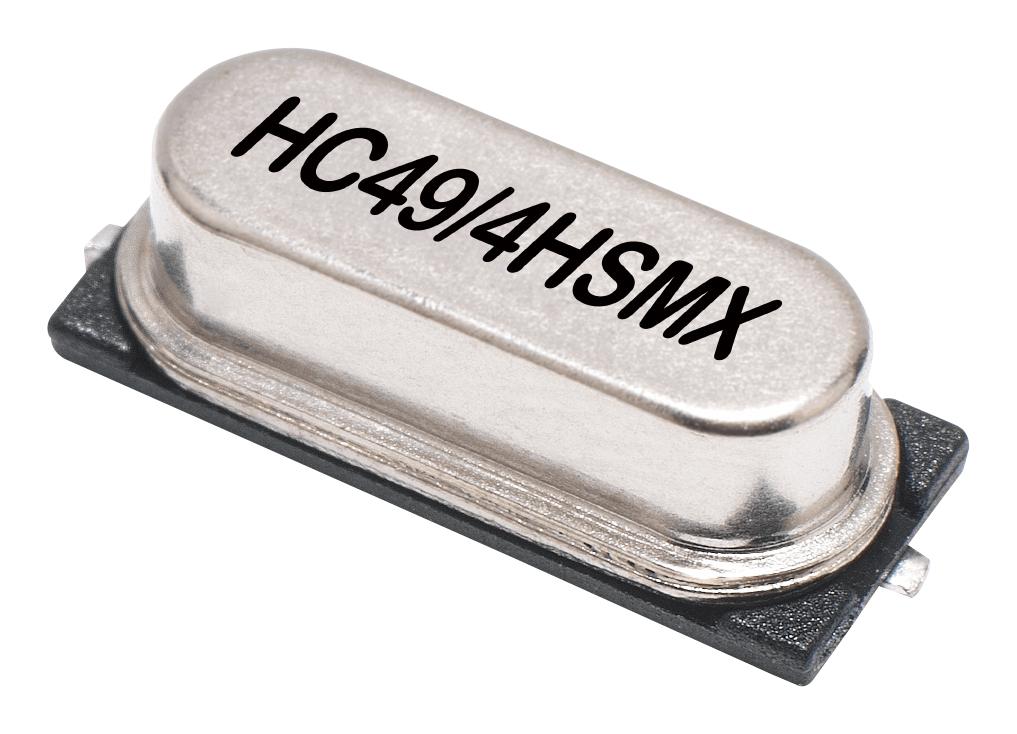

Buy the Buy IQD Frequency Products HC49/4HSMX Part Number LFXTAL024940 Online
Purchase the IQD Frequency Products HC49/4HSMX quartz crystal online today for reliable frequency control in your electronic projects. With a frequency of 4.0MHz, it ensures high stability, withstanding shock, vibration, and temperature variations from -20°C to 70°C. Its hermetically sealed glass-to-metal construction guarantees durability and consistent performance for industrial, consumer, and communication devices. Packaged in reels of 1,000 units, this crystal is RoHS and REACH compliant, making procurement efficient and environmentally responsible, ideal for assembly line integration and precision timing.
Buy IQD Frequency Products HC49/4HSMX now and experience unmatched reliability and precise timing in your electronic applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL024940?
You can click on the BUY or RFQ button to purchase LFXTAL024940 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL024940?
You can download the LFXTAL024940 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL024940?
IQD FREQUENCY PRODUCTS
