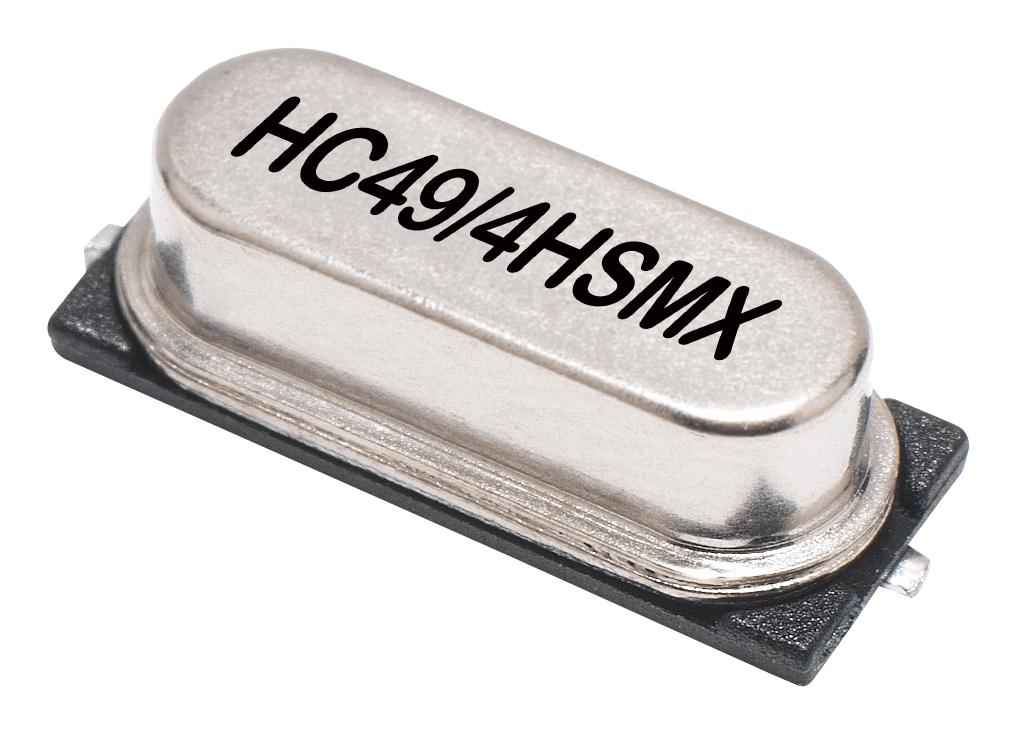

IQD FREQUENCY PRODUCTS LFXTAL026548 Quartz Crystal
This industry-standard SMD quartz crystal operates at 24.0MHz with tight frequency tolerances of +30.00ppm and stability of +50.00ppm. Hermetically sealed in an inert atmosphere with glass-to-metal seals, it features resistance welding and gull-wing lead mounting for reliability. Suitable for high-precision timing in electronic devices, it withstands shock, vibration, and extreme temperatures from -55°C to 125°C. Packaged in reel form with 1,000 units, compliant with RoHS and REACh regulations, it ensures durability and consistent performance in industrial and consumer electronics.
IQD FREQUENCY PRODUCTS LFXTAL026548 Quartz Crystal Specifications:
- Frequency: 24.0MHz
- Frequency Tolerance: +30.00ppm
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 40.000 max
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes
- Vibration: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1m/s², 30 mins in each of 3 mutually perpendicular planes
- Package Height Options: HC49/4HSMX 4.3mm max, HC49/3.5HSMX 3.7mm max, HC49/3HSMX 3.1mm max, HC49/2.5HSMX 2.85mm max
- Package: Reel, 1,000 units, tape & reel in accordance with IEC-481-D
- Compliance: RoHS (2011/65/EU), REACh
- Outline Dimensions: 11.4+0.2 mm length, 3.8 mm max width, solder pad layout 13.4 mm max length
- Package Seal: Hermetically sealed glass-to-metal
- Lead Mount: Gull-wing design, resistance welded
Buy the Buy Industry Standard Quartz Crystal Part Number LFXTAL026548 Online
Order the LFXTAL026548 quartz crystal now to ensure precise frequency stability for your electronic applications. This hermetically sealed, RoHS-compliant SMD component offers a frequency of 24.0MHz with tight tolerances and excellent shock and vibration resistance. Packaged in 1,000 units on reels, it’s suitable for industrial, communications, and consumer electronics requiring high reliability and long-term stability. Trust this industry-standard crystal for consistent operation across a wide temperature range, easy installation, and proven durability in challenging environments.
Get LFXTAL026548 quartz crystal today—built for high stability and durable performance in electronic timing circuits.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL026548?
You can click on the BUY or RFQ button to purchase LFXTAL026548 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL026548?
You can download the LFXTAL026548 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL026548?
IQD FREQUENCY PRODUCTS
