IQD FREQUENCY PRODUCTS LFXTAL026900 Crystal Oscillator

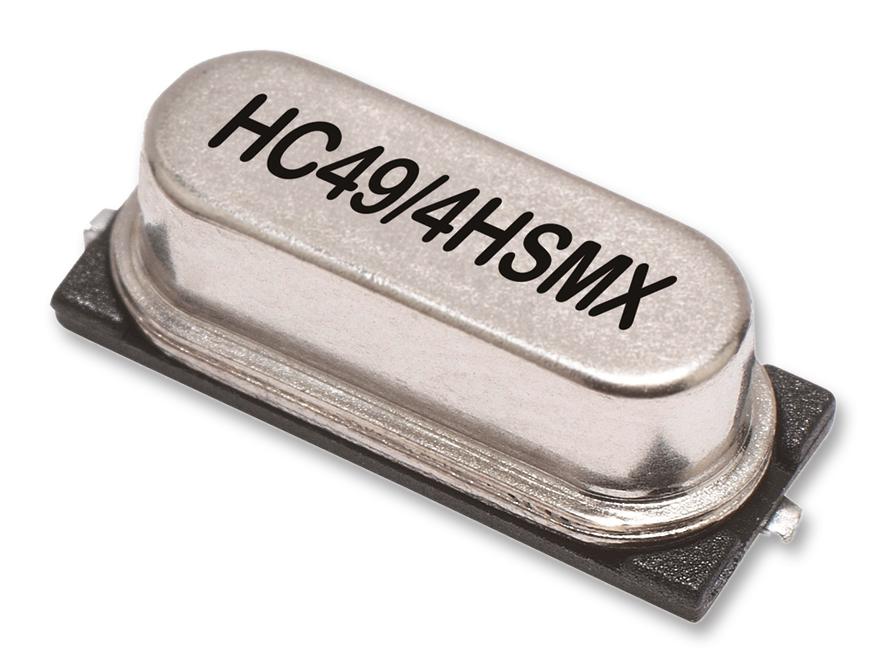

The HC49/4HSMX is a high-precision industry standard surface-mount crystal oscillator designed for various electronic applications, offering excellent frequency stability and low aging rate. Encased in a hermetically sealed glass-to-metal package, it features a 6.0 MHz fundamental overtone frequency with a tolerance of +20.00 ppm and operates within -10°C to 60°C. The crystal has a load capacitance of 16 pF, low ESR, and withstands environmental stresses like shock and vibration. Ideal for use in clocks, communication, and control systems with reliable performance and compliance with RoHS and REACH standards.
IQD FREQUENCY PRODUCTS LFXTAL026900 Crystal Oscillator Specifications:
- Frequency: 6.0 MHz
- Frequency Tolerance: +20.00 ppm
- Temperature Range: -10°C to 60°C
- Load Capacitance: 16 pF
- Shunt Capacitance: 7 pF max
- Drive Level: 500 μW max
- ESR: 60 max
- Shock Resistance: 981 m/s², 6ms, 3 times in each plane
- Vibration: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1 m/s², 30 mins
- Storage Temperature: -55°C to 125°C
- Package: Reel (1000 pcs) with tape in accordance with IEC-481-D
- Package Height Options: 4.3mm, 3.7mm, 3.1mm, 2.85mm
Buy the Buy IQD Frequency Products HC49/4HSMX Part Number LFXTAL026900 Online
Order the IQD Frequency Products HC49/4HSMX crystal oscillator online now and experience reliable, high-precision frequency stability essential for communication, automation, and control systems. This hermetically sealed SMD crystal offers a 6.0 MHz fundamental frequency with +20 ppm tolerance, excellent aging performance, and environmental resilience, meeting RoHS and REACH standards. The reel packaging of 1,000 units ensures easy bulk procurement. Whether for manufacturing or repair, buy this proven component today for optimal device performance and long-term reliability.
Get IQD Frequency Products HC49/4HSMX today—designed for high precision timing in electronic systems, featuring hermetic sealing and robust environmental resistance.
