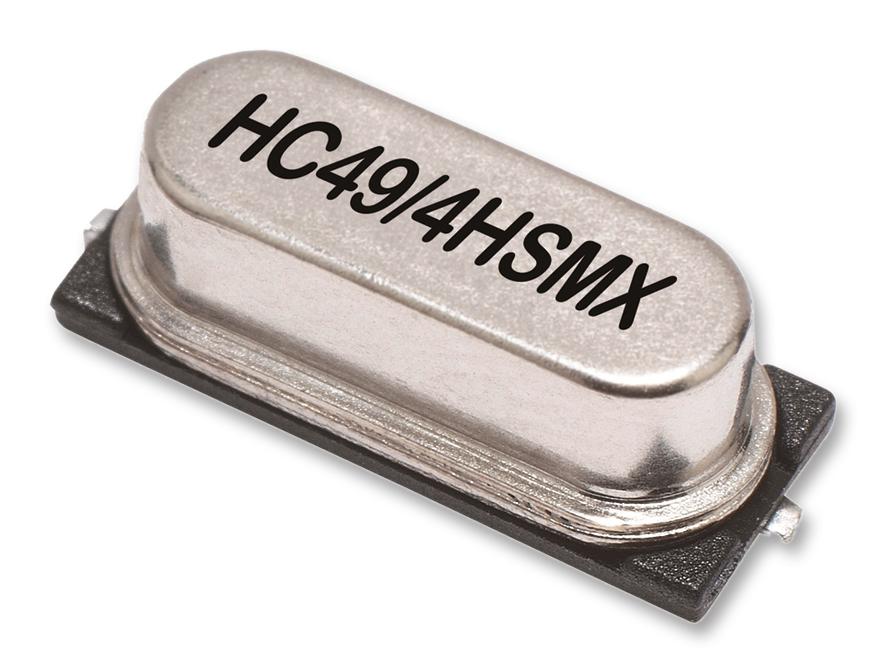

IQD FREQUENCY PRODUCTS LFXTAL028392 Surface Mount Crystal
The LFXTAL028392 is an industry-standard SMD crystal featuring resistance welding and hermetic sealing in an inert atmosphere, ensuring durability and stability. It utilizes a glass-to-metal seal on leads and is mounted on a plastic former for gull wing surface-mounting. Operating at 4.91520MHz, with a tolerance of ±30 ppm and frequency stability of +50 ppm, it supports a temperature range of -20°C to 70°C. Built for reliable electronic applications, it offers low ESR, a drive level of 500µW, and RoHS and REACh compliance, making it suitable for modern manufacturing needs.
IQD FREQUENCY PRODUCTS LFXTAL028392 Surface Mount Crystal Specifications:
- Frequency: 4.91520MHz
- Frequency Tolerance: +30.00ppm @ 25°C
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -20°C to 70°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500µW max
- Equivalent Series Resistance (ESR): 1300 max
- Shock Resistance: 981m/s, 6ms, 3 times in each of 3 planes
- Vibration: 10Hz-60Hz, 0.75mm amplitude, 500Hz, 98.1m/s², 30 mins in 3 planes
- Storage Temperature Range: -55°C to 125°C
- Packaging: Reel with 1,000 units, compliant with EIA-481-D, RoHS and REACh compliant
- Outline Dimensions: 11.44mm length with various package heights (up to 4.3mm for HC49/4HSMX)
Buy the Buy IQD Frequency Products Crystal Part Number LFXTAL028392 Online
Get the IQD Series LFXTAL028392 crystal oscillator online now for your electronic manufacturing or repair needs. This hermetically sealed, industry-standard SMD crystal offers high stability, low ESR, and RoHS compliance, making it ideal for reliable and precise timing applications. Easy to integrate with gull wing mounting and available in reel packaging, it ensures efficient production processes. Purchase online today to benefit from fast delivery and trusted quality, ensuring your projects meet the highest standards of performance and durability.
Order your IQD Series LFXTAL028392 crystal today and ensure precise timing for your electronic projects with reliable, hermetically sealed performance.
