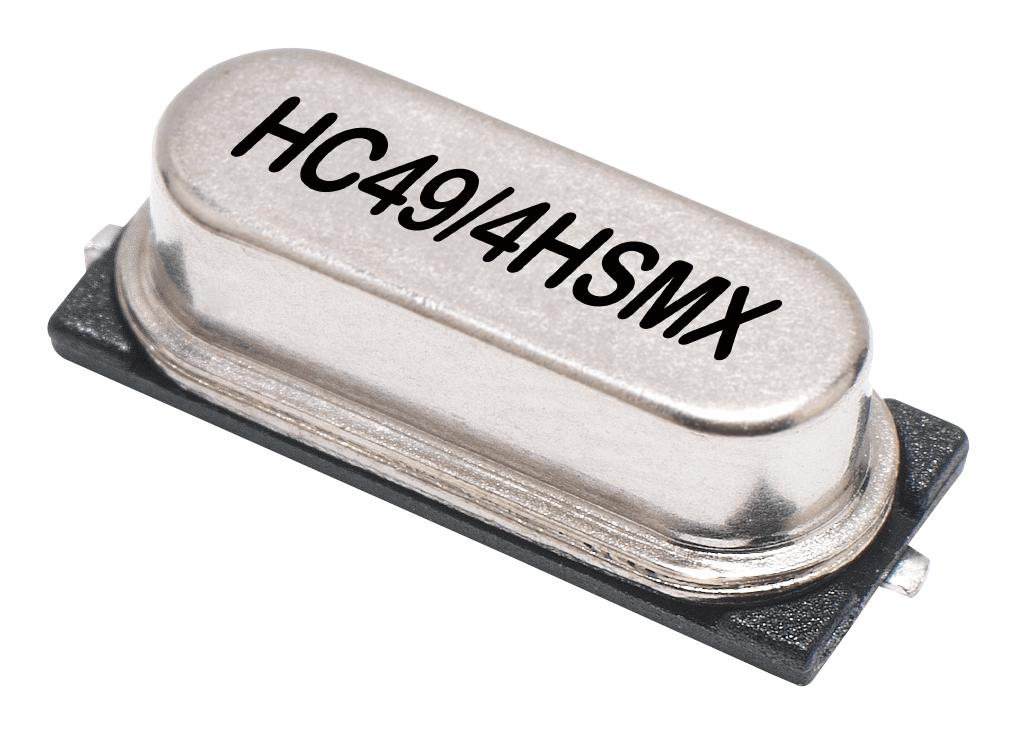

IQD FREQUENCY PRODUCTS LFXTAL029370 Surface Mount Crystal
This industry-standard SMD crystal features resistance welding and hermetic sealing in an inert atmosphere, with glass-to-metal seals on leads. Designed for surface mounting, it employs a gull-wing configuration with lead wires mounted on a plastic former for stability. Operating at 16.0 MHz, it offers high frequency stability, low power consumption, and robust environmental resistance, including shock and vibration durability. Suitable for precise timing applications in electronic devices, it is packaged in tape and reel format, with compliance to industry standards like RoHS and REACh, ensuring reliability and environmental safety.
IQD FREQUENCY PRODUCTS LFXTAL029370 Surface Mount Crystal Specifications:
- Frequency: 16.0MHz ±30.00ppm @ 25°C
- Frequency Tolerance: +50.00ppm
- Frequency Stability: +5ppm per year @ 25°C
- Operating Temperature Range: -20.00 to 70.00°C
- Overtone Order: Fundamental
- Load Capacitance (CL): 18.00pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 500uW max
- Equivalent Series Resistance (ESR): 40.000 max
- Shock Resistance: 981m/s², 6ms, 3 times in each plane
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1m/s², 30 mins per plane
- Storage Temperature Range: -55°C to 125°C
- Package Style: Reel
- Pack Size: 1,000 units
- Compliance: RoHS, REACh, MSL Rating: Not applicable
- Package Height Options: HC4S/4HSMX (4.3mm max), HC49/3.5HSMX (3.7mm max), HC49/3HSMX (3.1mm max), HC49/2.5HSMX (2.85mm max)
- Solder Pad Layout: As per datasheet
- Outline Dimensions: 11.4±0.2mm
- Packaging: Tape & reel according to ElA-481-D, alternative options available
Buy the IQD Frequency Products Series Crystal: LFXTAL029370
Purchase the IQD Frequency Products Series Crystal LFXTAL029370 online today to ensure your electronic devices operate with precise timing. Crafted with resistance welding and hermetic sealing, this crystal offers exceptional stability, durability against shock and vibration, and RoHS compliance for environmental safety. Its compact gull-wing package simplifies mounting, making it ideal for a wide range of applications from consumer electronics to industrial systems. Secure your supply now and benefit from fast delivery, industry-leading quality, and technical support tailored to your needs.
Order your IQD Frequency Products Series Crystal LFXTAL029370 today and enhance your electronic timing projects with reliable, industry-standard performance.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL029370?
You can click on the BUY or RFQ button to purchase LFXTAL029370 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL029370?
You can download the LFXTAL029370 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL029370?
IQD FREQUENCY PRODUCTS
