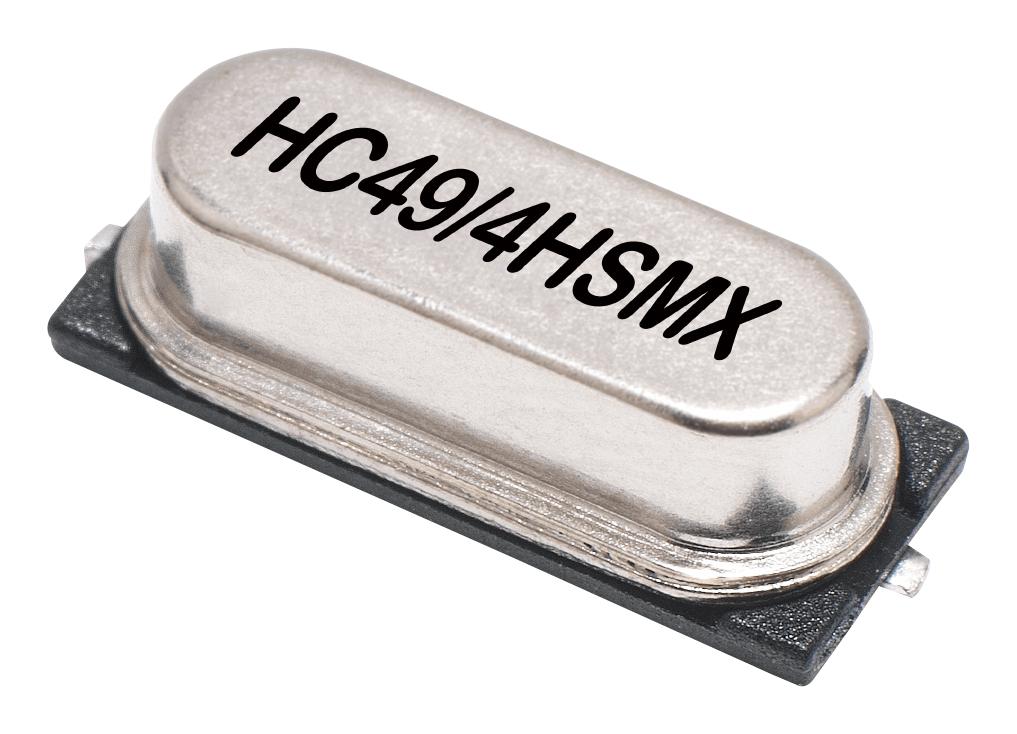

IQD FREQUENCY PRODUCTS LFXTAL033575 SMD Crystal Oscillator
This industry-standard SMD crystal features resistance welding and hermetic sealing in an inert atmosphere, ensuring durability and stability. It includes glass-to-metal seals on leads for reliable connections, and lead wires mounted onto a plastic former for gull-wing mounting. Operating at 7.37280MHz with a frequency tolerance of +30.00ppm @ 25°C #2°C, it offers excellent temperature stability from -20°C to 70°C. Compliant with RoHS and REACh standards, this crystal packs in a reel of 1,000 units, making it ideal for surface-mount applications in various electronic devices.
IQD FREQUENCY PRODUCTS LFXTAL033575 SMD Crystal Oscillator Specifications:
- Frequency: 7.37280MHz
- Frequency Tolerance: +30.00ppm @ 25°C #2°C
- Frequency Stability: ±50.00ppm over -20°C to 70°C
- Operating Temperature Range: -20°C to 70°C
- Overtone Order: Fundamental
- Load Capacitance (CL): 18.00pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 500uW max
- ESR: 60.000 max
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30mins in 3 mutually perpendicular planes
- Storage Temperature Range: -55°C to 125°C
- Package: Reel, Pack Size: 1,000 units
- Package Height Options: HC4S/4HSMX 4.3mm max, HC49/3.5HSMX 3.7mm max, HC49/3HSMX 3.1mm max, HC49/2.5HSMX 2.85mm max
- Solder Pad Layout: Standard SMD configuration
- Compliance: RoHS and REACh compliant
- Packaging: Tape & reel per IEC 802-481-D, with alternative options available
Buy the Buy Industry Standard SMD Crystal Part Number LFXTAL033575 Online
Order the SMD crystal oscillator LFXTAL033575 online today and benefit from reliable performance with hermetic sealing, precise frequency stability, and compliance with industry standards. This high-quality surface-mount component is perfect for various electronic applications, offering easy integration with gull-wing leads and a robust reel packaging of 1,000 units. Enhance your manufacturing process with this durable and RoHS-compliant crystal designed to deliver consistent performance over a broad temperature range, ensuring your devices operate accurately and efficiently.
Buy Industry Standard SMD Crystal LFXTAL033575 now and experience unmatched durability, stability, and easy surface-mount installation for your electronic projects.
