IQD FREQUENCY PRODUCTS LFXTAL033580 Surface-Mount Crystal Oscillator
This industry-standard SMD crystal is hermetically sealed in an inert atmosphere with glass-to-metal seals on leads, ensuring high reliability and stability. It features lead wires mounted on a plastic former for gull-wing mounting, making it suitable for surface-mount applications. Operating at 12.0MHz with a frequency tolerance of +30.00ppm at 25°C, it has excellent frequency stability of +50.00ppm over temperature. Designed for durability, it withstands shock, vibration, and temperature extremes, ideal for various electronics requiring precise timing and oscillation, including consumer, industrial, and communication devices.
IQD FREQUENCY PRODUCTS LFXTAL033580 Surface-Mount Crystal Oscillator Specifications:
- Frequency: 12.0MHz
- Frequency Tolerance: +30.00ppm @ 25°C
- Frequency Stability: +50.00ppm over temperature
- Operating Temperature Range: -20.00 to 70.00°C
- Ageing: +5ppm per year @ 25°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- Equivalent Series Resistance (ESR): 40.000 max
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1m/s², 30 mins in 3 planes
- Storage Temperature Range: -55 to 125°C
- Package Style: Reel
- Package Height Options: HC4S/4HSMX 4.3mm, HC49/3.5HSMX 3.7mm, HC49/3HSMX 3.1mm, HC49/2.5HSMX 2.85mm
- Package Outline: 11.4+0.2mm
- Packaging: Tape & reel per IEC-481-D, alternative options available
- Compliance: RoHS, REACh, MSL Rating JDEC-STD-033
- Part Number: LFXTAL033580, Pack Size: 1,000

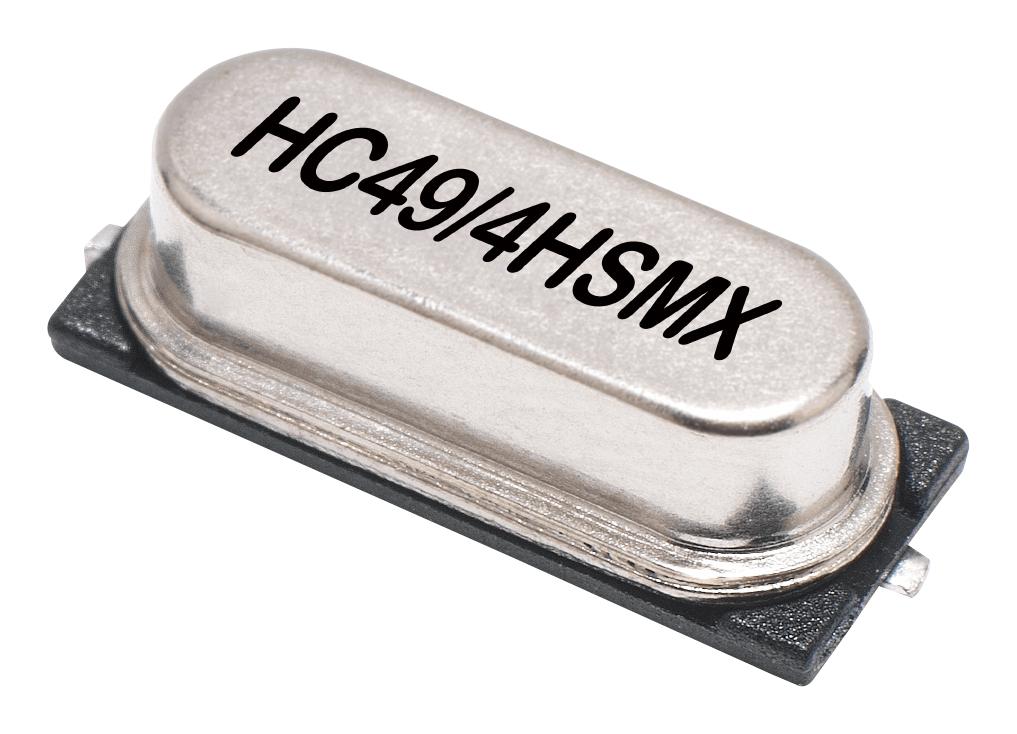

Buy the IQD Series HC4S/4HSMX 12MHz Crystal: LFXTAL033580
Purchase the IQD Series HC4S/4HSMX crystal now and enjoy reliable, high-precision timing for your electronic applications. This hermetically sealed SMD crystal with gull-wing leads ensures durability, stability, and excellent performance under shock, vibration, and temperature extremes. Perfect for industrial, consumer, and communication devices, it offers a frequency of 12MHz with tight tolerance and stability. Available in tape and reel packaging, this crystal guarantees consistent quality and easy integration into your surface-mount PCB designs for optimal circuit performance.
Order your IQD Series HC4S/4HSMX crystal today and ensure high stability and reliability for your electronic timing needs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL033580?
You can click on the BUY or RFQ button to purchase LFXTAL033580 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL033580?
You can download the LFXTAL033580 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL033580?
IQD FREQUENCY PRODUCTS
