IQD FREQUENCY PRODUCTS LFXTAL034099 Quartz Crystal
The quartz crystal is an industrial-grade low-cost SMD component based on the HC49/4H design, hermetically sealed in inert atmosphere with glass-to-metal leads. It operates across a frequency range of 3.2MHz to 100MHz, with frequency tolerances from +10.00ppm to +100.00ppm at 25°C, and stability up to +500ppm over temperature. Designed with low drive levels of 500µW and load capacitance from 10.0pF to 75.0pF, it features robust environmental resilience including shock and vibration resistance. Suitable for precision timing in various industrial and electronic applications.
IQD FREQUENCY PRODUCTS LFXTAL034099 Quartz Crystal Specifications:
- Frequency Range: 3.2MHz to 100MHz
- Frequency Tolerance: +10.00ppm to +100.00ppm at 25°C
- Frequency Stability: Up to +500ppm over temperature
- Operating Temperature: -55°C to 105°C
- Electrical Parameters: Load Capacitance 10.0pF to 75.0pF, Shunt Capacitance max 7pF, Drive Level max 500µW
- Environmental Resistance: Shock 981m/s², 6ms, Vibration 10Hz-60Hz & 60Hz-500Hz, Storage Temp -55°C to 125°C
- Outline Dimensions: 11.4mm x 4.2mm (height options up to 4.3mm), Specially designed for SMD mounting
- Packaging: Tape & reel (250, 500, 1000 pcs), bulk, cut-in options
- Compliance: RoHS and REACh compliant, MSL Not Applicable

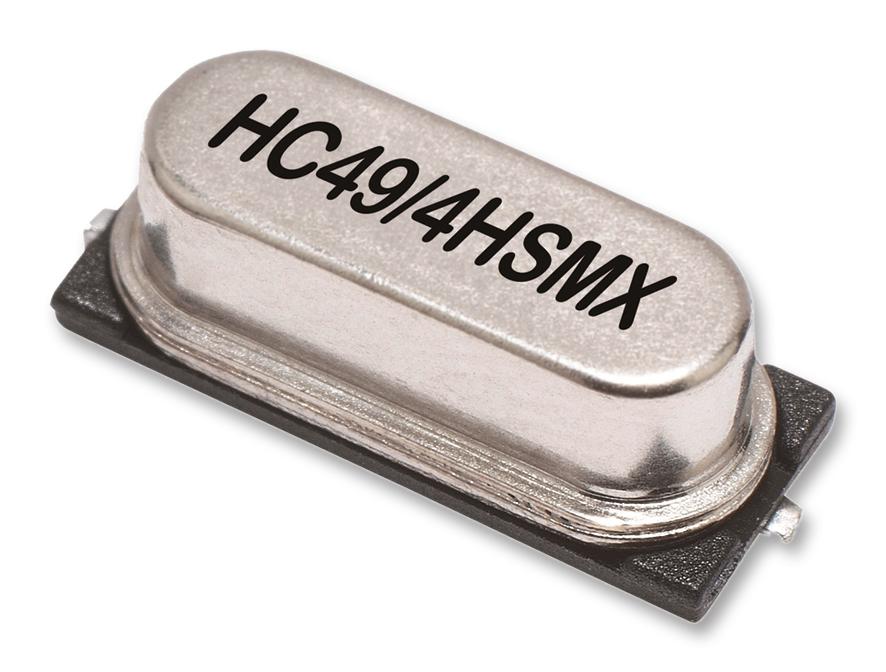

Buy the Brand Name HC49/4H – Reliable Quartz Crystal for Industrial Applications
Purchase the high-precision quartz crystal online today to secure reliable frequency stability for your industrial and electronic projects. Our HC49/4H crystals offer stable operation from 3.2MHz to 100MHz, hermetically sealed for durability, with various packaging options for easy integration. Designed with low drive levels and wide temperature operation from -55°C to 105°C, these crystals are suitable for a broad range of timing and frequency control applications. Order now to take advantage of fast delivery and competitive pricing for your manufacturing or research needs.
Order your Brand Name HC49/4H quartz crystal today and ensure your electronic projects benefit from reliable, high-performance timing components.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL034099?
You can click on the BUY or RFQ button to purchase LFXTAL034099 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL034099?
You can download the LFXTAL034099 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL034099?
IQD FREQUENCY PRODUCTS
