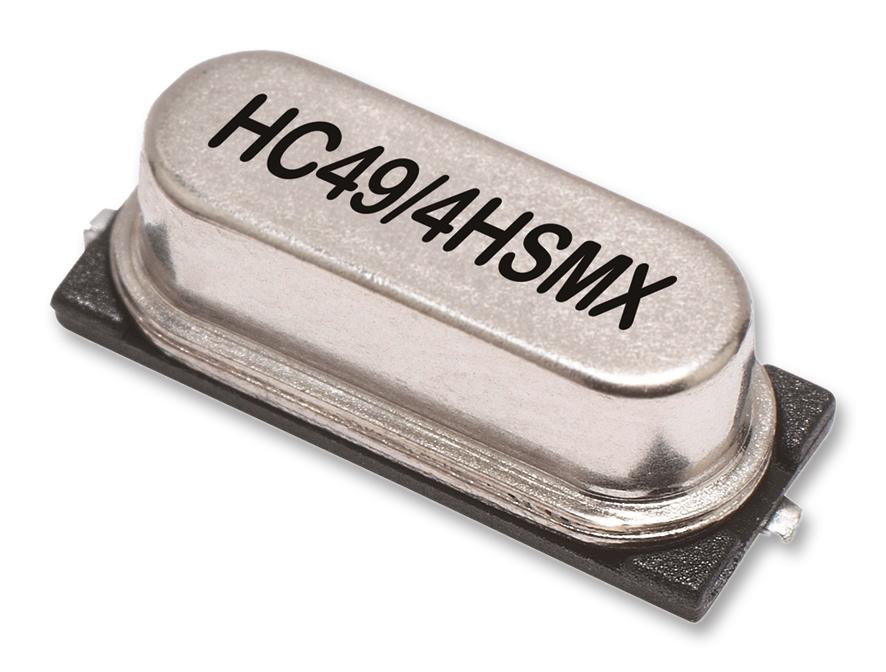

IQD FREQUENCY PRODUCTS LFXTAL035599 Surface Mount Crystal
This industry-standard SMD crystal is hermetically sealed in an inert atmosphere with resistance welding and glass-to-metal seals on leads, ensuring reliability. Model HC49/4HSMX features gull wing lead mounting for easy surface mounting. Operating at 16.0MHz with a tolerance of ±30ppm at 25°C, it offers stability within ±30ppm, ideal for precise timing applications. Capable of withstanding shock and vibration, it handles temperatures from -20°C to 70°C and ages at about 5ppm annually. RoHS and REACh compliant, it comes in reel packaging for high-volume manufacturing. Suitable for oscillators and electronic systems requiring frequency precision and durability.
IQD FREQUENCY PRODUCTS LFXTAL035599 Surface Mount Crystal Specifications:
- Frequency: 16.0MHz
- Frequency Tolerance: ±30ppm at 25°C
- Frequency Stability: ±30ppm
- Operating Temperature Range: -20°C to 70°C
- Ageing: +5ppm per year at 25°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500μW max
- Equivalent Series Resistance (ESR): 400 max
- Shock Resistance: 981m/s², 6ms, 3 axes
- Vibration Resistance: 10Hz-60Hz/0.75mm, 60Hz-500Hz/98.1m/s²
- Storage Temperature Range: -55°C to 125°C
- Compliance: RoHS and REACh
- Packaging: Reel Tape & reel, 1,000 units per pack; alternative options available
- Package Height Options: HC49/4HSMX 4.3mm max, HC49/3HSMX 3.1mm max, HC49/2.5HSMX 2.85mm max
- Solder Pad Layout: Standard for surface mounting
Buy the Buy IQD Frequency Products Part Number LFXTAL035599 Online
Enhance your electronic projects with the high-quality IQD Surface Mount Crystal. Featuring 16MHz frequency, ±30ppm tolerance, and robust shock and vibration resistance, this hermetically sealed crystal guarantees reliable performance across temperature ranges from -20°C to 70°C. Manufactured under RoHS and REACh standards, it offers stability and durability suitable for oscillators, timing circuits, and communication devices. Available in reel packaging, it facilitates large-scale manufacturing with ease. Invest in this reliable component for precise and long-lasting electronic timing solutions.
Order your IQD SeriesHC49/4HSMX 16MHz crystal today and ensure your electronic systems operate with precise, reliable frequency performance.
