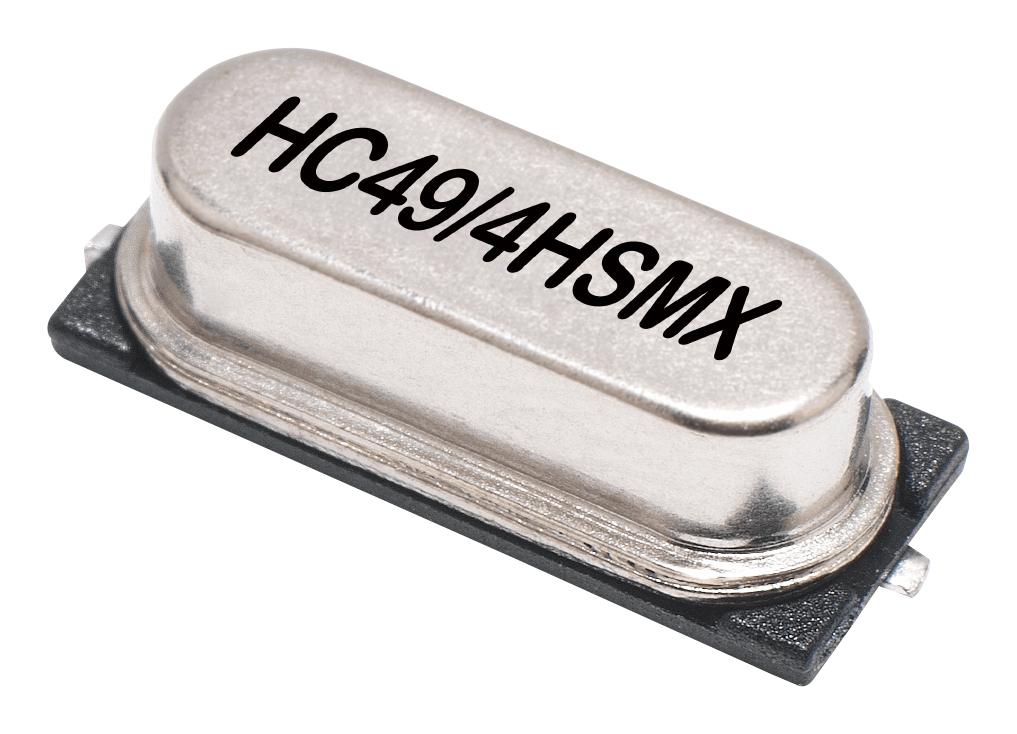

IQD FREQUENCY PRODUCTS LFXTAL036309 Quartz Crystal
This industry standard SMD quartz crystal offers high precision with a frequency of 24.0MHz and a tolerance of +20.00ppm at 25°C. Fully hermetically sealed, resistance welded, and glass-to-metal sealed leads ensure durability and stability. Designed with gull-wing mount leads mounted onto a plastic former for easy Surface Mount Device (SMD) installation, it is suitable for a wide operating temperature range from -20°C to 70°C. It exhibits excellent frequency stability, low drive level of 500µW, and compliance with RoHS and REACh standards, making it ideal for precise, reliable timing applications in electronics manufacturing and automation systems.
IQD FREQUENCY PRODUCTS LFXTAL036309 Quartz Crystal Specifications:
- Frequency: 24.0MHz
- Tolerance: +20.00ppm at 25°C
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -20°C to 70°C
- Overtone Order: Fundamental
- Ageing: +5ppm per year at 25°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500µW max
- ESR: 40.000 max
- Package Height Options: HC4S/4HSMX 4.3mm max, HC4S/3HSMX 3.1mm max, HC49/2.5HSMX 2.85mm max
- Outline Dimensions: 11.4+0.2mm
- Solder Pad Layout: Available as per standard reel packaging
- Packaging: Reel, 1,000 units
- Compliance: RoHS and REACh compliant
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30 mins in 3 planes
- Storage Temperature Range: -55°C to 125°C
Buy the Buy IQD Frequency Products Quartz Crystal Part Number LFXTAL036309 Online
Purchase the IQD SeriesLFXTAL036309 quartz crystal online today and enjoy fast delivery. With a frequency of 24MHz, low ESR, and excellent temperature stability, it is ideal for precise timing in industrial, automotive, and consumer electronics. Designed for Surface Mount Device applications, this hermetically sealed crystal ensures durability and long-term reliability. Whether you're enhancing oscillators, clocks, or communication devices, buy now to optimize your project’s performance with quality components from a trusted manufacturer.
Order your IQD SeriesLFXTAL036309 high-accuracy quartz crystal today and ensure your electronics operate precisely with reliable timing performance.
