IQD FREQUENCY PRODUCTS LFXTAL050789 Surface Mount Oscillator

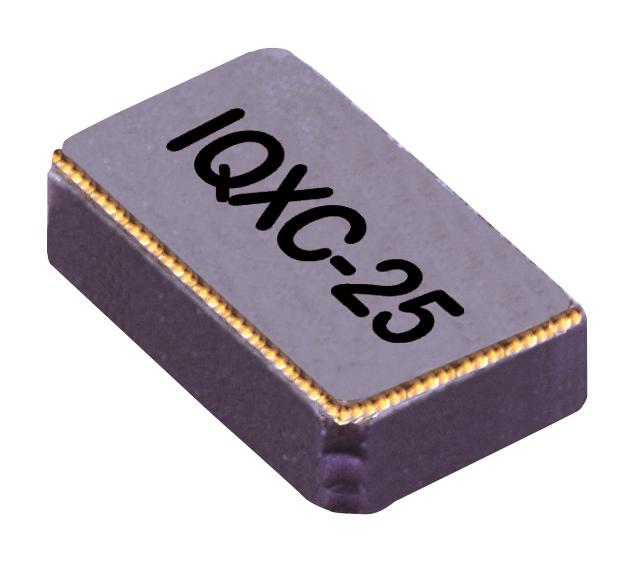

This product features a 2x 1.2mm SMD crystal housed in a hermetically sealed ceramic package with a metal lid, ideal for real-time clock applications. It operates at 32.7680kHz with a tolerance of +20ppm at 25°C and exhibits excellent stability with aging of +3ppm annually. The device offers a load capacitance of 12.50pF, shunt capacitance up to 7pF, a drive level of 500nW, and an ESR maximum of 90kΩ. It withstands shock and vibration per IEC standards, has a storage temperature range of -40°C to 85°C, and is RoHS and REACh compliant, packaged in a reel of 3,000 units.
IQD FREQUENCY PRODUCTS LFXTAL050789 Surface Mount Oscillator Specifications:
- Frequency: 32.7680kHz
- Tolerance: +20ppm @ 25°C
- Aging: +3ppm max per year
- Frequency Stability Coefficient: -0.03/°C typ
- Load Capacitance: 12.50pF
- Shunt Capacitance: 7pF max
- Drive Level: 500nW max
- ESR: 90kΩ max
- Shock: 1000G, 1ms, 3 times in each plane
- Vibration: 1.5mm amplitude, 10Hz-55Hz, 2hrs per plane
- Storage Temperature: -40°C to 85°C
- Pack Size: 3,000 units in reel
- RoHS & REACh compliant
Buy the Buy IQD Frequency Products Crystal Part Number LFXTAL050789 Online
Purchase the IQD Frequency Products hermetically sealed crystal in reel packaging today for reliable and accurate timing solutions. Designed for real-time clock applications, this 32.768kHz SMD crystal offers excellent stability, low aging, and compliance with environmental standards. Its robust construction withstands shock and vibration, making it suitable for a wide range of demanding electronic systems. Ordering online guarantees fast delivery, competitive pricing, and quality assurance, ensuring your project has the best components for precision timing and long-term performance.
Buy IQD Frequency Products LFXTAL050789 crystal now and ensure precise timing for your real-time clock modules and high-stability applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL050789?
You can click on the BUY or RFQ button to purchase LFXTAL050789 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL050789?
You can download the LFXTAL050789 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL050789?
IQD FREQUENCY PRODUCTS
