IQD FREQUENCY PRODUCTS LFXTAL053491 Surface Mount Crystal

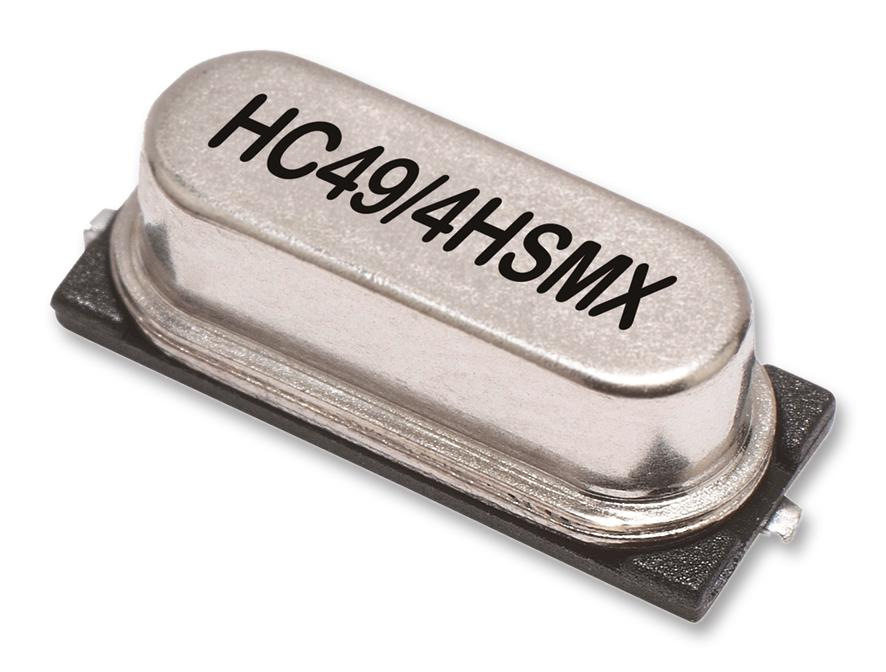

This industry-standard SMD crystal features resistance-welded, hermetically sealed glass-to-metal leads for reliability. Model HC49/4HSMX is mounted on a gull wing plastic former, offering stable frequency at 28.636360MHz with ±30ppm tolerance and stability. Operating temperatures range from -20°C to 70°C, with aging of about 5ppm per year. It supports load capacitance of 18pF, maximum ESR of 400, and withstands shock and vibration. Packaged in reels conforming to EIA-481-D, RoHS, and REACh compliant, suitable for precision electronic applications.
IQD FREQUENCY PRODUCTS LFXTAL053491 Surface Mount Crystal Specifications:
- Frequency: 28.63636MHz
- Frequency Tolerance: +30ppm @ 25°C
- Frequency Stability: +30ppm
- Operating Temperature Range: -20°C to 70°C
- Ageing: +5ppm per year @ 25°C
- Lead Resistance Welded, Hermetically Sealed Glass-to-Metal
- Load Capacitance (Ct): 18pF
- Shunt Capacitance (Co): 7pF max
- Drive Level: 500μW max
- Equivalent Series Resistance (ESR): 400 max
- Shock Resistance: 981m/s² for 6ms, thrice in each plane
- Vibration Resistance: 10Hz-60Hz with 0.75mm amplitude, 60Hz-500Hz at 98.1m/s²
- Storage Temperature Range: -55°C to 125°C
- RoHS and REACh Compliant
- Pack Size: 1000 reels, tape & reel conforming to EIA-481-D
- Package Height Options: HC49/4HSMX max 4.3mm, HC49/3HSMX max 3.1mm, HC49/2.5HSMX max 2.85mm.
Buy the Buy IQD Frequency Products Crystal Part Number LFXTAL053491 Online
Experience reliable performance with this precision surface mount crystal offering 28.63636MHz frequency, hermetic sealing, and rugged construction. Designed for stable operation in temperature ranges from -20°C to 70°C with minimal aging, it features a 18pF load capacitance, maximum ESR of 400, and shock and vibration resistance, making it ideal for modern electronics. Packaged in tape and reel format, this RoHS and REACh compliant crystal ensures high quality and consistency for your oscillator and timing needs — purchase online today for quick delivery and assured quality.
Get IQD Frequency Products LFXTAL053491 today—built for precision and long-lasting durability.
