IQD FREQUENCY PRODUCTS LFXTAL053861 Surface Mount Quartz Crystal

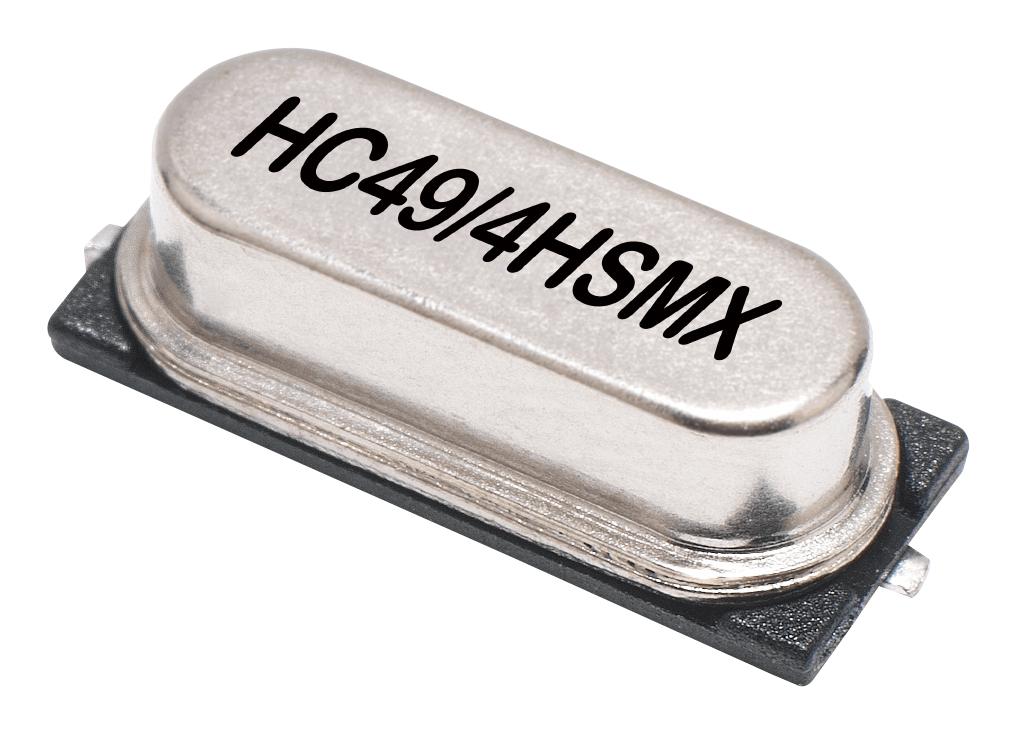

The HC49/4HSMX quartz crystal is an industry-standard SMD component with a frequency of 12.2880MHz, hermetically sealed in an inert atmosphere. It features resistance-welded, glass-to-metal seals on leads and gull-wing mounting wires mounted onto a plastic former for easy surface mounting. Designed for reliable operation, it offers stability over wide temperature ranges, low shunt capacitance, and high shock and vibration resistance, making it suitable for precise timing in various electronic applications.
IQD FREQUENCY PRODUCTS LFXTAL053861 Surface Mount Quartz Crystal Specifications:
- Frequency: 12.2880MHz
- Frequency Tolerance: +20.00ppm @ 25°C ±2°C
- Frequency Stability: ±50.00ppm over temperature
- Operating Temperature Range: -20.00 to 70.00°C
- Overtone Order: Fundamental
- Ageing: +5ppm typ per year @ 25°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500μW max
- ESR: 40.000 max
- Package Height Options: HC4S/4HSMX 4.3mm, HC49/3.5HSMX 3.7mm, HC49/3HSMX 3.1mm, HC49/2.5HSMX 2.85mm
- Packaging: Reel with 1,000 units, compliant with EIA-481-D
- Shock Resistance: 981m/s², 6ms, three times in each plane
- Vibration Resistance: 10Hz-60Hz, 0.75mm; 60Hz-500Hz, 98.1m/s², 30mins per plane
- Storage Temperature: -55°C to 125°C
- RoHS and REACh compliant
- MSL Rating: Not Applicable
Buy the Buy IQD Frequency Products HC49/4HSMX Part Number LFXTAL053861 Online
Purchase the IQD HC49/4HSMX quartz crystal online today for accurate timing in your electronic projects. With hermetic sealing, gull-wing mounting, and wide temperature stability, this 12.2880MHz fundamental crystal ensures dependable operation in consumer electronics, industrial equipment, and communication devices. Its resistance to shock and vibration makes it suitable for demanding environments. Available in reel packaging for easy integration, this high-quality crystal guarantees long-term performance and consistent frequency stability, making it the ideal choice for your precision timing needs.
Buy IQD Frequency Products HC49/4HSMX now and experience unmatched reliability and performance in precise timing circuits.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL053861?
You can click on the BUY or RFQ button to purchase LFXTAL053861 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL053861?
You can download the LFXTAL053861 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL053861?
IQD FREQUENCY PRODUCTS
