IQD FREQUENCY PRODUCTS LFXTAL055382 Quartz Crystal
This industry-standard surface-mount crystal oscillator is hermetically sealed in an inert atmosphere with glass-to-metal seals on leads, providing high reliability. The HC49/4HSMX model operates at 13.0MHz with a frequency tolerance of +30.00ppm at 25°C, and features a stable frequency over -20°C to 70°C. Its lead wires are mounted onto a plastic former for gull wing mounting, ensuring ease of assembly. Designed for high precision applications, it offers low drive level, excellent shock and vibration resistance, and complies with RoHS and REACH standards for eco-friendly manufacturing.
IQD FREQUENCY PRODUCTS LFXTAL055382 Quartz Crystal Specifications:
- Frequency: 13.0MHz
- Frequency Tolerance: +30.00ppm @ 25°C
- Frequency Stability: +50.00ppm over -20°C to 70°C
- Operating Temperature Range: -20°C to 70°C
- Overtone: Fundamental
- Ageing: +5ppm per year @ 25°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500µW max
- Equivalent Series Resistance (ESR): 40.000 max
- Packaging: Reel, tape & reel in accordance with EIA-481-D
- Pack Size: 1,000 units
- Outline Dimensions: 11.4+0.2 mm
- Package Height Options: up to 4.3 mm
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30 mins in 3 planes
- Storage Temperature Range: -55°C to 125°C
- Compliance: RoHS, REACH, MSL rating
- Solder Pad Layout: Provided

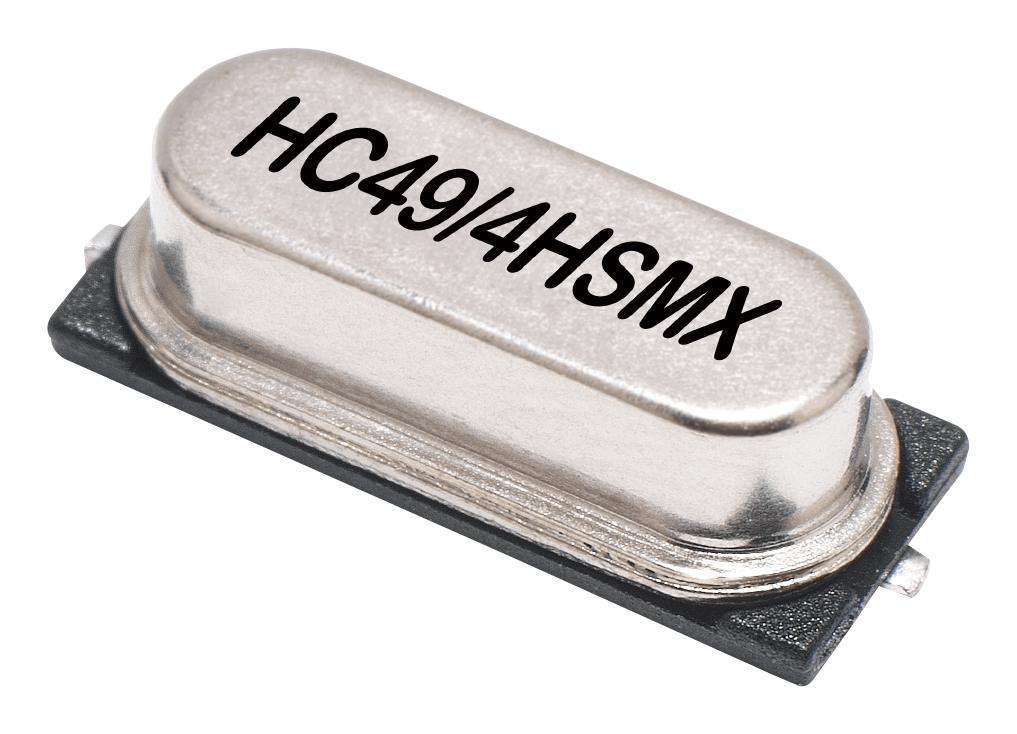

Buy the Buy IQD Frequency Products HC49/4HSMX Part Number LFXTAL055382 Online
Purchase the high-quality IUQD Frequency Products HC49/4HSMX crystal oscillator online for reliable performance in your electronic circuits. This hermetically sealed SMD crystal operates at 13.0MHz with tight frequency tolerance and excellent stability across temperatures. It features gull wing leads for easy PCB mounting and complies with RoHS and REACH standards, ensuring safe, environmentally friendly manufacturing. Ideal for applications requiring high precision, low aging, and resistance to shock and vibration. Order now for fast delivery and consistent quality.
Get IQD Frequency Products HC49/4HSMX today—built for high reliability, precise frequency stability, and resistance to shock and vibration.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL055382?
You can click on the BUY or RFQ button to purchase LFXTAL055382 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL055382?
You can download the LFXTAL055382 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL055382?
IQD FREQUENCY PRODUCTS
