IQD FREQUENCY PRODUCTS LFXTAL055595 Crystal Oscillator
The LEXTALO55595CUTT is a standard 3.2 x 2.5mm SMD crystal with a frequency of 32.0MHz, offering excellent stability and low tolerance. It operates from -20°C to 70°C in fundamental overtone mode, with a load capacitance of 10.00pF and ESR of 600Ω max. Designed for surface-mount applications, it complies with RoHS and REACh standards and is packaged on tape cut from a reel, ensuring efficient assembly in high-reliability electronic devices and precision timing circuits.
IQD FREQUENCY PRODUCTS LFXTAL055595 Crystal Oscillator Specifications:
- Frequency: 32.0MHz
- Frequency Tolerance: ±10.00ppm at 25°C
- Frequency Stability: ±10.00ppm per year
- Operating Temperature Range: -20°C to 70°C
- Overtone Order: Fundamental
- Ageing: +5ppm max per year @ 25°C
- Load Capacitance: 10.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 1004μW max
- Equivalent Series Resistance (ESR): 600Ω max
- Shock Resistance: 1000G, MIL-STD-202F, Method 213B
- Vibration Resistance: 20G, MIL-STD-202F, Method 204D
- Storage Temperature Range: -55°C to 125°C
- Packaging: Cut tape from reel, suitable for automated assembly

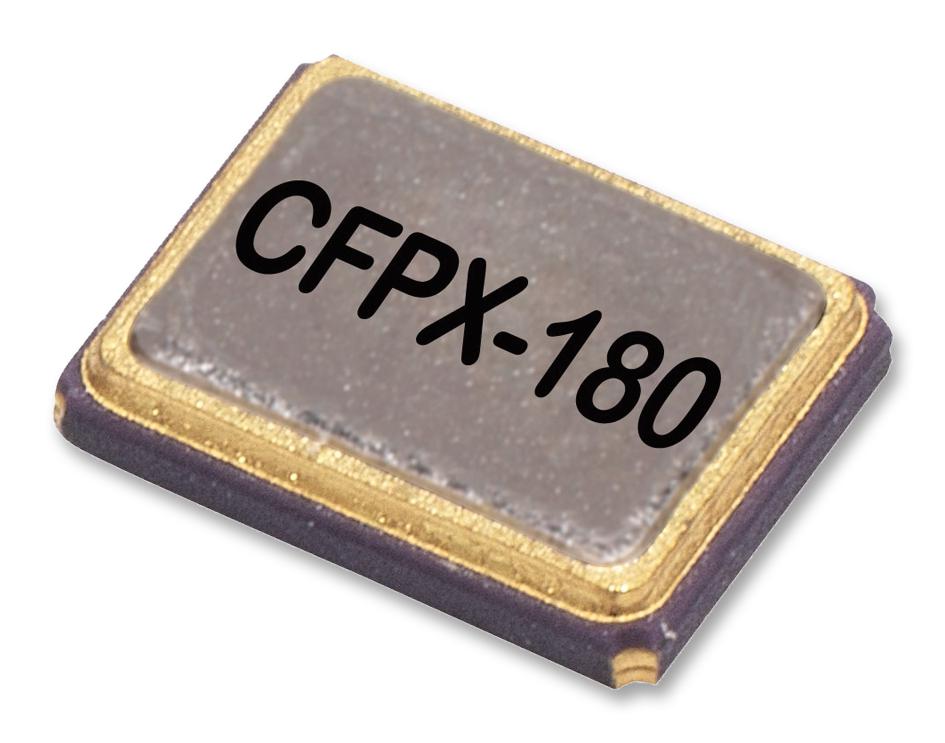

Buy the IQD Series CFPX Crystal: LEXTALO55595CUTT
Purchase the IQD series CFPX crystal LEXTALO55595CUTT online today to ensure your electronic projects benefit from high stability, low tolerance, and RoHS compliance. Perfect for embedded systems, timing circuits, and high-reliability applications, this 3.2x2.5mm SMD crystal offers excellent performance across a wide temperature range. Packaged on cut tape for easy automated placement, it guarantees long-lasting durability and precision operation. Enhance your electronic designs today with this reliable, high-quality crystal from IQD Frequency Products.
Get IQD series CFPX crystal LEXTALO55595CUTT today—designed for high stability and reliable performance in precision timing applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL055595?
You can click on the BUY or RFQ button to purchase LFXTAL055595 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL055595?
You can download the LFXTAL055595 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL055595?
IQD FREQUENCY PRODUCTS
