IQD FREQUENCY PRODUCTS LFXTAL055951 Quartz Crystal

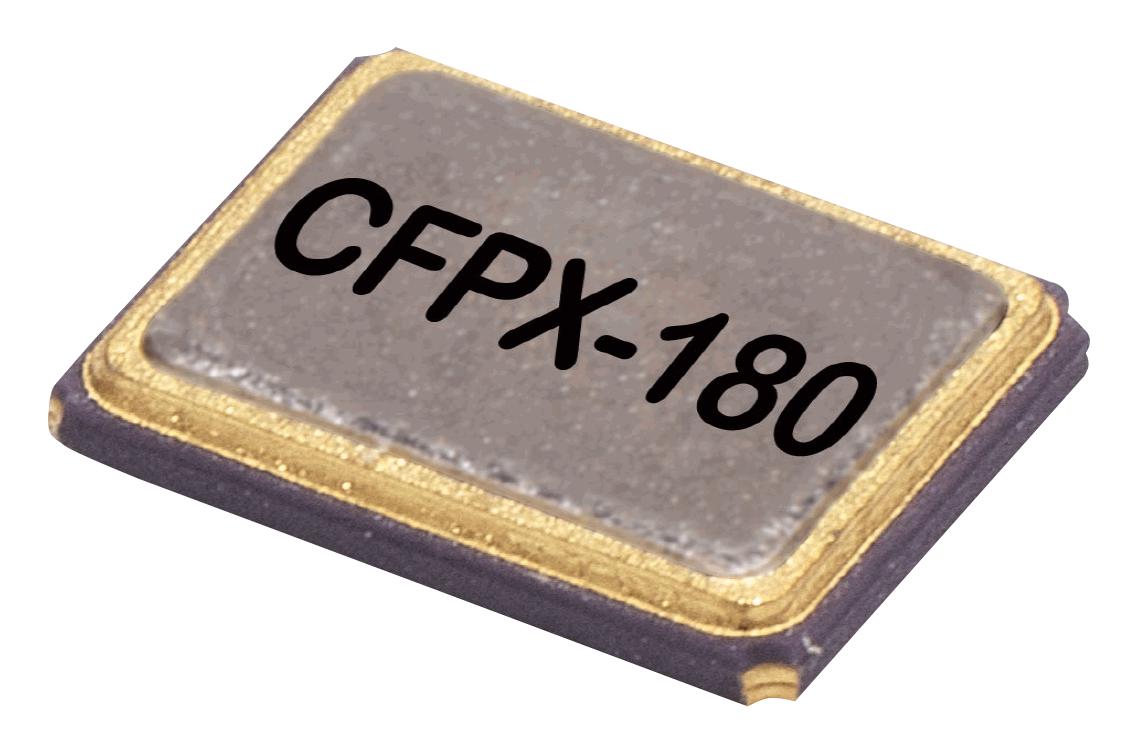

This hermetically sealed 3.2 x 2.5mm SMD quartz crystal features a ceramic package with a seam sealed metal lid, ideal for high-reliability applications. Operating at 16.0MHz, it offers a frequency tolerance of +20.00ppm at 25°C and stability of +30.00ppm, with a total operating temperature range from -40°C to 85°C. Suitable for precise timing in electronic devices, it includes 18.00pF load capacitance and 7pF shunt capacitance, with a drive level of 1004W and ESR up to 70Ω. Compliant with RoHS and REACh, it comes in a reel packaging of 1,000 units.
IQD FREQUENCY PRODUCTS LFXTAL055951 Quartz Crystal Specifications:
- Frequency: 16.0MHz
- Frequency Tolerance: +20.00ppm @ 25°C
- Frequency Stability: +30.00ppm
- Operating Temperature Range: -40°C to 85°C
- Overtone Order: Fundamental
- Ageing: +5ppm max per year @ 25°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 1004W
- ESR: 70Ω max
- Storage Temperature Range: -55°C to 125°C
- Shock resistance: 1000G, 0.5ms, MIL-STD-202F Method 213B
- Vibration resistance: 20G, 10Hz-2000Hz, 12hr total, MIL-STD-202F Method 204D
- Package: Reel, Pack size: 1,000 units
- Package dimensions: 3.4mm max height, 2.7mm max width
- Certifications: RoHS compliant, REACh compliant
- Packaging: Tape & reel per IEC-481-D, alternative packaging available
Buy the IQD Frequency LFXTAL055951 – Reliable Quartz Crystal for Industrial Applications
Order the IQD Frequency LFXTAL055951 quartz crystal online and experience reliable performance with high accuracy at 16.0MHz. Compact and hermetically sealed, this SMD crystal ensures stability over wide temperature ranges and meets RoHS and REACh standards. Perfect for high-reliability industrial and electronic applications, it comes in a reel of 1,000 units, allowing easy bulk purchase. Designed for surface-mount assembly, it provides consistent oscillation stability, long-term performance, and compliance with industry standards, making it an ideal choice for modern electronic devices and systems.
Get IQD Frequency LFXTAL055951 today—built for precision and long-lasting durability in electronic timing solutions.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL055951?
You can click on the BUY or RFQ button to purchase LFXTAL055951 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL055951?
You can download the LFXTAL055951 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL055951?
IQD FREQUENCY PRODUCTS
