IQD FREQUENCY PRODUCTS LFXTAL055998 Automotive Crystal Oscillator

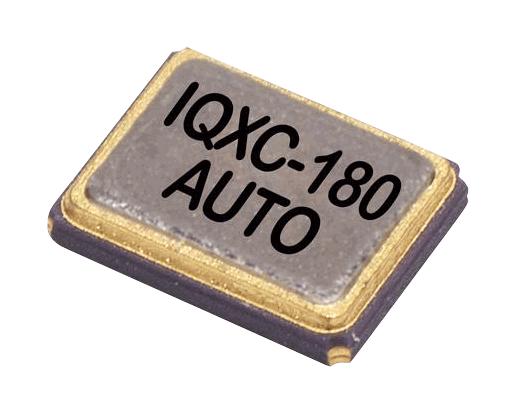

The 1QXC-180 AUTO is a ceramic packaged crystal oscillator designed for automotive applications, featuring hermetically sealed metal lids, qualified to AEC-Q200 standards, and available with TS 16949 certification. It operates within a frequency range of 11.0MHz to 150.0MHz, offering high stability, low drive levels, and suitable load capacitance, making it ideal for precision timing in automotive electronics. Its robust construction ensures reliable performance across a broad temperature range and environmental conditions, compliant with RoHS and REACH standards for environmentally responsible manufacturing.
IQD FREQUENCY PRODUCTS LFXTAL055998 Automotive Crystal Oscillator Specifications:
- Frequency Range: 11.0MHz to 150.0MHz
- Frequency Tolerance: +10.00ppm to +50.00ppm
- Frequency Stability: +15.00ppm to +150.00ppm
- Temperature Range: -40°C to 125°C
- Load Capacitance: 8.0pF to 75.0pF
- Shunt Capacitance: 7pF max
- Drive Level: 50µW standard, 200µW max
- Outline Dimensions: length approximately 3.24mm, width 2.54mm
- Storage Temperature Range: -45°C to +130°C
- Maximum Process Temperature: 260°C for 10 seconds
- RoHS and REACh compliant
- Qualified to AEC-Q200
- Packaging Options: Bulk, Reel Tape, or Cutt Tape
Buy the Buy IQD Crystal Part Number LFXTAL055998 Online
Purchase the automotive-grade crystal oscillator online today and experience exceptional timing stability, robust construction, and compliance with industry standards. Designed for high reliability in automotive environments, it features hermetically sealed ceramic packaging, suitable for a wide temperature range, and is qualified to AEC-Q200 standards. Available with various packaging options, it offers low drive levels and broad frequency coverage, making it an ideal choice for automotive electronics and precision timing applications. Order now to ensure dependable performance in your automotive system.
Buy IQD Crystal LFXTAL055998 now and ensure precise, automotive-grade timing with reliable hermetic sealing and high stability.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL055998?
You can click on the BUY or RFQ button to purchase LFXTAL055998 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL055998?
You can download the LFXTAL055998 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL055998?
IQD FREQUENCY PRODUCTS
