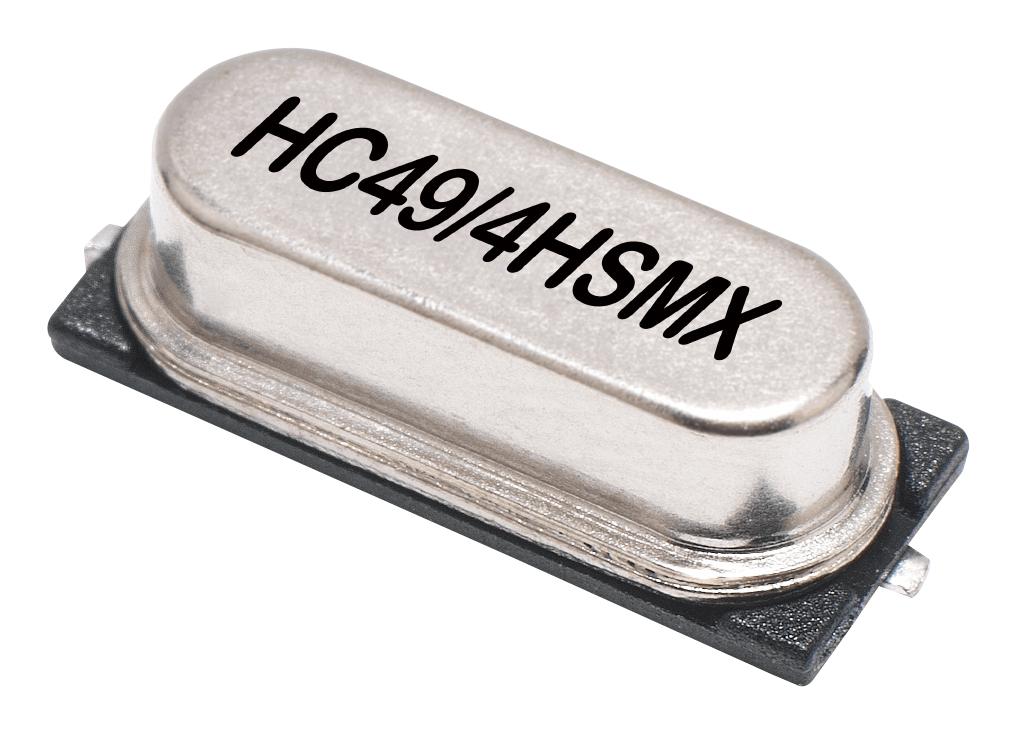

IQD FREQUENCY PRODUCTS LFXTAL058154 Quartz Crystal
This low profile SMD crystal features resistance welding and hermetic sealing in an inert atmosphere, ensuring durability and reliability. It is glass-to-metal sealed with lead wires mounted on a plastic former for gullwing mounting. Operating between -40°C and 85°C, it offers a frequency of 8.0MHz with tolerance of ±30ppm at 25°C. The crystal has a load capacitance of 18pF, shunt capacitance of 7pF, drive level of 500μW, and an ESR of 40Ω max. It is compliant with RoHS and REACh standards, packaged in reels of 1,000 units, suitable for precise timing applications.
IQD FREQUENCY PRODUCTS LFXTAL058154 Quartz Crystal Specifications:
- Frequency: 8.0MHz
- Frequency Tolerance: ±30ppm at 25°C
- Frequency Stability: ±30ppm
- Temperature Range: -40°C to 85°C
- Load Capacitance: 18pF
- Shunt Capacitance: 7pF max
- Drive Level: 500μW
- ESR: 40Ω max
- Package Height Options: HC49/4HSMX 4.3mm max, HC49/3.5HSMX 3.7mm max, HC49/3HSMX 3.1mm max, HC49/2.5HSMX 2.85mm max
- Outline Dimensions: 41.4mm x 0.2mm, solder pad layout detailed in datasheet
- Environmental Resistance: Shock 981m/s², vibration 10Hz-60Hz and 60Hz-500Hz, storage -55°C to 125°C
- Packaging: Reel, 1,000 units per pack, compliant with EIA-481-D, alternative packaging available
- Certifications: RoHS, REACh, MSL Rating: Not applicable
Buy the IQD Series HC49 8MHz Crystal: LFXTAL058154
Purchase the IQD HC49 Series 8MHz crystal online today for superior accuracy and reliable performance. Designed with hermetic sealing and rugged construction to endure harsh environments, this crystal ensures precise timing for your electronic projects. Its low profile gullwing design facilitates easy mounting, making it perfect for space-constrained applications. RoHS compliant and packaged in durable reels for convenient handling, it guarantees quality and consistency. Elevate your electronic device performance by ordering this high-quality crystal now to ensure stable, long-term operation in your designs.
Get IQD HC49 8MHz crystal today—built for precision and long-lasting durability, ideal for reliable timing in electronic applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL058154?
You can click on the BUY or RFQ button to purchase LFXTAL058154 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL058154?
You can download the LFXTAL058154 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL058154?
IQD FREQUENCY PRODUCTS
