IQD FREQUENCY PRODUCTS LFXTAL059575 Quartz Crystal

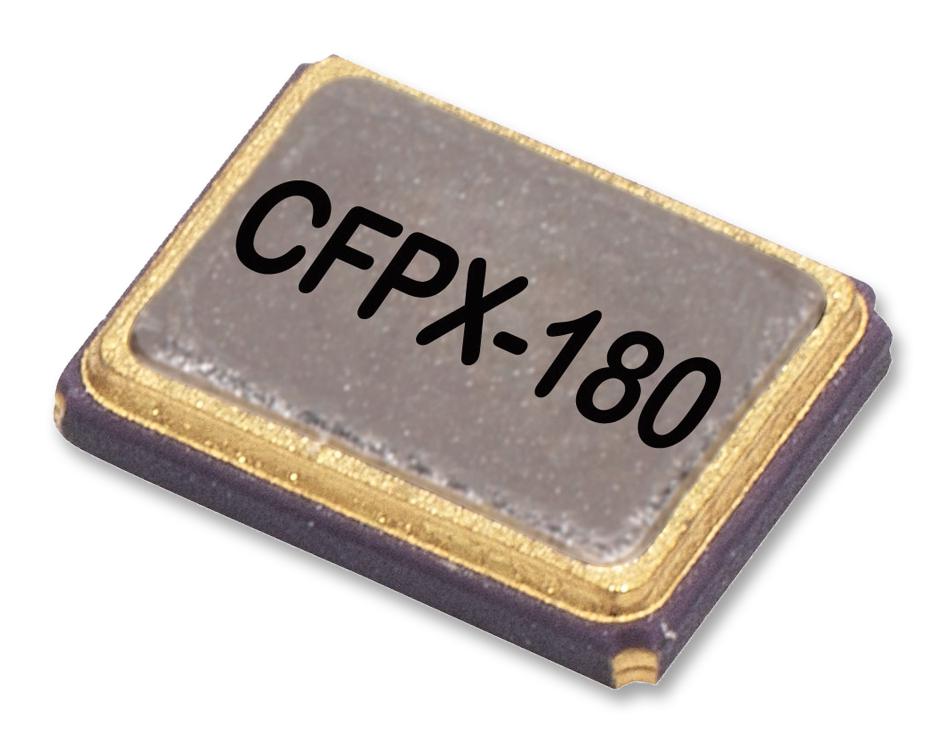

This quartz crystal is a standard 3.2 x 2.5mm SMD component housed in a hermetically sealed ceramic package with a seam sealed metal lid. It operates at 24.5760MHz frequency with a tolerance of ±20ppm at 25°C, and a stability of ±30ppm. Suitable for applications requiring precise timing, it features a load capacitance of 18.00pF, shunt capacitance of 7pF, and a drive level of 1004W max. It withstands harsh environments with shock resistance of 1000G and vibration resilience, making it ideal for reliable industrial and electronics use.
IQD FREQUENCY PRODUCTS LFXTAL059575 Quartz Crystal Specifications:
- Frequency: 24.5760MHz
- Frequency Tolerance: ±20ppm @25°C
- Frequency Stability: ±30ppm
- Operating Temperature Range: -40°C to 85°C
- Ageing: ±5ppm per year @ 25°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 1004W max
- ESR: 50.000 max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms (MIL-STD-202F, Method 213B)
- Vibration Resistance: 20G, 10Hz-2000Hz for 12 hours (MIL-STD-202F, Method 204D)
- Terminations: RoHS compliant NiAu solderable finish at 260°C for 10s
- Packaging: Reel, 1000 units per reel
- Outline Dimensions: 3.2 x 2.5mm, max height 4mm
- Reflow Temp: 260°C
- Compliance: RoHS, REACh, MSL Rating: Not applicable
Buy the ElaD Series Quartz Crystal: LFXTAL059575
Experience reliable performance with this high-grade quartz crystal designed for precision timing applications. Featuring a 24.5760MHz frequency, hermetically sealed ceramic package, and excellent shock and vibration resistance, it meets strict industry standards including RoHS and REACh compliance. Its stable frequency, low aging rate, and durable construction make it ideal for industrial, consumer, and communication electronics. Purchase this reliable component online today to ensure your projects achieve optimal timing accuracy and long-term reliability.
Get ElaD quartz crystal LFXTAL059575 today—built for precision and long-lasting durability in your electronic designs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL059575?
You can click on the BUY or RFQ button to purchase LFXTAL059575 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL059575?
You can download the LFXTAL059575 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL059575?
IQD FREQUENCY PRODUCTS
