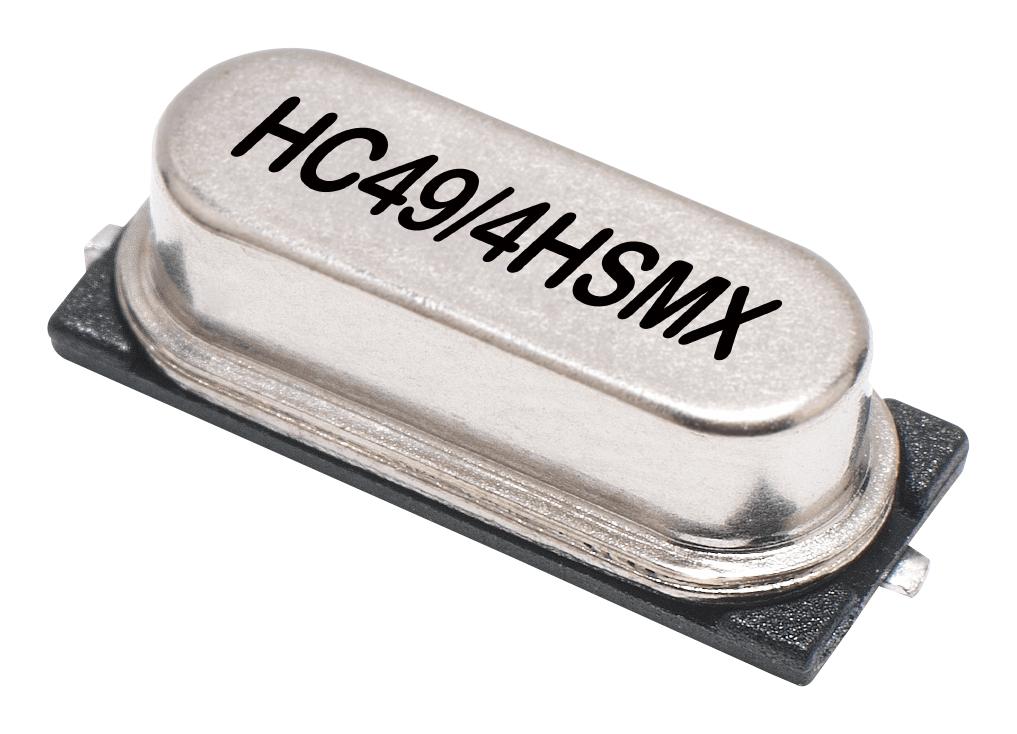

IQD FREQUENCY PRODUCTS LFXTAL059980 Surface Mount Crystal
This industry-standard SMD crystal operates at 27.0MHz with a frequency tolerance of +20.00ppm and stability of +50.00ppm. Hermetically sealed in an inert atmosphere with glass-to-metal seals, it features resistance-welded leads mounted on a plastic former, suitable for surface-mount applications. Designed for reliable performance across -20°C to 70°C, it offers a load capacitance of 18pF, shunt capacitance max 7pF, drive level max 500μW, and ESR max 40Ω. Packaged in reel form with 1,000 units, compliant with RoHS and REACH standards, ensuring environmentally friendly manufacturing and high-quality performance in electronic circuits.
IQD FREQUENCY PRODUCTS LFXTAL059980 Surface Mount Crystal Specifications:
- Frequency: 27.0MHz
- Frequency Tolerance: +20.00ppm
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Load Capacitance (CL): 18pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 500μW max
- ESR: 40Ω max
- Shock: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes
- Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30mins in 3 planes
- Package Height Options: 4.3mm, 3.7mm, 3.1mm, 2.85mm
- Package Type: SMD, Reel containing 1,000 units
- Compliance: RoHS and REACH compliant
- Packaging: Reel, Tape & reel according to IEC-481-D
Buy the Brand PartNumber – Reliable Frequency Control for Industrial Applications
Order the IQD Frequency Products LFXTAL059980 crystal online today for high precision timing in your electronic designs. This 27MHz surface-mount crystal offers excellent frequency stability and environmental resistance, making it ideal for industrial, communications, and consumer electronics. Packaged in reels of 1,000 units, it complies with RoHS and REACH standards, ensuring environmentally friendly manufacturing. Easy to install, it guarantees reliable operation under varying temperature and vibration conditions, supporting your high-performance application needs seamlessly.
Buy IQD Frequency Products LFXTAL059980 now and experience unmatched reliability and stability in your timing and oscillation requirements.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL059980?
You can click on the BUY or RFQ button to purchase LFXTAL059980 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL059980?
You can download the LFXTAL059980 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL059980?
IQD FREQUENCY PRODUCTS
