IQD FREQUENCY PRODUCTS LFXTAL060103 Quartz Crystal

Name: LFXTAL060103 - Electronic Component
Brand: IQD FREQUENCY PRODUCTS
SKU: LFXTAL060103
Availability: InStock
Rating: 5.0 (1 reviews)

High-precision low profile SMD crystal suitable for space-constrained electronic applications. Hermetically sealed in inert atmosphere with glass-to-metal seals, ensuring stability and reliability. Features gull wing mount leads mounted on a plastic former for easy soldering. Operating at 16.0MHz with ±30ppm frequency tolerance at 25°C, it offers excellent frequency stability across -40°C to 85°C. Designed for vibration and shock resistance, meeting RoHS compliance. Packaged in reel format with optional packaging, ideal for automated assembly processes in modern electronic manufacturing.

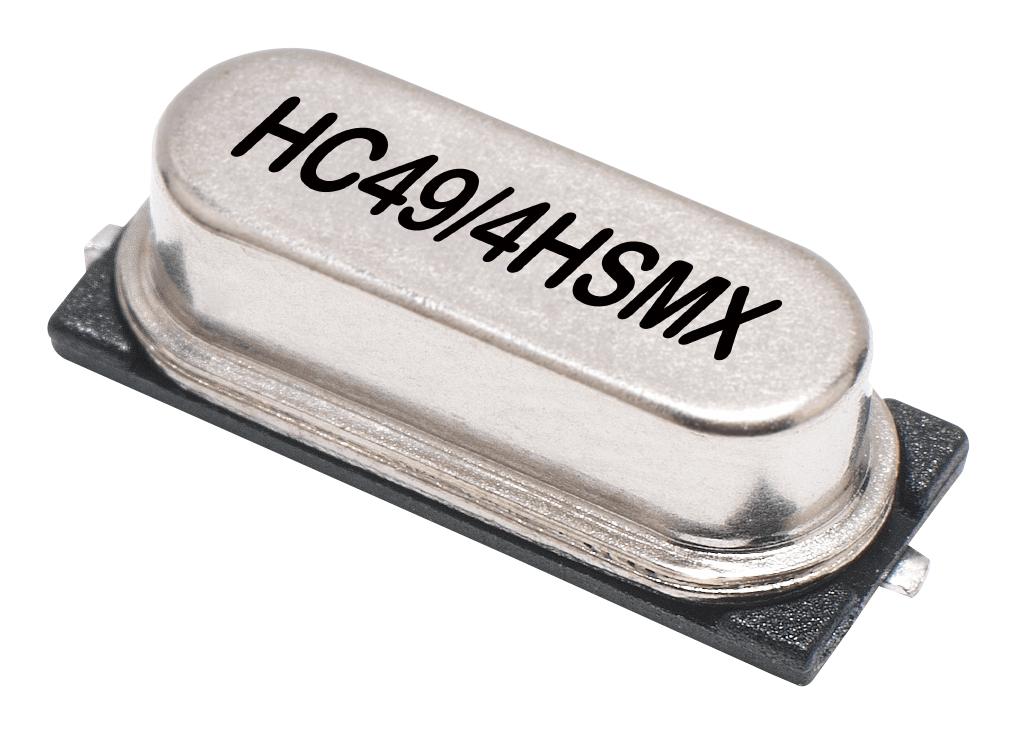

Buy IQD Frequency Products Quartz Crystal Part Number LFXTAL060103 Online

View LFXTAL060103Datasheet [pdf]

IQD FREQUENCY PRODUCTS LFXTAL060103 Quartz Crystal Specifications:

Frequency: 16.0MHz
Frequency Tolerance: +30.00ppm at 25°C, -40°C to 85°C temperature range
Overtone: Fundamental
Ageing: +5ppm per year at 25°C
Load Capacitance: 18.00pF
Shunt Capacitance: 7pF max
Drive Level: 500uW max
ESR: 40.000 max
Package Height Options: HC4S/4HSMX 4.3mm max, HC49/3.5HSMX 3.7mm max, HC49/3HSMX 3.1mm max, HC49/2.5HSMX 2.85mm max
Outline Dimension: 11.4+0.2 mm
Shock Resistance: 981m/s², 6ms, three times in each of three planes
Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1m/s², 30mins in three planes
Storage Temperature Range: -55°C to 125°C
Packaging: Reel, 1,000 units, compliant with EIA-481-D, optional alternative packing
RoHS and REACh approved, MSL Rating: Not Applicable

Buy the Buy IQD Frequency Products Quartz Crystal Part Number LFXTAL060103 Online

Enhance your electronic designs with the IQD Frequency Products Quartz Crystal. This 16MHz low profile SMD component features hermetic sealing and gull wing leads for easy assembly. It offers excellent frequency stability across -40°C to 85°C, shock and vibration resistance, RoHS compliance, and reliable long-term ageing performance. Packaged in reels for automated manufacturing, it is perfect for modern electronic applications requiring precise timing, stability, and space-saving design. Trust IQD for quality components that meet industrial standards and ensure project success.

Order your IQD Frequency Products SeriesLFXTAL060103 crystal today and ensure your electronic projects have the high stability and reliable performance they need.
