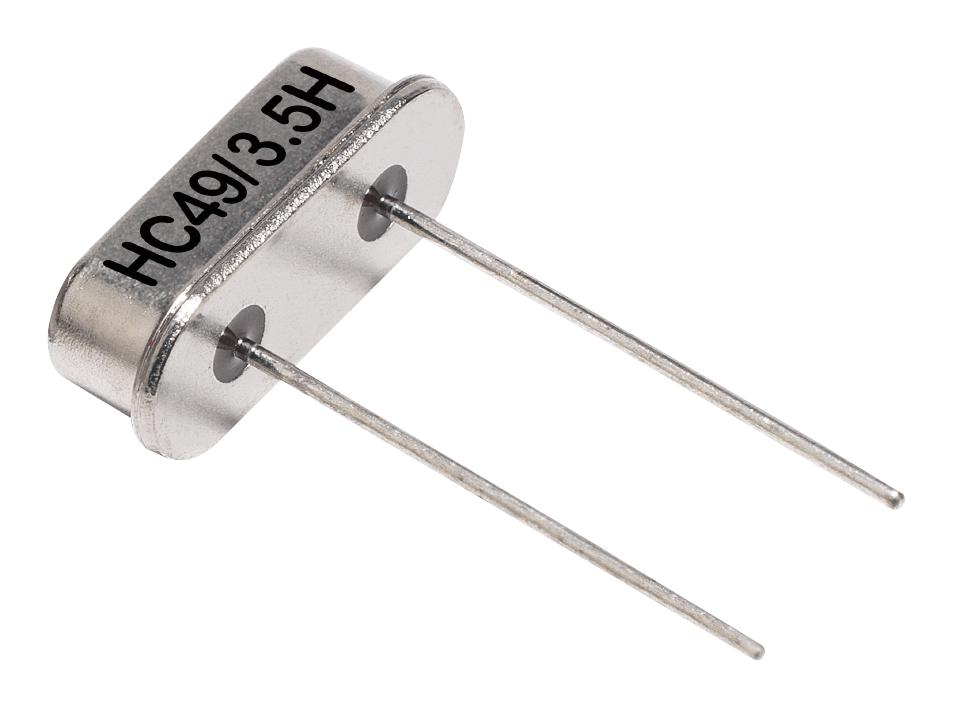

IQD-Frequency-Products LFXTAL060602 Quartz Crystal Oscillator
This quartz crystal features an industry-standard leaded package with resistance welding and hermetically sealed glass-to-metal seals for reliable performance. Designed for oscillator applications, it operates at 8.0MHz with a frequency tolerance of +20.00ppm and a stability of +50.00ppm. The crystal supports an operating temperature range from -20°C to 70°C and offers a load capacitance of 18.00pF with a maximum ESR of 40.000. Packaged in reels with 1,000 units, it complies with RoHS and REACh standards, ensuring environmental safety and high durability for industrial and communication equipment.
IQD-Frequency-Products LFXTAL060602 Quartz Crystal Oscillator Specifications:
- Frequency: 8.0MHz with tolerance +20.00ppm and stability +50.00ppm
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- Equivalent Series Resistance: 40.000 max
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Shock: 981m/s², 6ms, 3 times per perpendicular plane
- Vibration: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, Gs, 98.1m/s², 30 mins per plane
- Packaging: Reel tape & reel in accordance with EIA-468-C, pack size 1,000 units
- RoHS and REACh compliant
- Part No.: LFXTAL060602
Buy the IQD Frequency Products LFXTAL060602 – Reliable Quartz Crystal for Industrial Applications
Purchase the IQD quartz crystal oscillator LFXTAL060602 online today to benefit from its high stability, reliable hermetic sealing, and industry-standard leaded package. Designed for precision timing in industrial, communication, and electronic applications, this 8MHz crystal operates within a wide temperature range of -20°C to 70°C, ensuring dependable performance in harsh environments. Packaged in reels of 1,000 units, it complies with environmental standards like RoHS and REACh. Secure your supply now and enhance your project’s timing accuracy with this durable, high-quality crystal.
Order your IQD Series LFXTAL060602 quartz crystal today and ensure stable, high-precision oscillation for your industrial and communication projects.
Frequently Asked Questions
Where can I buy IQD-Frequency-Products LFXTAL060602?
You can click on the BUY or RFQ button to purchase LFXTAL060602 from an authorized IQD-Frequency-Products distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL060602?
You can download the LFXTAL060602 datasheet or visit the IQD-Frequency-Products website for support.
Who is the manufacturer of LFXTAL060602?
IQD-Frequency-Products
