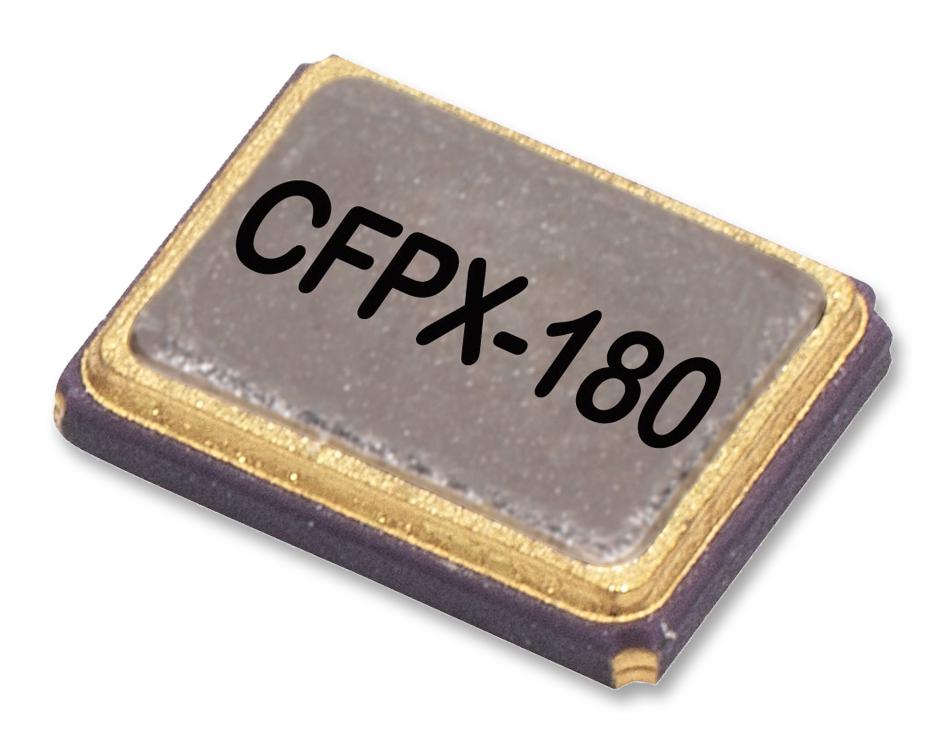

IQD FREQUENCY PRODUCTS LFXTAL061648 Quartz Crystal
This quartz crystal is a standard 3.2 x 2.5mm SMD component housed in a hermetically sealed ceramic package with a seam-sealed metal lid, ensuring reliable operation across a wide temperature range. It offers a frequency of 12.2880MHz, with a frequency tolerance of +20.00ppm at 25°C and a stability of +30.00ppm. Designed for surface-mount applications, it features a load capacitance of 12.00pF, low ESR, and is compliant with RoHS and REACH standards. It withstands shock up to 1000G and vibration testing, making it suitable for demanding electronic and industrial environments.
IQD FREQUENCY PRODUCTS LFXTAL061648 Quartz Crystal Specifications:
- Frequency: 12.2880MHz
- Frequency Tolerance: +20.00ppm @ 25°C
- Frequency Stability: +30.00ppm
- Operating Temperature Range: -40.00 to 85.00°C
- Storage Temperature Range: -55 to 125°C
- Load Capacitance: 12.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 1004W max
- ESR: 120.000 max
- Outline Dimensions: 3.2 x 2.5mm
- Solder Pad Layout: 4 pads (Crystal, GND & Lid)
- RoHS compliant, Reflow temperature 260°C for 10s, Tape & reel packaging with 1000 units per reel.
- Shock Resistance: 1000G, 0.5ms MIL-STD-202F, Method 213B
- Vibration Resistance: 20G, 10Hz-2000Hz, 12hrs total
- Packaging: Reel with tape according to ElA-481-D standards
- Terminations: NiAu, RoHS compliant
- Reflow Temp: 260°C for 10 seconds
Buy the IQD Quartz Crystal – Reliable 12.2880MHz for Industrial Applications
Secure your order for the reliable quartz crystal in a hermetically sealed package, featuring 12.2880MHz frequency, high stability, and RoHS compliance. Designed for surface-mount applications, it withstands shock and vibration tests, making it ideal for industrial, communication, and precision timing solutions. The compact 3.2 x 2.5mm size along with low ESR and precise load capacitance ensure optimal performance in demanding environments. Purchase online today and ensure your electronic projects benefit from industrial-grade reliability and accuracy.
Buy IQD quartz crystal LFXTAL061648 now and experience unmatched reliability and precision timing for industrial electronics and demanding applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL061648?
You can click on the BUY or RFQ button to purchase LFXTAL061648 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL061648?
You can download the LFXTAL061648 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL061648?
IQD FREQUENCY PRODUCTS
