IQD FREQUENCY PRODUCTS LFXTAL062461 Quartz Crystal

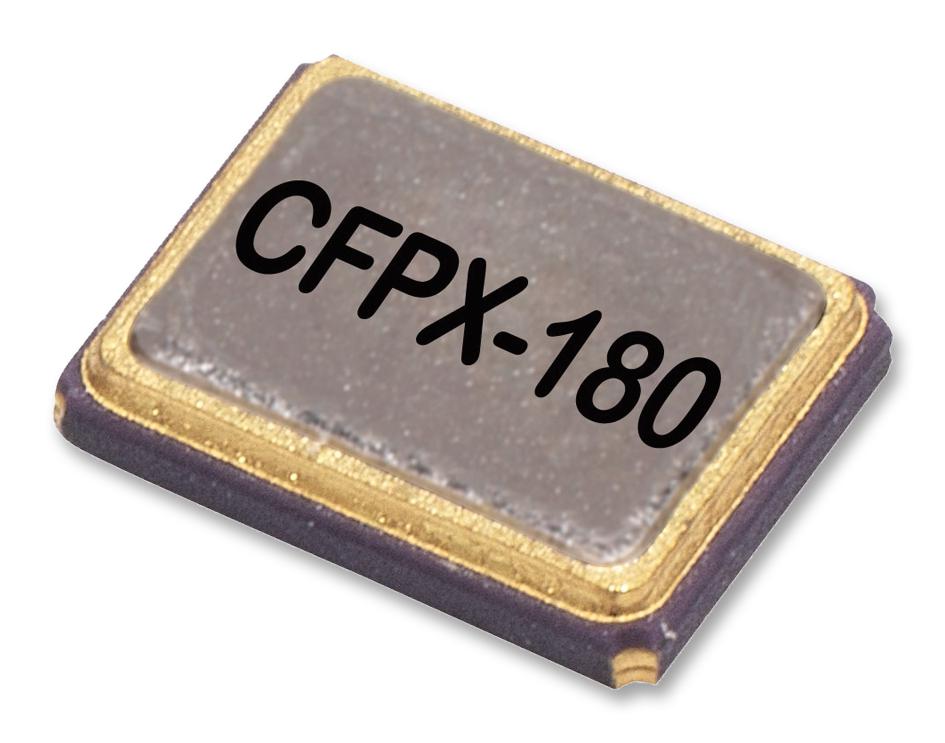

This quartz crystal is a hermetically sealed SMD component measuring 3.2 x 2.5mm, housed in a ceramic package with a seam-sealed metal lid. It offers a frequency of 27.120MHz, with a tolerance of ±10.00ppm at 25°C, and frequency stability of +20.00ppm. Designed for reliable performance, it operates across a temperature range of -40°C to +85°C, with a fundamental overtone. Its electrical parameters include a load capacitance of 10.00pF, shunt capacitance up to 7pF, and ESR max of 50Ω, making it ideal for precision electronic applications.
IQD FREQUENCY PRODUCTS LFXTAL062461 Quartz Crystal Specifications:
- Frequency: 27.120MHz
- Frequency Tolerance: ±10.00ppm @ 25°C
- Frequency Stability: +20.00ppm
- Operating Temperature Range: -40°C to +85°C
- Overtone: Fundamental
- Ageing: Max 5ppm per year @ 25°C
- Load Capacitance (CL): 10.00pF
- Shunt Capacitance (CO): Max 7pF
- Drive Level: 1004W max
- ESR: Max 50Ω
- Storage Temperature Range: -55°C to 125°C
- Shock: 1000G, 0.5ms, MIL-STD-202F, Method 213B
- Vibration: 20G, 10Hz-2000Hz, in 3 axes (12hrs total), MIL-STD-202F, Method 204D
- Package Style: Reel, 1,000 pcs per reel
- Termination: RoHS compliant NiAu, RoHS Reflow Temp 260°C for 10s
- Outline Dimensions: Max 34mm
- Solder Pad Layout: As per datasheet with GND and crystal connections
- Compliance: RoHS, REACh, MSL rating JDEC-STD-033
Buy the IQD Frequency LLC 062461 – Reliable Quartz Crystal for Industrial Applications
Order the IQD Frequency LLC 062461 quartz crystal online today—engineered for precise frequency stability, wide temperature range, and reliable performance. Its hermetically sealed ceramic package with a seam-sealed metal lid ensures durability and consistent operation in industrial applications. Ideal for oscillators, timing circuits, and communication equipment, this crystal offers a stable 27.120MHz frequency with ±10.00ppm tolerance at 25°C, a max ESR of 50Ω, and is compliant with RoHS standards. Purchase now for quality and dependability in your electronic projects.
Get IQD Frequency LLC 062461 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL062461?
You can click on the BUY or RFQ button to purchase LFXTAL062461 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL062461?
You can download the LFXTAL062461 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL062461?
IQD FREQUENCY PRODUCTS
